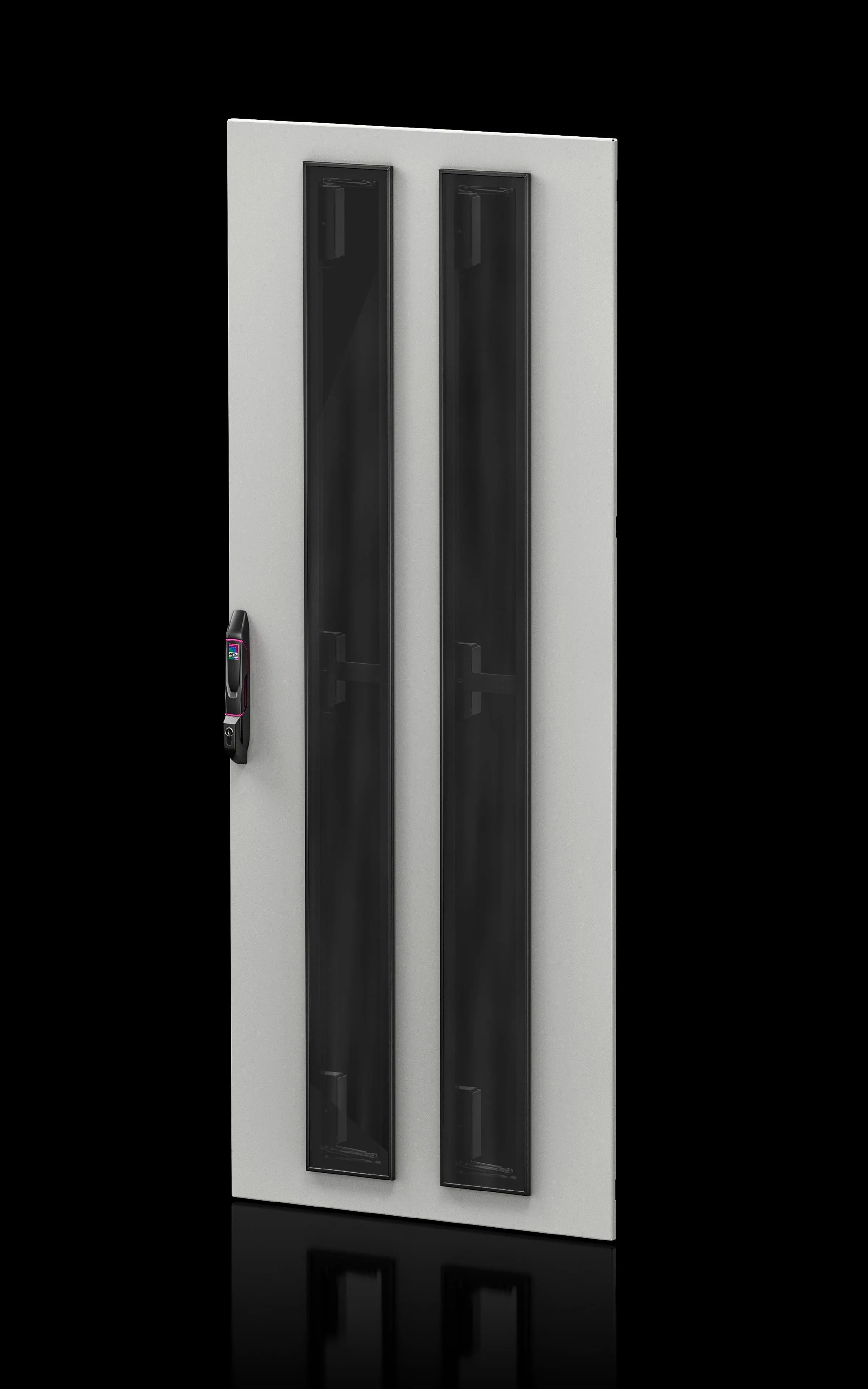

Rittal VX_IT 7030.273 Door - Vent Valve Auto-Open
Part Number: 7030273
Quick Summary
Rittal VX_IT 7030.273 is a glazed and sheet steel door designed for automatic door opening systems in electrical enclosures. Engineers often struggle with ensuring reliable remote control and fail-safe operation during alarms or power loss. Key considerations include IP 20 protection for vent flaps and standardized classifications such as ETIM EC000261 and ECLASS 8.0 27180101, supporting EU procurement standards. The door integrates seamlessly with the CMC III control module, enabling remote monitoring and automated opening while maintaining security. In practice, this translates to reduced response times, safer evacuations, and lower life-cycle costs for service and maintenance.
Product Information
Extended Description
7030273 Rittal: VX IT sheet steel door (ADO), WxH 800x2000, RAL7035, 2x single-pane safety glass, foil
Article number
VX_IT 7030.273
Design
Viewing panels: Single-pane safety glass, tinted | Spring damper for flap opening | Magnets for fixing the flaps | Valves are open at zero current | With sheet steel door | one-part, with vent flaps | Frame: Sheet steel
Product description
With integral vent valves for automated opening function in the event of an alarm or power failure. The glazed door for the Automatic Door Opening System replaces the standard VX IT door.
Benefits
Supports remote control via the CMC III system
Technical specifications
External projection of the vent flap: 200 mm (when opened)
Function principle
Activation via CMC III door control module (DCM)
Material
Frame: Sheet steel | Viewing panels: Single-pane safety glass, tinted
Colour
RAL 7035
Supply includes
Door with comfort handle for semi-cylinders with security lock 3524 E
With DC
0.78 A
Dimensions
Width:Â 800 mm | Height:Â 2,000 mm
IP protection category to IEC 60 529
IP 20 for solid vent flaps
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177925915
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX IT sheet steel door (ADO), WxH 800x2000, RAL7035, 2x single-pane safety glass, foil
Vent valves are integrated to enable automatic opening during alarm or power failure, improving safety and response times in electrical cabinets and data centers. This feature reduces manual intervention and supports safer evacuations, especially in critical infrastructure environments where downtime is costly. The glass viewing panels provide clear visibility for operators without compromising enclosure integrity, enabling quick status checks and error identification while maintaining security. The frame and finish use sheet steel with a RAL 7035 coating, delivering robust mechanical protection, easier integration with existing color schemes, and reduced corrosion risk in industrial settings. Compatibility with the CMC III door control module means remote operation and centralized monitoring, reducing on-site visits and enabling smarter maintenance scheduling. The door’s energy profile lists 0.78 A current draw, contributing to energy-efficient installations and predictable power budgeting for large-panel enclosures. With dimensions of 800 x 2000 mm and IP 20 protection for vent flaps, the unit fits common cabinet footprints while maintaining operator safety and enclosure integrity. The supply includes a comfort handle and a security lock (3524 E), simplifying installation and improving operational security from the outset.
Get a Quick Quote for a Rittal 7030273
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030273?
Enquire Now
FAQs
When installing the VX_IT 7030.273, ensure compatibility with the CMC III door control module and use the supplied comfort handle with security lock 3524 E. The door frame is sheet steel and designed for 800 x 2000 mm openings; verify mounting points align with enclosure standards and verify vent flap clearances to achieve the 200 mm projection when opened.
Key specs include integrated vent valves for automated opening, with vents opening at zero current, and a current draw of 0.78 A. The external vent flap projection is 200 mm when opened, ensuring rapid access. The system can be controlled via the CMC III module, enabling remote operation and faster risk mitigation during alarms or power loss.
Yes. The combination of 800 x 2000 mm dimensions, RAL 7035 finish, and two tinted single-pane safety glass viewing panels provides visibility and protection for critical enclosures. IP 20 protection on vent flaps adds basic ingress protection for solid particulates, while CMC III compatibility supports remote monitoring and automation in data centers and industrial control cabinets.
The data specifies IP protection (IP 20 for vent flaps) and industry classifications such as ETIM EC000261 and ECLASS 8.0 27180101. While CE marking is not explicitly listed in the provided data, the design aligns with European procurement standards and typical CE-compliant electrical enclosure components used with Rittal systems.
Remote control via CMC III reduces on-site visits, lowering maintenance costs and response times. The robust sheet steel frame with glass viewing panels enhances durability and reduces replacement frequency. Energy efficiency is supported by a modest current draw of 0.78 A, and standardized components (ETIM/ECLASS) simplify procurement and future upgrades, improving total cost of ownership for enclosure systems.
