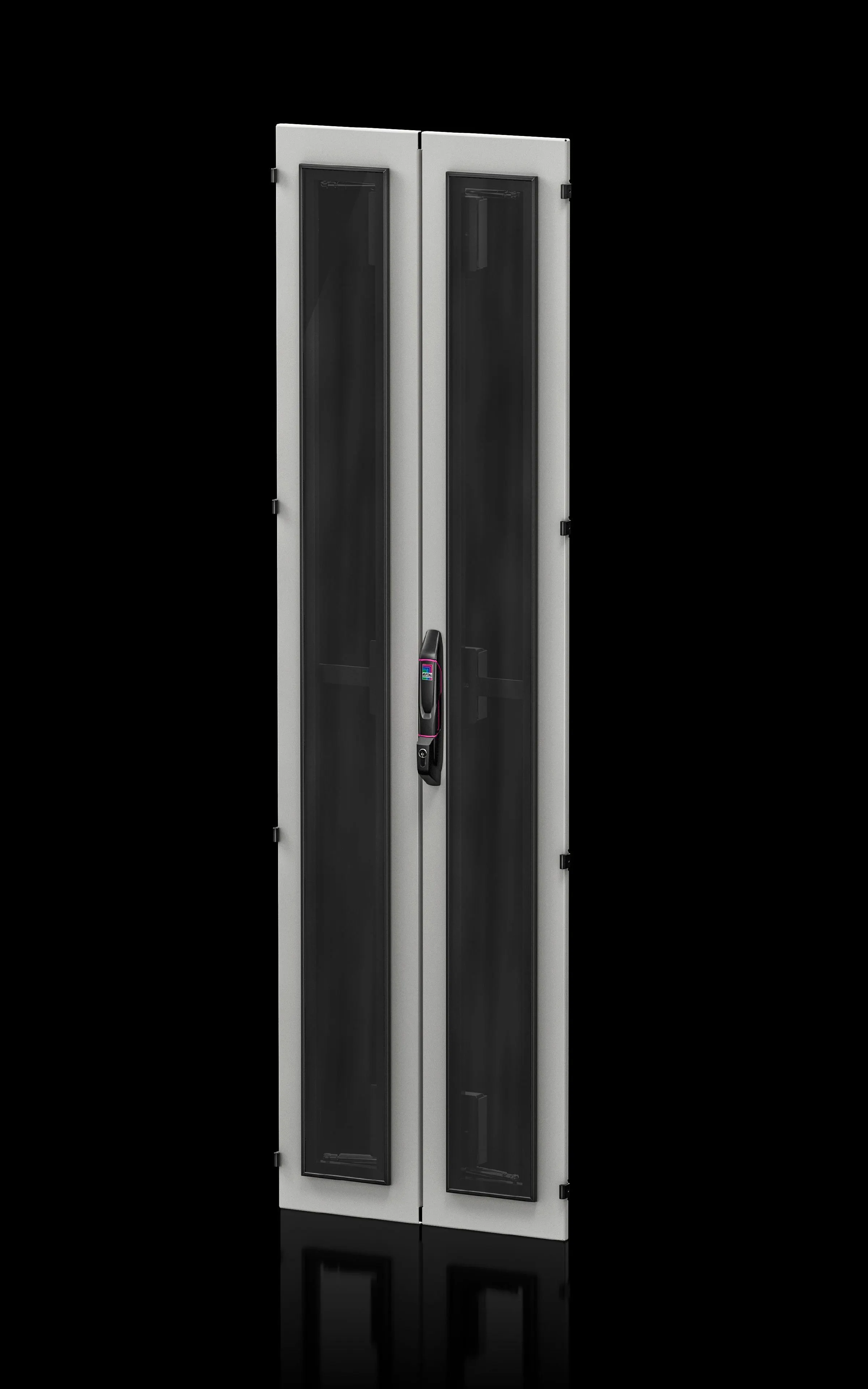

Rittal VX IT 7030.282 Door - Vent Flap ADO IP20
Part Number: 7030282
Quick Summary
The Rittal VX IT 7030.282 door enables automatic opening via vent valves for alarm scenarios in electrical enclosures. Maintenance teams often face downtime when venting is required during faults or power loss, making manual interventions slow and risky. This design prioritizes protection with IP 20 rating and alignment to ETIM EC000261 and ECLASS 27180101 standards to streamline procurement and installation. By integrating with the CMC III system, it also supports remote control and centralized operations, reducing on-site visits. The combination of tinted safety glass, a robust sheet steel frame, and a color match to RAL 7035 delivers both reliability and visual consistency in industrial installations, while the included comfort handle and security lock enhance practical field usability.
Product Information
Extended Description
7030282 Rittal: 2-part VX IT sheet steel door (ADO), WxH 600x2000, 2x single-pane safety glass, foil
Article number
VX_IT 7030.282
Design
Viewing panels: Single-pane safety glass, tinted | Spring damper for flap opening | Magnets for fixing the flaps | Valves are open at zero current | With sheet steel door | 2-part, vertically divided, with vent flaps | Frame: Sheet steel
Product description
With integral vent valves for automated opening function in the event of an alarm or power failure. The glazed door for the Automatic Door Opening System replaces the standard VX IT door.
Benefits
Supports remote control via the CMC III system
Technical specifications
External projection of the vent flap: 200 mm (when opened)
Function principle
Activation via CMC III door control module (DCM)
Material
2-part, vertically divided, with vent flaps | Frame: Sheet steel | Viewing panels: Single-pane safety glass, tinted
Colour
RAL 7035
Supply includes
Door with comfort handle for semi-cylinders with security lock 3524 E
With DC
0.78 A
Dimensions
Width: 600 mm | Height: 2,000 mm
IP protection category to IEC 60 529
IP 20 for solid vent flaps
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177925946
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
2-part VX IT sheet steel door (ADO), WxH 600x2000, 2x single-pane safety glass, foil
Feature: Automatic venting through integrated vent valves activated by the CMC III door control module (DCM). Business impact: rapid venting during alarms or power failures reduces enclosure pressure buildup and mitigates component stress, enabling safer, faster restart after fault events. Application: IT cabinets and electrical enclosures that require reliable remote venting. Feature: 2-part, vertically divided VX IT sheet steel door with vent flaps and frame. Business impact: improves mechanical stability and service life while providing easy access and maintenance; supports remote monitoring within centralized control systems. Application: Front-door assemblies for controlled environments where venting is necessary. Feature: Glass viewing panels (single-pane, tinted) with safety certification. Business impact: enhances operator visibility without compromising enclosure integrity; aids in quick status checks during overloads or alarms. Application: Industrial control panels where monitoring is frequent. Feature: External vent flap projection of 200 mm when opened. Business impact: ensures sufficient airflow and clear venting path, reducing backpressure on cooling systems. Application: Enclosures with limited internal clearance. Feature: IP 20 protection for solid vent flaps. Business impact: provides reliable protection against dust ingress at the enclosure interface, supporting longer service life. Application: Indoor installations in standard industrial environments. Feature: Supply includes a comfort handle for semi-cylinders with security lock 3524 E. Business impact: simplifies installation and improves security without additional hardware, reducing commissioning time. Application: Field installations requiring secure access control. Feature: Color in RAL 7035; material and finish details (sheet steel frame, tinted glass). Business impact: ensures visual uniformity across multi-site deployments and accommodates standard corporate color schemes. Application: Retail of large-scale electrical projects and data center environments.
Get a Quick Quote for a Rittal 7030282
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030282?
Enquire Now
FAQs
Yes. The door is designed for activation via the CMC III door control module (DCM), enabling remote venting and integrated real-time status monitoring within a centralized control system. Ensure the enclosure provides mounting space for the 600x2000 mm door and that the electrical draw (0.78 A) is considered during power budgeting.
The door measures 600 mm wide by 2,000 mm high. It is a 2-part, vertically divided assembly with a sheet steel frame and vent flaps. Plan for mounting within a Rittal enclosure opening of the same dimensions and provide space for the 200 mm vent flap projection when opened.
Applications include electrical enclosures and IT cabinet housings where alarms or power failures trigger automatic venting. The remote control capability via CMC III and the 2-part glass design support secure monitoring, rapid fault response, and improved cooling airflow without manual intervention.
Key features include tinted single-pane safety glass for visibility and protection, a sheet steel frame for robustness, IP 20 protection for vent flaps, and compatibility with the supplied comfort handle and security lock. The design aligns with ETIM EC000261 and ECLASS 27180101 classifications to support standard procurement processes.
Each pack contains one door with the included comfort handle for semi-cylinders and a security lock, simplifying installation and reducing on-site hardware requirements. The remote venting capability minimizes downtime during alarms, delivering a quick payback through improved availability and reduced service visits.
