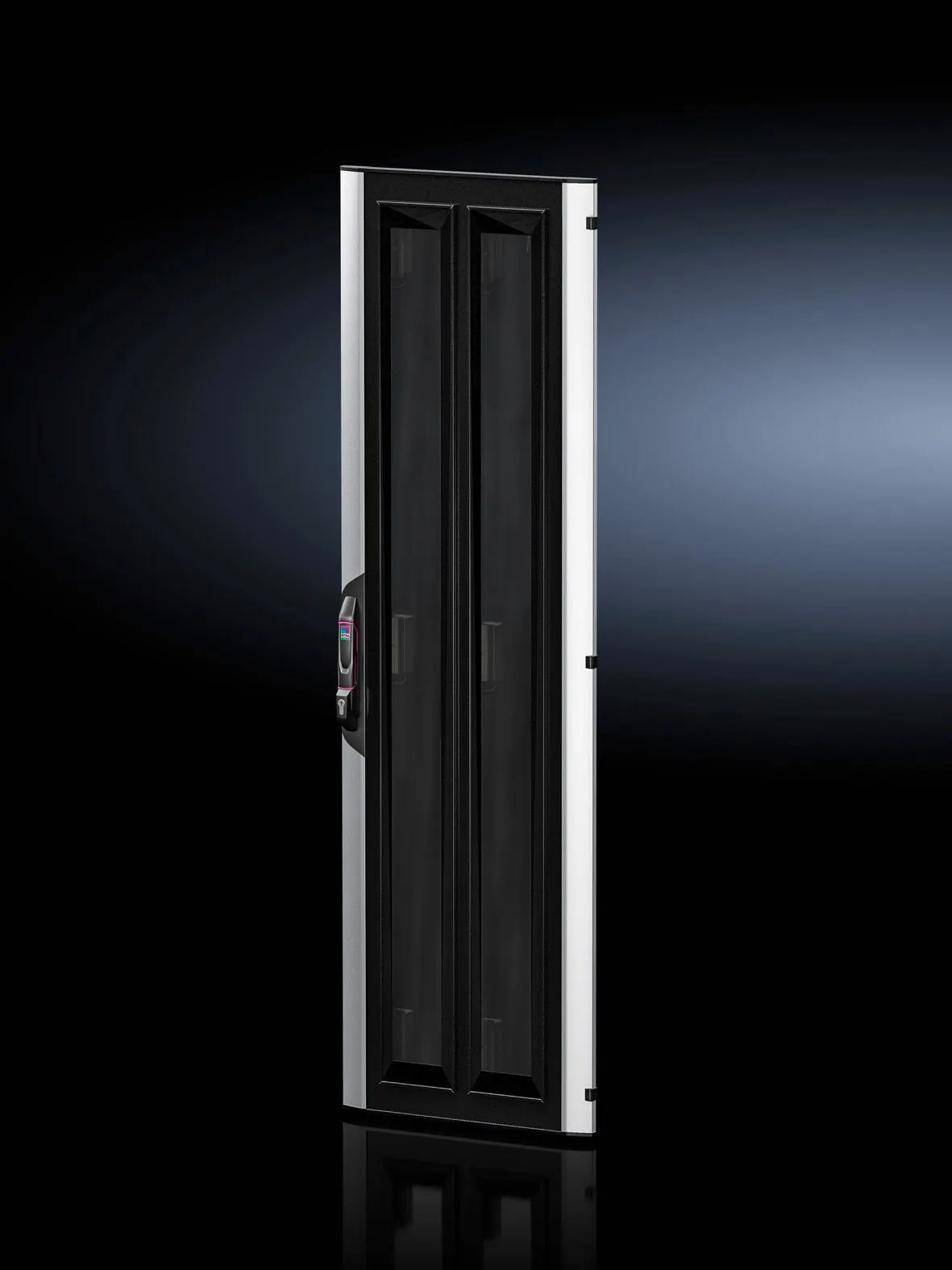

Rittal VX_IT 7030.283 Glazed Door - IP20 Vent Flap
Part Number: 7030283
Quick Summary
Rittal VX_IT 7030.283 glazed door provides automated opening for alarm events in electrical enclosures. When alarms or power outages occur, technicians need fast, reliable access without compromising enclosure integrity. This solution aligns with IP protection level IP20 for vent flaps and industry standards ETIM EC000261 and ECLASS 8.0 27180101, ensuring compatibility with procurement and maintenance workflows. By integrating with the CMC III control system, it supports remote operation, improving response times and maintenance safety. The robust sheet steel frame and tinted safety glass deliver a durable, secure enclosure upgrade suitable for data centers and industrial control cabinets.
Product Information
Extended Description
7030283 Rittal: VX IT divided sheet steel door (ADO), WxH 800x2000, 2x single-pane safety glass, foil
Article number
VX_IT 7030.283
Design
Viewing window: Single-pane safety glass, 3 mm | Spring damper for flap opening | Magnets for fixing the flaps | Valves are open at zero current | With sheet steel door | 2-part, vertically divided, with vent flaps | Frame: Sheet steel
Product description
With integral vent valves for automated opening function in the event of an alarm or power failure. The glazed door for the Automatic Door Opening System replaces the standard VX IT door.
Benefits
Supports remote control via the CMC III system
Technical specifications
External projection of the vent flap: 200 mm (when opened)
Function principle
Activation via CMC III door control module (DCM)
Material
Frame: Sheet steel | Viewing panels: Single-pane safety glass, tinted
Colour
RAL 7035
Supply includes
Door with comfort handle for semi-cylinders with security lock 3524 E
With DC
0.78 A
Dimensions
Width:Â 800 mm | Height:Â 2,000 mm
IP protection category to IEC 60 529
IP 20 for solid vent flaps
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177925953
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX IT divided sheet steel door (ADO), WxH 800x2000, 2x single-pane safety glass, foil
Feature → Business Impact → Application: Vent valves enable automated opening in alarm or power-failure scenarios, reducing manual intervention and downtime while enhancing operator safety in critical control cabinets. This translates to faster incident response and safer maintenance, particularly for 800x2000 mm VX IT enclosures used in process automation. Feature → Business Impact → Application: Viewing window uses 3 mm single-pane safety glass with a tinted finish, providing visibility without compromising security, which supports quick assessment during fault conditions. Feature → Business Impact → Application: 0.78 A current draw and energy-efficient DC activation via the CMC III module minimize electrical load and simplify integration with existing control networks in large-scale installations. Feature → Business Impact → Application: Vent flap projection of 200 mm when open ensures clear access space for personnel and tooling, improving serviceability in crowded panel layouts. Feature → Business Impact → Application: Vertical two-part door with sheet steel frame and secure handle (3524 E) enhances security and vandal-resistance in harsh industrial environments, reducing maintenance risk and replacement costs. Feature → Business Impact → Application: Compliance with ETIM EC000261 and ECLASS 27180101 accelerates procurement and cross-system compatibility, streamlining BOMs and SKU-level traceability for large projects.
Get a Quick Quote for a Rittal 7030283
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030283?
Enquire Now
FAQs
The VX_IT 7030.283 is designed for VX IT frames at 800 mm width and 2000 mm height, with a sheet steel frame and vertically divided door. It supports integration with existing VX IT systems and uses standard mounting points to simplify retrofits in control cabinets and industrial enclosures. Ensure the door frame matches the enclosure type and verify the space required for the 200 mm vent flap extension when opened.
Key specs include WxH 800x2000 mm, 0.78 A DC activation, IP20 protection for solid vent flaps, two-part vertically divided door with vent flaps, and a viewing window of 3 mm single-pane safety glass. The door ships with a comfort handle and security lock 3524 E, and uses RAL 7035 colouring for standardization across installations.
Yes. It is engineered for automated opening in alarm or power-failure conditions via the CMC III door control module (DCM), enabling remote operation and rapid access during incidents. This makes it well-suited for data centers and critical infrastructure where uptime and quick maintenance are essential.
The door is rated IP20 for solid vent flaps, providing basic enclosure protection. It also aligns with ETIM 9 EC000261 and ECLASS 8.0 27180101 classifications, aiding procurement and cross-system compatibility within industrial ecosystems.
Remote operation via CMC III reduces site visits for alarm handling, while automated vent flap opening minimizes downtime during fault events. The sturdy sheet steel construction and secure handle reduce replacement costs, and standardized classifications streamline purchasing, improving overall return on investment for large-scale automation projects.
