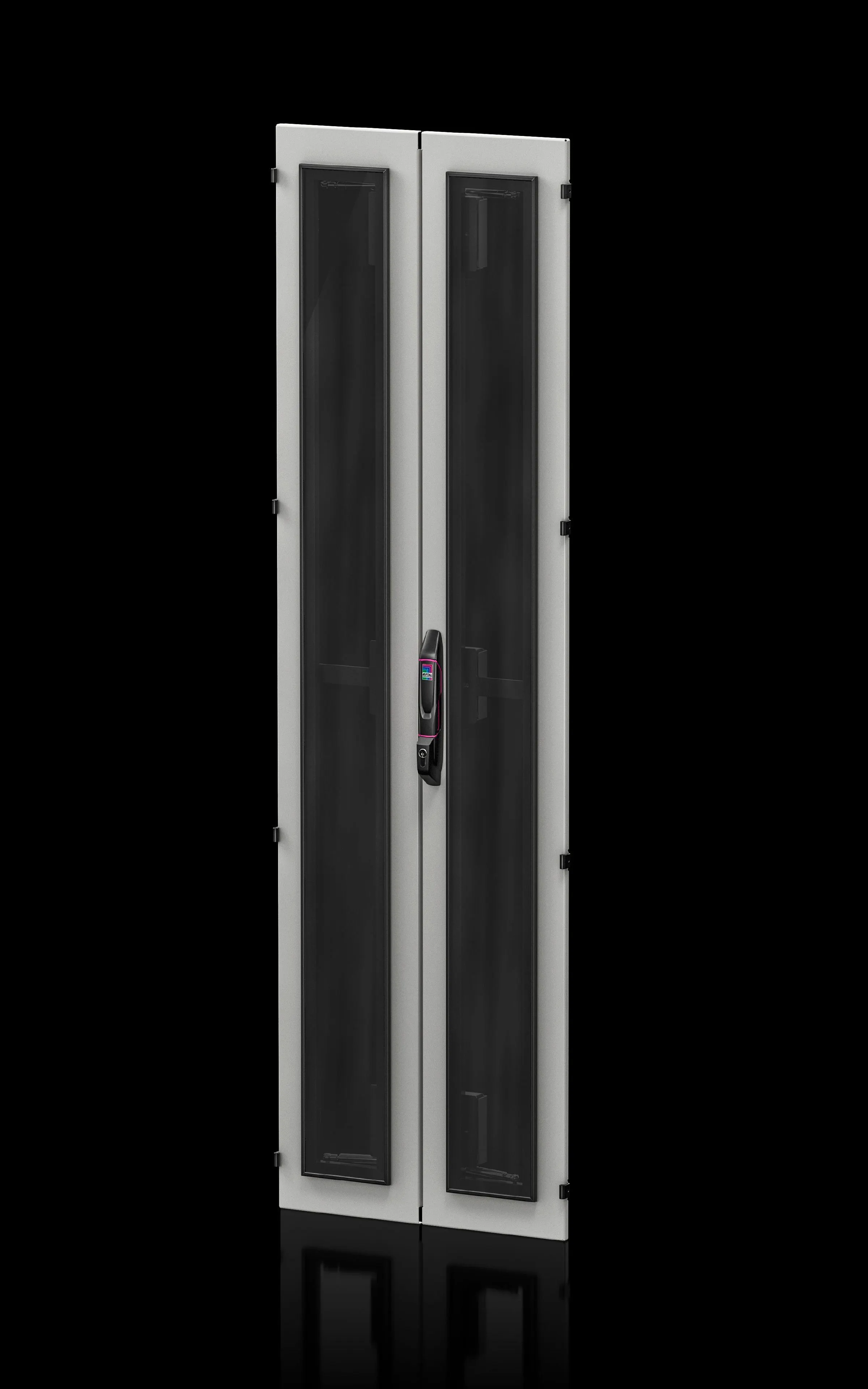

Rittal VX_IT 7030.284 Door - Viewing Window IP20
Part Number: 7030284
Quick Summary
Rittal VX_IT 7030.284 is a glazed two-part door for Automatic Door Opening in enclosure applications. During alarms, technicians often face delays when venting and manual door operation are required; this solution speeds up responses and improves safety. It delivers IP 20 protection for vent flaps and aligns with ETIM EC000261 and ECLASS 27180101 standards to streamline sourcing. Integrated with CMC III control for remote operation, the door supports safer, faster cabinet management in automation environments.
Product Information
Extended Description
7030284 Rittal: 2-part sheet steel door VX IT (ADO), WxH 600x2200, RAL7035
Article number
VX_IT 7030.284
Design
Viewing window with single-pane safety glass | Spring damper for flap opening | Magnets for fixing the flaps | Valves are open at zero current | With sheet steel door | 2-part, vertically divided, with vent flaps | Frame: Sheet steel
Product description
With integral vent valves for automated opening function in the event of an alarm or power failure. The glazed door for the Automatic Door Opening System replaces the standard VX IT door.
Benefits
Supports remote control via the CMC III system
Technical specifications
External projection of the vent flap: 200 mm (when opened)
Function principle
Activation via CMC III door control module (DCM)
Colour
RAL 7035
Supply includes
Door with comfort handle for semi-cylinders with security lock 3524 E
With DC
0.78 A
Dimensions
Width:Â 600 mm | Height:Â 2,200 mm
IP protection category to IEC 60 529
IP 20 for solid vent flaps
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177925960
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
2-part sheet steel door VX IT (ADO), WxH 600x2200, RAL7035
Glazed two-part VX IT door enables Automatic Door Opening (ADO) during alarms, reducing manual intervention and accelerating fault response in electrical cabinets. This translates to safer cabinet access and minimized downtime in critical infrastructure. The vent flaps extend 200 mm when opened, providing rapid pressure relief without compromising enclosure integrity, which is essential in tight rack spaces and densely populated panels. The viewing window uses single-pane safety glass, allowing quick visual status checks from outside the enclosure, cutting inspection time and improving fault diagnosis. The panel is finished in RAL 7035 for consistent industrial aesthetics and straightforward integration with existing enclosures. A DC current draw of 0.78 A informs electrical design and ensures predictable control cabinet power budgeting. Supplied with a comfort handle for semi-cylinders and a security lock (3524 E), it enhances operator ergonomics and security in restricted areas. Dimensions of 600x2200 mm fit standard cabinet footprints, supporting efficient space planning. Activation through the CMC III controller enables remote door control and centralized automation workflows, reducing on-site maintenance visits and enabling scalable infrastructure updates. This solution aligns with ETIM EC000261 and ECLASS 27180101 classifications, enhancing procurement accuracy and cross-supplier interoperability for industrial automation programs.
Get a Quick Quote for a Rittal 7030284
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030284?
Enquire Now
FAQs
The VX_IT 7030.284 is designed for seamless integration with CMC III door control modules. Connect the DCM to standard control panels, configure the vent flap activation logic in alarm scenarios, and verify 0.78 A current draw to ensure the enclosure’s power budget remains within limits. This minimizes wiring complexity and supports scalable automation updates.
Key specs include 600 mm width and 2,200 mm height, RAL 7035 finish, and an IP rating of IP 20 for solid vent flaps. The vent flap projects 200 mm externally when opened, and the door includes a viewing window with safety glass. It draws 0.78 A DC and ships as a 1-piece pack with a comfort handle and security lock.
Yes. The VX_IT 7030.284 is intended for indoor enclosure applications where automated venting during alarms or power outages is advantageous. Its IP 20 rating protects vent components from solid objects, and the 600x2200 mm size fits common cabinet footprints, enabling rapid deployment in control rooms and machine housings.
The package includes a comfort handle for semi-cylinders with a security lock (3524 E), enhancing user ergonomics and access control. This combination supports safer operation in restricted areas and reduces the risk of unauthorized access during maintenance or testing.
The door is associated with ETIM 9 EC000261 and ECLASS 8.0 27180101 classifications, facilitating cataloging and procurement. It also delivers IP 20 protection for vent flaps and is designed for remote operation via CMC III, aligning with common industry expectations for enclosure safety and automation compatibility.
