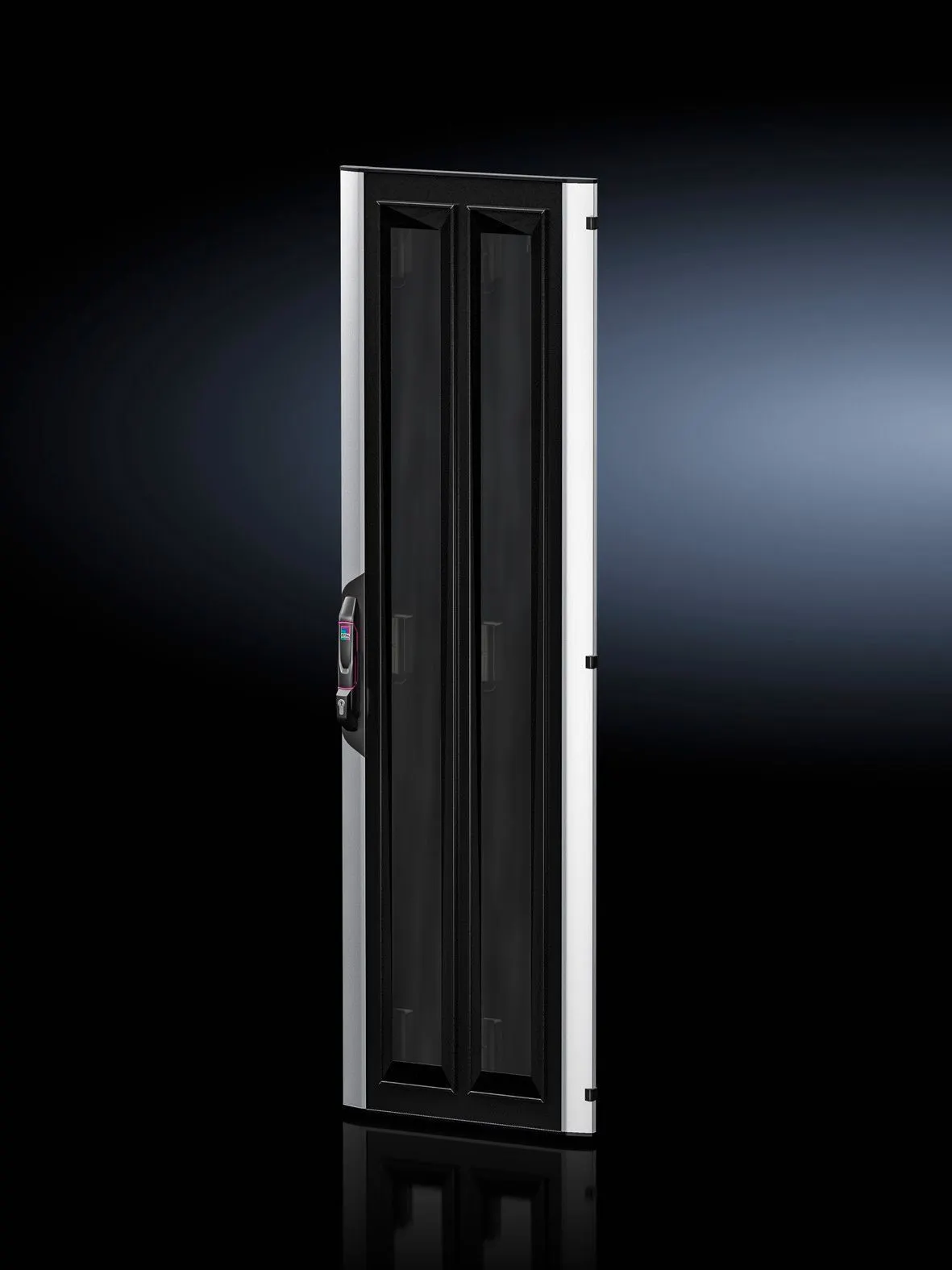

Rittal VX IT 7030.285 Glazed and Sheet Steel Door - IP20
Part Number: 7030285
Quick Summary
The Rittal VX IT 7030.285 glazed door enables automated venting for electrical cabinets. Maintenance teams often face alarm‑driven access delays; this system delivers reliable auto‑opening via vent flaps and a dedicated door control module. It meets CE compliance and IP 20 protection, providing safe operation in standard industrial environments. Integrated with remote control through the CMC III system, it supports faster fault isolation and predictable service intervals. With its 2‑part sheet steel construction and tinted safety glass, the solution offers a durable, scalable option for modern control panels. Overall, it reduces downtime, improves security, and aligns with already installed automation architectures.
Product Information
Extended Description
7030285 Rittal: 2-part sheet steel door VX IT (ADO), WxH 800x2200, RAL7035
Article number
VX_IT 7030.285
Design
Viewing panels: Single-pane safety glass, tinted | Spring damper for flap opening | Magnets for fixing the flaps | Valves are open at zero current | With sheet steel door | 2-part, vertically divided, with vent flaps | Frame: Sheet steel
Product description
With integral vent valves for automated opening function in the event of an alarm or power failure. The glazed door for the Automatic Door Opening System replaces the standard VX IT door.
Benefits
Supports remote control via the CMC III system
Technical specifications
External projection of the vent flap: 200 mm (when opened)
Function principle
Activation via CMC III door control module (DCM)
Colour
RAL 7035
Supply includes
Door with comfort handle VX for semi-cylinders with security lock 3524 E
With DC
0.78 A
Dimensions
Width: 800 mm | Height: 2,200 mm
IP protection category to IEC 60 529
IP 20 for solid vent flaps
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177925977
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
2-part sheet steel door VX IT (ADO), WxH 800x2200, RAL7035
Feature: Integral vent valves enable automated opening in alarm or power failure. Business impact: ensures timely cabinet venting and safer fault management, reducing manual intervention. Application: critical electrical enclosures in manufacturing lines. Feature: Viewing panels use single‑pane safety glass with a tinted finish and a frame of sheet steel. Business impact: enhances visibility for quick inspections while maintaining enclosure integrity. Application: control cabinets requiring rapid status checks without exposing operators. Feature: Activation via the CMC III door control module (DCM). Business impact: enables remote operation and centralized control, lowering现场现场 labor and improving response times. Application: automated plant floors with distributed HVAC and safety requirements. Feature: External vent flap projection of 200 mm when opened. Business impact: clear visual indication of venting and sufficient airflow for fast response. Application: spaces with tight cabinet surroundings where airflow must be controlled. Feature: Supplied with comfort handle VX for semi‑cylinders with security lock 3524 E and color RAL 7035. Business impact: simplifies installation, standardizes hardware, and strengthens access security. Application: new builds and retrofit projects across industrial cabinets. Feature: IP protection IP 20 for vent flaps. Business impact: protects interior components from solid objects, supporting compliance and longevity. Application: interior factory environments with standard protection needs.
Get a Quick Quote for a Rittal 7030285
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030285?
Enquire Now
FAQs
For installation, plan for an 800 mm wide by 2,200 mm high opening and allow space for the 200 mm vent flap projection when opened. Ensure a compatible DC supply of 0.78 A and confirm wiring to the CMC III door control module. Use the included VX comfort handle and security lock for secure operation.
Key specs include 800 x 2200 mm dimensions, RAL 7035 color, IP 20 protection for vent flaps, a two‑part sheet steel door design, viewing panels with tinted safety glass, and 0.78 A DC current draw. It is designed for auto‑opening under alarm or power failure scenarios.
Yes. Activation is via the CMC III door control module (DCM), enabling remote operation and integration with plant automation. This compatibility facilitates centralized monitoring, streamlined fault handling, and consistent access control across multiple enclosures.
The VX IT 7030.285 is CE compliant and rated IP 20 for its vent flaps, meaning it adheres to essential European safety standards and provides protection against solid objects. This supports regulatory compliance in typical industrial environments and reduces risk during maintenance and operation.
Benefits include reduced alarm-response time, lower manual intervention, and safer automated venting, contributing to shorter downtime and higher uptime. Maintenance focuses on periodic inspection of vent flaps, magnets, and the door control wiring, with the integration of the CMC III module helping centralized monitoring.
