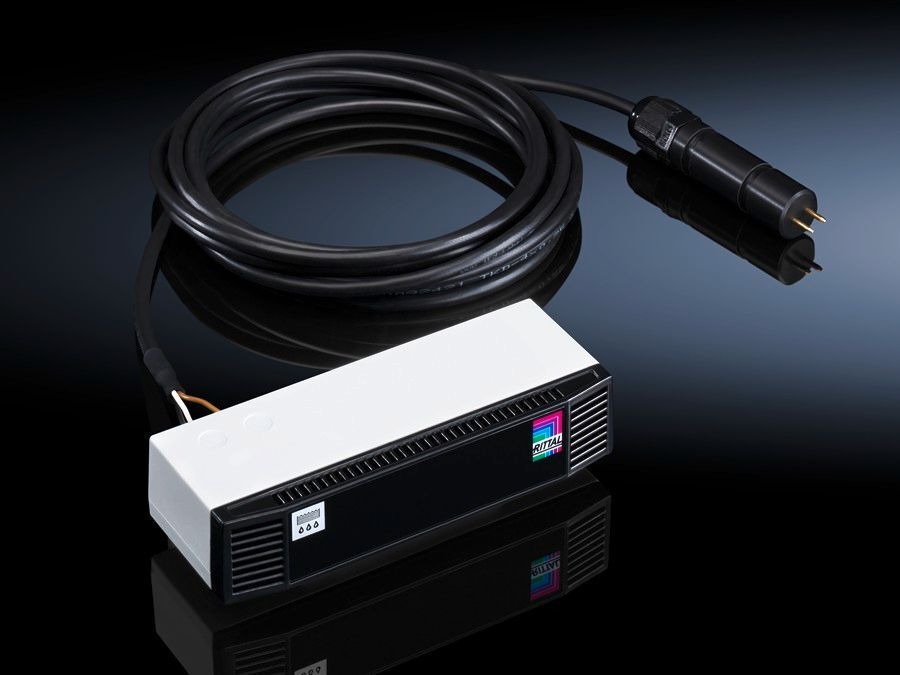

Rittal 7030430 Leakage Sensor - CMC III, Plug & Play
Part Number: 7030430
Quick Summary
Rittal 7030430 Leakage Sensor is a CMC III device that monitors enclosure conditions with a fast, CAN bus connected leak-detection capability for IT, industrial, and facility management. Engineers often grapple with unseen moisture risks that cause downtime and costly repairs; this sensor provides early, reliable detection with quick integration to the control network. The solution aligns with ETIM 9 EC002627 and ECLASS 8.0 27189253 classifications, while cradle-to-gate PCF is reported as 1.1 kg CO2 eq (Cat B) for sustainability considerations. By combining plug‑and‑play connectivity, robust environmental specs, and compatible mounting hardware, it delivers measurable business value and streamlined procurement for critical enclosure monitoring scenarios.
Product Information
Extended Description
7030430 Rittal: DK CMC III Leakage sensor, WHD: 110x30x40 mm
Article number
DK 7030.430
Design
Leak sensor
Product description
CMC III sensors are used for monitoring the physical environment and can be connected directly to the PU via a CAN bus connection cable RJ45. The sensors may also be linked together to form a bus.
Benefits
Fast connection and automatic detection via plug & play
Applications
Enclosure monitoring in IT, industry and facility management
Function principle
Settings can be made via the CMC III processing unit or IoT interface
Material
Plastic | Front: Smooth | Enclosure: Textured
Colour
Front: RAL 9005 | Enclosure: RAL 7035
Supply includes
Sensor | Mounting plate | Assembly parts | External sensor with connection cable
Connection to the CAN bus
Direct
Interfaces
2 x RJ45 CAN bus
No. of participants per IoT interface (max.)
32
No. of participating PU compact (max.)
4
No. of participating PU (max.)
32
No. of PDU devices (max.)
16
Measuring technique
Conductivity measurement
Dimensions
Width: 110 mm | Height: 30 mm | Depth: 40 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Packs of
1 pc(s).
Weight/pack
0.283 kg
PCF per pack (cradle-to-gate)
1.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85319000
EAN
4028177695825
ETIM 9
EC002627
ECLASS 8.0
27189253
Product description
DK CMC III Leakage sensor, WHD: 110x30x40 mm
Feature → Business Impact → Application: The DK CMC III leakage sensor uses conductivity measurement to detect moisture presence, enabling immediate alerts and reducing unplanned downtime in IT enclosures and industrial cabinets. This leads to faster remediation and lower repair costs during facility operations. Application: IT room monitoring, data center cabinets, and industrial plant enclosures where environmental control is critical. Feature → Business Impact → Application: Direct CAN bus connection via two RJ45 interfaces supports scalable network topologies, enabling automatic device discovery and simplified bus wiring. This reduces installation time and minimizes cabling errors in complex IT and automation environments. Application: Large IT deployments and automated facilities with distributed sensing. Feature → Business Impact → Application: Compact form factor (WHD 110 x H 30 x D 40 mm) and lightweight design (0.283 kg per pack) simplify mounting in tight panels and retrofits. Application: Retrofit projects and space-constrained enclosures. Feature → Business Impact → Application: Comprehensive supply includes sensor, mounting plate, assembly parts, and an external sensor with connection cable, ensuring a ready-to-install solution that shortens project schedules. Application: New builds and refresh cycles. Feature → Business Impact → Application: High interface capacity (up to 32 IoT participants per interface; 32 total per PU; 16 PDU devices) supports scalable monitoring across multiple enclosures and zones. Application: Multi-zone facility monitoring and data center rack environments. Feature → Business Impact → Application: Wide operating range (5 °C to 45 °C) and ambient humidity 5–95% non-condensing ensure reliable performance in varied installation environments. Application: Enclosures in IT rooms, industrial control panels, and facilities with challenging climate conditions.
Get a Quick Quote for a Rittal 7030430
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030430?
Enquire Now
FAQs
Installation is straightforward: mount the DK 7030.430 using the supplied mounting plate and assembly parts, then connect the external sensor and the CAN bus via two RJ45 interfaces. The device is designed for plug‑and‑play operation, with automatic detection once connected to the PU network, reducing commissioning time and wiring errors.
Conductivity measurement detects moisture presence by sensing electrical changes in the enclosure environment. This enables rapid alerts to IT and facility teams, minimizing the risk of unseen water ingress. The system supports fast connection to CAN bus networks, enabling timely fault isolation and targeted remediation.
Yes. The sensor connects directly to CAN bus using 2 x RJ45 interfaces and is designed for use within PU networks. It supports up to 32 IoT participants per interface and up to 32 participants per PU, making it suitable for scalable deployments across IT racks and industrial enclosures.
The product data references ETIM 9 EC002627 and ECLASS 8.0 27189253 classifications, which support procurement and interoperability. The cradle-to-gate PCF is 1.1 kg CO2 eq (Cat B). For regulatory certifications beyond classifications, consult Rittal's documentation or the supplier for CE marking or IP ratings specific to your region.
The plug‑and‑play design reduces installation time, while continuous enclosure monitoring lowers downtime risk and repair costs. With durable construction, a compact form factor, and a clear path for scalable deployments (up to 32 IoT participants per interface), the sensor supports lower maintenance costs and faster ROI in IT rooms and industrial facilities.
