Rittal DK 7030.480 CAN bus connection cable - RJ45
Part Number: 7030480
Quick Summary
Rittal DK 7030.480 CAN bus connection cable provides reliable CAN bus connectivity for interlinking PU, sensors III, and control units. Operators often face signal integrity issues and manual wiring headaches when expanding CAN networks. This product aligns with ETIM 7.0 EC000313 and ECLASS 8.0 27189253 classifications, helping ensure standardized data handling and cross-vendor compatibility. From a business perspective, it supports reliable CAN bus connectivity and scalable cabling options, reducing downtime, maintenance effort, and installation costs. The RJ45 interface and a 3 m length enable rapid deployment in compact cabinets and distributed automation architectures, while maintaining robust power transmission. Designed for harsh environments with operating range 0 °C to 55 °C and non-condensing humidity up to 95%, it supports long-term reliability in industrial settings.
Product Information
Extended Description

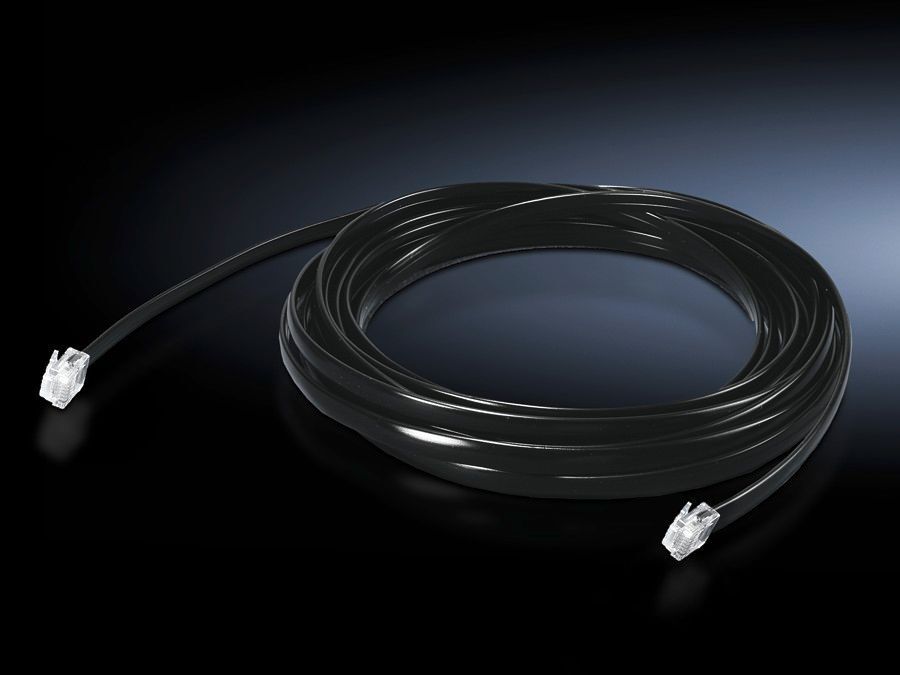

7030480 Rittal: DK CMC III CAN bus connection cable, L: 3 m, type: RJ45
Article number
DK 7030.480
Product description
For connecting the PU to the CAN bus sensors III, units III and control units III as a bus, also for cabling together. Because it is available in different lengths, the CMC III system can be adapted to various applications and built to a custom design.
Applications
For connecting the CAN bus units.
Length
3 m
Dimensions
Length: 3 m
Interfaces/connections
Connector (type): RJ45RJ45
Operating temperature range
0 °C...55 °C
Ambient humidity (non-condensing)
5...95 %
Packs of
1 pc(s).
Weight/pack
0.131 kg
Customs tariff number
85444290
EAN
4028177695924
ETIM 7.0
EC000313
ECLASS 8.0
27189253
Product description
DK CMC III CAN bus connection cable, L: 3 m, type: RJ45
Feature: DK CMC III CAN bus connection cable, L: 3 m, RJ45 interfaces. Business Impact: Enables flexible CAN bus layouts and scalable networks, reducing wiring complexity and deployment time. Application: Connect PU to CAN bus sensors III, units III and control units III as a bus, with options to build custom configurations.Feature: Standard RJ45 connectors. Business Impact: Ensures quick, interchangeable terminations and easy maintenance, lowering field repair costs. Application: Cable runs between CAN nodes across cabinets and distributed systems.Feature: Operating temperature range 0 °C...55 °C and ambient humidity 5...95 % non-condensing. Business Impact: Improves reliability in typical industrial environments without extra enclosures. Application: Cabinet installations and harsh factory floors where temperature and humidity vary.Feature: Weight per pack 0.131 kg and packaging 1 pc. Business Impact: Lightweight, easy handling, and predictable logistics; minimizes shipping and storage costs. Application: Efficient stocking for spares and on-site replacements.Feature: Product description and ETIM/ECLASS alignment (ETIM EC000313; ECLASS 27189253). Business Impact: Streamlines procurement data, ensures compatibility with ERP/classification schemes. Application: Easy integration into purchase orders and BOMs for industrial automation projects.Feature: 3 m length and RJ45-to-RJ45 connectivity. Business Impact: Fits standard cabinet spacing and reduces the need for intermediate interconnects. Application: Long-range CAN bus cabling between PU, sensors III, units III, and controllers in modular Rittal systems.
Get a Quick Quote for a Rittal 7030480
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030480?
Enquire Now
FAQs
To install, connect one RJ45 end to the PU CAN bus interface and the other RJ45 end to the corresponding CAN bus sensor III, units III or control unit III. Ensure the 3 m length fits the cabinet layout, secure the cable away from high-temperature zones, and verify continuity with a multimeter after wiring. This minimizes rework and ensures solid signal transmission.
Key specs include a 3 m length, RJ45RJ45 connectors, operating temperature range of 0 to 55 °C, ambient humidity compatibility from 5 to 95 percent non-condensing, weight per pack of 0.131 kg, and ETIM EC000313 along with ECLASS 27189253 classifications. The product is designed for CAN bus connections among PU, sensors III, units III, and control units III.
Yes. The 3 m RJ45 CAN bus cable is designed to link PU to CAN bus sensors III, units III, and control units III as a bus, with compatibility for the typical cabinet environments found in industrial automation. Its 0–55 °C operating range and non-condensing humidity tolerance support reliable operation in varied factory conditions.
The DK 7030.480 aligns with ETIM 7.0 EC000313 and ECLASS 8.0 27189253 classifications, which standardize product data for procurement and integration. It carries the EAN 4028177695924 and is built for cross-vendor compatibility within Rittal’s CAN bus ecosystem.
The cable reduces installation time with ready-made RJ45 connections and a fixed 3 m length, cutting labor costs and mis-wiring risks. Standardized components simplify maintenance and spares management, while scalable lengths support future expansions, lowering total cost of ownership in ongoing automation and cabinet projects.
