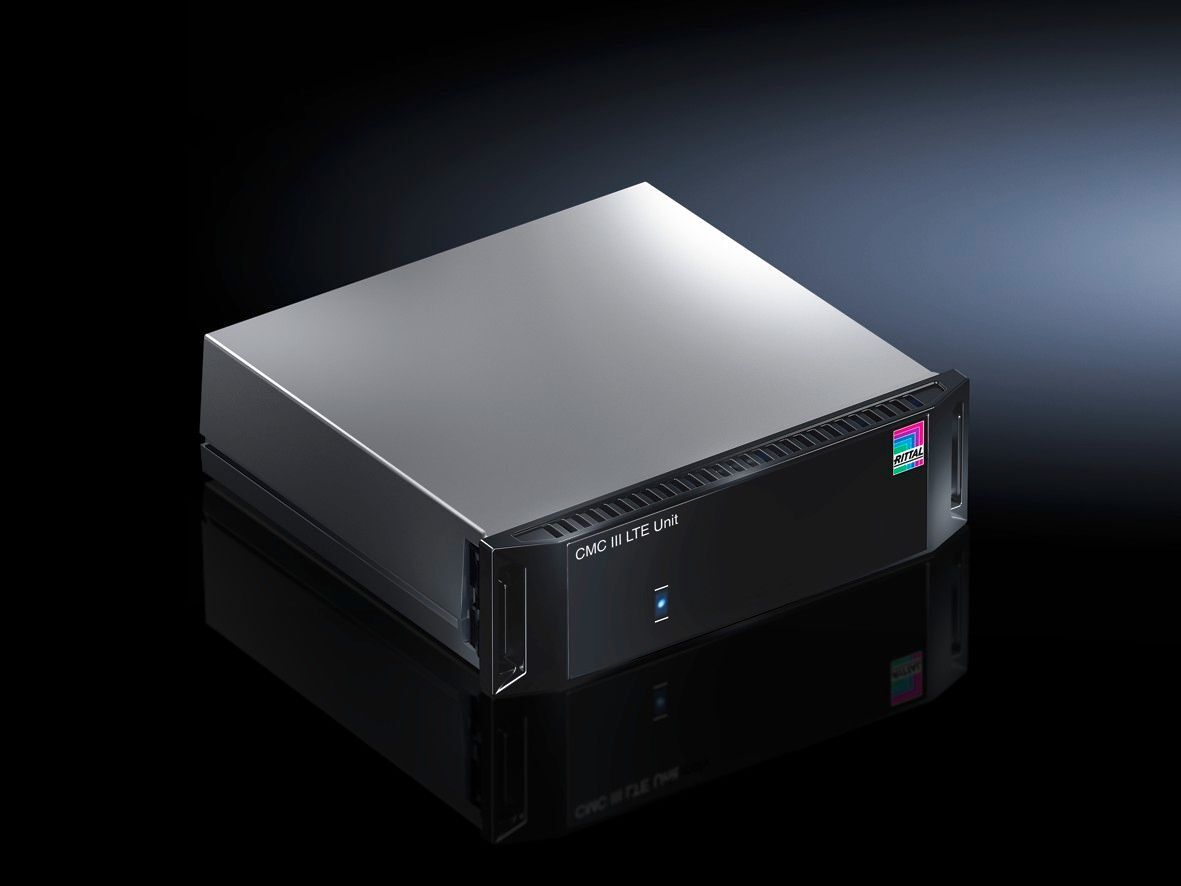

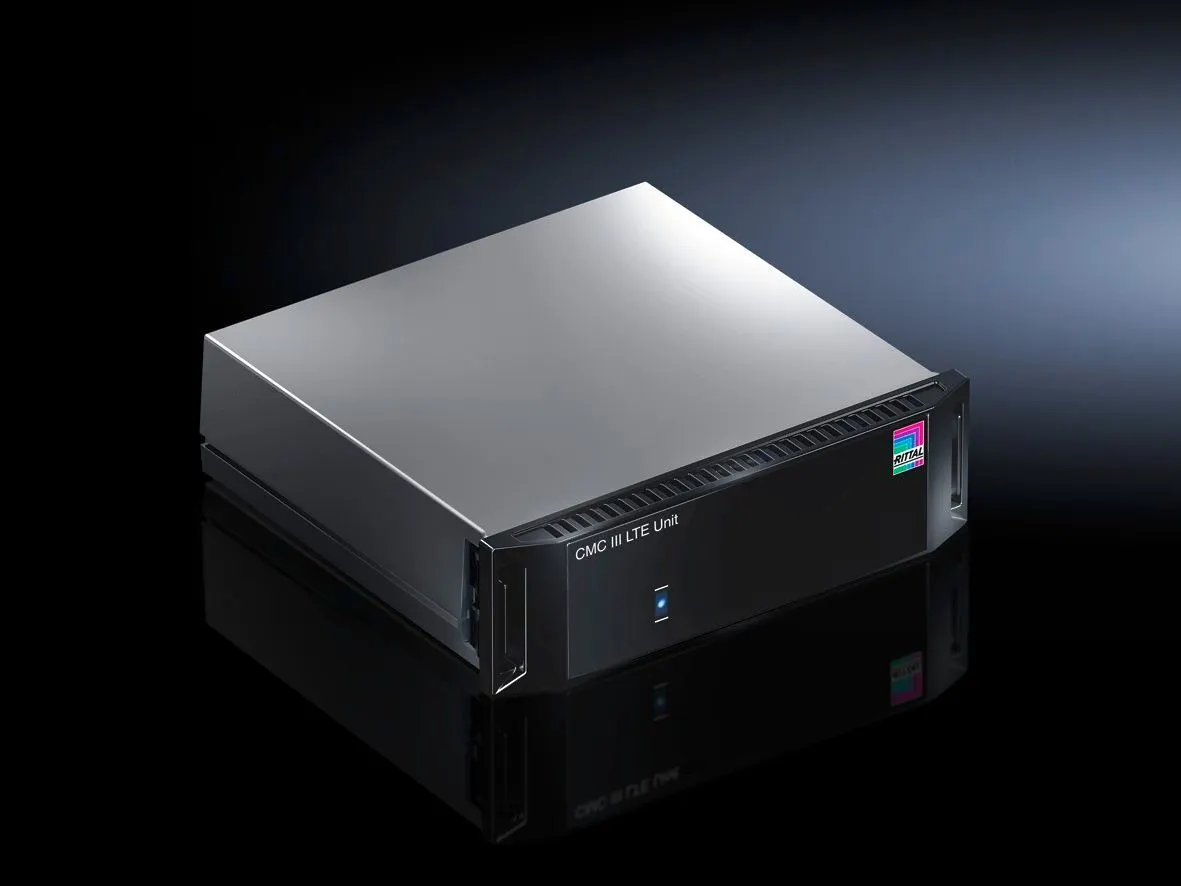

Rittal 7030571 CMC III LTE Unit - LTE auto-changeover
Part Number: 7030571
Manufacturer
Rittal
Part number
7030571
Category
Alt Part Number
DK 7030.571
Quick Summary
CMC III LTE Unit provides alarm forwarding via SMS for remote monitoring in industrial automation. When a plant loses its network infrastructure, critical alerts can be missed, increasing risk and response times. While CE conformity, IP-rated enclosures, and SIL compatibility are common expectations in industrial control hardware, this unit is designed to maintain alerting through mobile networks and robust handling in harsh environments. The solution integrates with the CMC Processing Unit and requires a SIM card, delivering reliable SMS alarms even where wired connectivity is unavailable. By simplifying remote monitoring and reducing response times, it supports uptime optimization and safer, compliant operation across plant floors.
Product Information
Extended Description
7030571 Rittal: CMC III LTE Unit, For alarm forwarding via SMS, if no network infrastructure is available, For connection to the CMC Processing Unit, CMC III and SIM card required
Article number
DK 7030.571
Product description
For configuring a redundant transmission channel or, if there is no network infrastructure available, for alarm forwarding. The alarm signal is designed in text message format. Cover for LTE (4G), UMTS (3G) and GSM (2G) with automatic changeover function, see bands and frequencies. A standard, commercially available SIM card must be provided by the customer.
Technical specifications
The CMC III LTE unit may be used in 4G, 3G and 2G mobile communications networks in these frequency ranges:
Material
Plastic
Colour
Front: RAL 9005 | Enclosure: RAL 7035
Supply includes
CMC III LTE unit | RJ12 cable | Aerial with magnetic base
Serial interface
2 x RJ12
Dimensions
Width: 138 mm | Height: 40 mm | Depth: 132 mm
Operating temperature range
0 °C...55 °C
Storage temperature range
45 °C...85 °C
Packs of
1 pc(s).
Weight/pack
0.672 kg
Customs tariff number
85176200
EAN
4028177926011
ETIM 9
EC002627
ECLASS 8.0
27189253
Product description
CMC III LTE Unit, For alarm forwarding via SMS, if no network infrastructure is available, For connection to the CMC Processing Unit, CMC III and SIM card required
Feature: LTE unit supports 4G/3G/2G with automatic changeover. Benefit: Ensures alarms reach SMS reliably regardless of network conditions, reducing downtime and enabling rapid response in remote installations. Application: Suitable for remote monitoring of critical equipment where wired infrastructure is absent or degraded. Feature: Connection to CMC Processing Unit with 2 x RJ12 serial interfaces. Benefit: Streamlines integration, minimizes cabling, and enables seamless alarm forwarding to existing control systems. Application: Ideal for integrated control rooms and distributed automation networks. Feature: Compact enclosure with front color in RAL 9005 and enclosure in RAL 7035; dimensions 138 mm x 40 mm x 132 mm; weight 0.672 kg. Benefit: Easy cabinet fit and minimal footprint in crowded control panels, reducing installation time. Application: Suitable for new builds and retrofits in compact automation enclosures. Feature: Includes supply items (CMC III LTE unit, RJ12 cable, aerial with magnetic base). Benefit: Quick, tool-free installation and reliable radio reception, lowering lifecycle costs. Application: Field deployments across factories and data centers. Feature: Operating temperature 0 °C to 55 °C; storage 45 °C to 85 °C. Benefit: Robust performance in varying environments, improving uptime and serviceability. Application: Industrial settings with temperature fluctuations and storage exposure.
Get a Quick Quote for a Rittal 7030571
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030571?
Enquire Now
FAQs
Begin by mounting the CMC III LTE Unit inside the enclosure, securing the RJ12 connections to existing devices, and attaching the aerial. Insert a standard SIM card provided by the customer. Then connect to the CMC Processing Unit using the 2 x RJ12 serial interfaces. Confirm network bands are supported by your SIM and test SMS alert flow to ensure reliable operation.
The unit supports LTE (4G), UMTS (3G), and GSM (2G) networks with an automatic changeover function. If one network path fails or is unavailable, the device automatically switches to an alternate available path to ensure alarm messages are delivered via SMS without manual intervention.
Industries with distributed or remote equipment—such as manufacturing lines, water treatment, and energy infrastructure—benefit from guaranteed SMS alerts when wired networks are unreliable. Use cases include alert forwarding for critical process controls, remote monitoring of isolated assets, and rapid incident response without on-site IT dependencies.
The product data includes classifications such as ETIM 9 and ECLASS 8.0, which aid cataloging and interoperability. For regulatory certifications like CE or IP ratings, consult official Rittal documentation or contact the supplier to confirm current certifications applicable to your region and application.
The LTE Unit reduces downtime by preserving alert delivery even during network outages, lowering incident response times. Maintenance involves periodic SIM management, battery-free operation, and routine verification of RJ12 connections and antenna alignment. Over time, this translates to lower OPEX through fewer failed alarms and improved asset availability.
