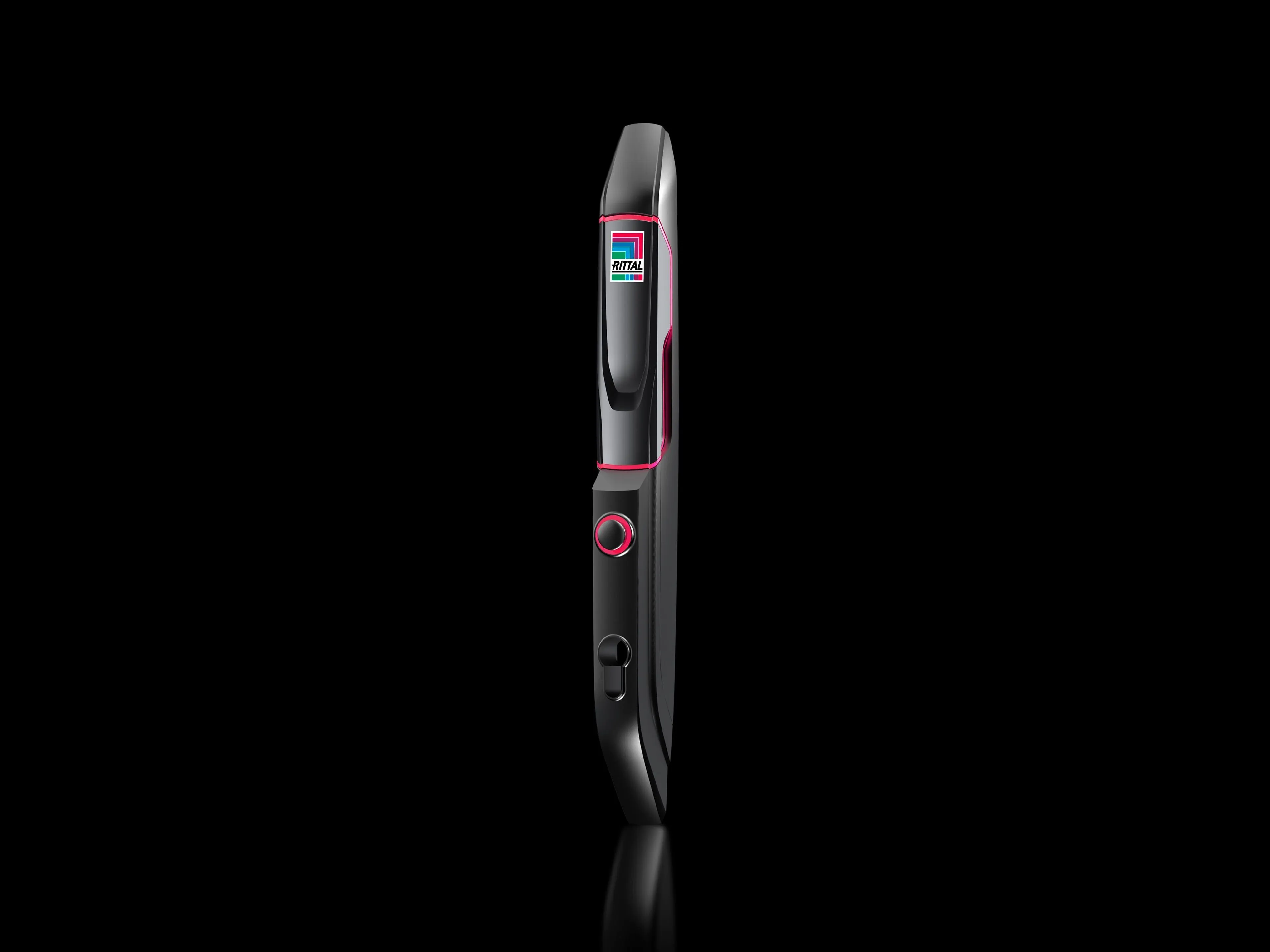

Rittal IT 7030.611 Online Comfort Handle VX - Master Key
Part Number: 7030611
Quick Summary
Rittal IT 7030.611 Online Comfort Handle VX provides remote-access door control for VX enclosure systems. Facilities teams often struggle with secure, auditable access while minimizing downtime during door operations. This solution integrates with CMC III Access Control and IoT interfaces, enabling flexible locking, status display, and event logging. Designed for VX and VX IT enclosures, the compact, rugged handle reduces maintenance costs while improving operational visibility. It supports safety and interoperability standards, helping align with typical industrial compliance expectations and easing long-term automation integration.
Product Information
Extended Description
7030611 Rittal: CMC III Online comforthandle VX, RAL9005
Article number
IT 7030.611
Product description
For door locking, handle lever monitoring and status display. It can be opened directly via a 24 V DC supply voltage or connected to the CMC III or IoT interface via the CMC III Access Control.
Benefits
Remote control and an extensive range of functions for automated access control by linking to the CMC III or IoT interface, e.g. activation via an optional coded lock or transponder reader
Material
Die-cast zinc | Plastic
Colour
RAL 9005
Supply includes
Comfort handle for profile half-cylinder | Connection cable RJ12, 2.9 m | Handle adaptor for VX IT aluminium glazed door and VX IT aluminium sheet steel door, vented (door hinge on right/left) | Assembly parts
With DC
0.06 A
No. of participating PU compact (max.)
2
No. of participating PU (max.)
16
Number subscribers per PDU note
Max. 5 p. for power supply with PoE
Dimensions
Width:Â 41 mm | Height:Â 386 mm | Depth:Â 42 mm
To fit
Enclosure type:Â VX | VX IT
Packs of
1 pc(s).
Weight/pack
1.04 kg
Customs tariff number
83024110
EAN
4028177926059
ETIM 9
EC002627
ECLASS 8.0
27189253
Product description
CMC III Online comforthandle VX, RAL9005
Feature: Remote-control capability via a 24 V DC supply enables direct door operation or remote opening through the CMC III Access Control. Business Impact: Reduces on-site visits and accelerates maintenance windows, improving line uptime. Application: Manufacturing cabinets and data-center enclosures where quick, auditable access is critical. Feature: Master key function with integration options such as coded locks or transponder readers. Business Impact: Strengthens security and provides an auditable access trail for compliance. Application: High-security VX enclosures in process areas. Feature: Seamless CMC III and IoT interface compatibility. Business Impact: Centralized monitoring, remote status checks, and streamlined event logging. Application: Scalable security across multiple VX/VX IT cabinets. Feature: Durable materials—die-cast zinc and plastic—with a RAL 9005 finish. Business Impact: Rugged, corrosion-resistant housing suitable for harsh environments, reducing replacement cycles. Application: Industrial plants and machine rooms. Feature: Built for VX and VX IT fit, with included RJ12 2.9 m connection cable and assembly parts. Business Impact: Faster installation, reduced commissioning time, and easier retrofit. Application: New builds and upgrade projects. Feature: Low power draw—0.06 A with DC supply; supports up to multiple subscribers per PDU when using PoE. Business Impact: Minimal energy footprint and scalable power management for larger cabinets. Application: Data centers and manufacturing lines requiring energy-conscious security devices.
Get a Quick Quote for a Rittal 7030611
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030611?
Enquire Now
FAQs
To install, connect the device to the VX or VX IT enclosure as a door handle module, wire the 24 V DC supply and RJ12 cable (2.9 m) to the CMC III interface, and attach the handle adaptor per the VX door variant. The unit supports existing CMC III Access Control and IoT integration for remote operation.
The device operates from a 24 V DC supply and draws approximately 0.06 A. It ships with a 2.9 m RJ12 connection cable and is designed for direct enclosure wiring or integration into a PoE-enabled PDU where applicable, enabling centralized power management.
Yes. It supports remote control and status display, with options for coded locks or transponder readers via the CMC III or IoT interface. This combination provides an auditable access trail, multi-user support, and scalable security across multiple cabinets in a facility.
The IT 7030.611 is classified under ETIM 9 EC002627 and ECLASS 8.0 27189253, ensuring consistent data categorization. While the data package focuses on technical specs, verify local regulatory requirements for CE/UL interoperability and IP-rated enclosure integration in your region.
Remote access control reduces on-site unlocks and incident response time, lowering labor costs. The compact, robust housing minimizes replacement cycles, and centralized monitoring via CMC III IoT improves preventive maintenance planning and audit readiness for cabinet security.
