Rittal VX IT Cable Routing Set 7030695 - 2 m Duct Cover
Part Number: 7030695
Quick Summary
Rittal VX IT Cable routing set enables optimized internal cabling for VX enclosure doors when using a CMC III handle. On-site installers frequently contend with cluttered ducting and misrouted cables that extend installation times and increase risk of misassembly. This accessory aligns with CE expectations for EU components and leverages ETIM EC000261 and ECLASS 27180101 data to simplify procurement and cross‑system compatibility. Its modular design and adjustable length help shorten duct covers and ring cable holders to fit your unique cabling bundles. By improving cable management inside VX enclosures, it boosts install efficiency, reduces maintenance checks, and supports reliable operation of CMC III configurations.
Product Information
Extended Description
7030695 Rittal: VX IT Cable routing set doors VX IT / VX IE, 2m
Article number
IT 7030.695
Product description
For optimised cable routing on the inside of the doors of the VX enclosure system when a CMC III handle is used.
Benefits
Shorten the duct cover and the ring cable holder to any desired length
Function principle
When installing handles or reader units with cables, these will need to be laid close to the inside of the door. The cables are routed in the aluminium extrusion of the doors.
Material
Plastic
Colour
Pale grey
Supply includes

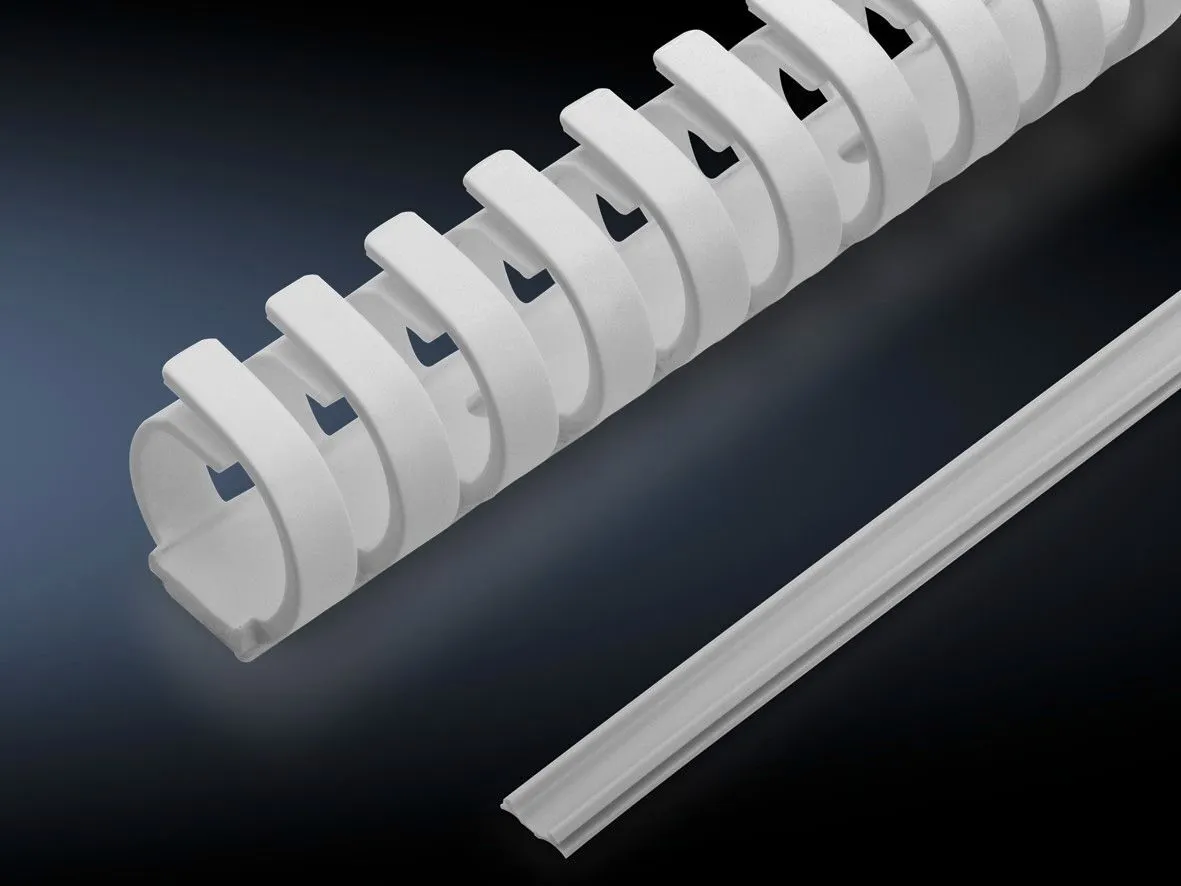

Cable routing set, doors | Duct cover, 2 m | 4 ring cable holders, 0.5 m | Assembly parts
Packs of
1 pc(s).
Weight/pack
0.222 kg
Customs tariff number
73269098
EAN
4028177939264
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX IT Cable routing set doors VX IT / VX IE, 2m
Feature → Business Impact → Application: The VX IT Cable routing set is designed specifically for VX IT / VX IE doors and the CMC III handle, ensuring clean, consolidated cable paths and reduced risk of misrouting. This translates to faster installs and fewer site adjustments, especially in multi-cable scenarios common in data center and industrial automation projects. Application: ideal for control cabinets and enclosure installations where tight door clearances require precise cable routing and a neat internal appearance. Feature → Business Impact → Application: The supply includes a duct cover, 2 m length, four ring cable holders (0.5 m) and assembly parts, reducing parts sourcing steps on site and enabling a single‑visit setup. Application: simplifies project scoping and procurement for VX IT / VX IE door configurations. Feature → Business Impact → Application: Material is plastic with a pale grey finish, which integrates with aluminium VX enclosures while providing non-conductive, corrosion‑resistant routing paths. Application: supports long service life in harsh environments and keeps cable bundles protected. Feature → Business Impact → Application: Weight per pack is 0.222 kg and packs are 1 piece, enabling modular handling and straightforward inventory management. Application: supports lean logistics and scalable installation planning. Feature → Business Impact → Application: The product description and classifications (ETIM 9 EC000261, ECLASS 8.0 27180101, EAN 4028177939264) streamline digital procurement and data synchronization across engineering systems. Application: accelerates quote generation and ERP data alignment for projects using VX IT components.
Get a Quick Quote for a Rittal 7030695
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030695?
Enquire Now
FAQs
The IT 7030.695 Cable routing set is designed for VX IT doors and VX IE configurations, intended to be used with a CMC III handle to manage cables along the inner door surface. It includes a 2 m duct cover, four ring cable holders, and assembly parts to support a clean, repeatable installation in standard VX enclosures.
Supplied as a complete kit, it contains the 2 m duct cover, 4 ring cable holders (0.5 m each), a cable routing set for doors, and necessary assembly parts. This bundle enables precise cable routing, reduces the need for on-site improvisation, and shortens install times by providing ready-to-fit components for orderly cable management.
By providing a dedicated duct cover and ring holders sized for standard VX door depths, installers can route cables close to the door interior with minimal trimming. The ability to shorten the duct cover and holder length to fit your cabling bundle reduces waste and rework, delivering faster builds and improved reliability in complex VX configurations.
The data provided lists ETIM EC000261 and ECLASS 27180101 classifications and the EAN, but does not explicitly state CE or IP ratings for this specific accessory. For regulatory compliance, ensure the overall VX enclosure assembly complies with your regional standards, and verify CE/IP applicability through the enclosure manufacturer’s documentation and your project requirements.
The product is supplied in packs of 1 with a weight of 0.222 kg per pack. This compact packaging simplifies inventory management and supports modular procurement strategies for VX IT / VX IE installations.
