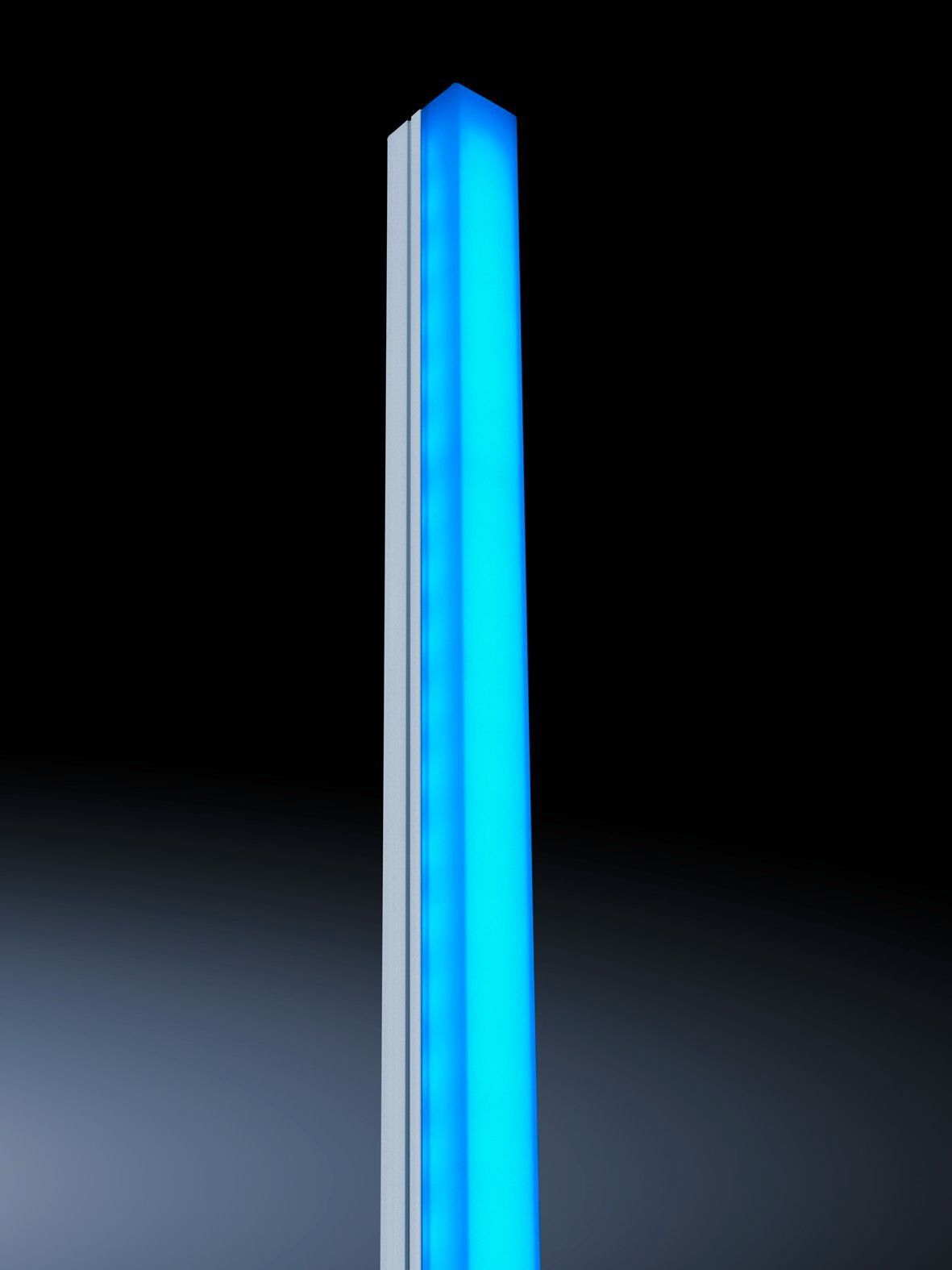

Rittal IT 7030.950 LED Light Strip - 24 V RGB (CMC III)
Part Number: 7030950
Manufacturer
Rittal
Part number
7030950
Category
Alt Part Number
IT 7030.950
Quick Summary
The Rittal IT 7030.950 LED light strip provides RGB colour status indicators for IT network and server racks. In dense rack environments, quick fault detection is a challenge, and operators benefit from immediate visual cues that reveal status changes at a glance. It aligns with industrial standards through Protection class I design, ETIM EC000321, and ECLASS 27189241, enabling reliable integration with existing cabinet systems. By offering stand-alone operation from a 24 V DC supply and activation via the CMC III, it reduces wiring complexity and downtime while supporting flexible diagnostics in data centers. This combination of visibility, reliability, and compatibility makes it a cost-effective solution for proactive rack management and incident response.
Product Information
Extended Description
7030950 Rittal: LED light strip, for activation via the CMC III system, the strip contains the RGB colours: red, green, blue
Article number
IT 7030.950
Product description
For colour status display within a network/server rack. If an error occurs, the light strip will change to the set colour.
Benefits
Stand-alone mode is achieved by connecting the RGB LED light strip directly to a 24 V (DC) power pack
Function principle
Activation via CMC III
Material
Aluminium | Plastic
Supply includes
LED light strip including magnetic attachment | Connection cable 0.1 m | Connection cable 2.4 m with four pre-assembled connectors for the CMC III I/O unit
Ballast
Wide-range electronic ballast
Connection options
Power supply via connectors
Light
LEDs
Protection class
I (PE conductor)
Light – installation type
Screw-fastening
With DC
1.1 A
Dimensions
Width: 18 mm | Height: 1,830 mm | Depth: 24.2 mm
Sockets
D, earthing-pin (type F, CEE 7/4)
Rated operating voltage
24 V (DC)
Socket version
D, earthing-pin (type F, CEE 7/4)
Packs of
1 pc(s).
Weight/pack
1.28 kg
Customs tariff number
85311095
EAN
4028177951563
ETIM 9
EC000321
ECLASS 8.0
27189241
Product description
LED light strip, for activation via the CMC III system, the strip contains the RGB colours: red, green, blue
Activation via CMC III enables centralized control of status signaling. This reduces configuration steps and ensures consistent signaling across multiple cabinets. Application: data centers requiring uniform RGB status indicators in server racks. RGB LEDs provide distinct red, green and blue signals to communicate conditions at a glance. Business impact: faster fault identification and reduced mean time to repair. Application: network and storage cabinets where quick visibility translates to improved service levels. Stand-alone mode supported by a direct 24 V (DC) power supply minimizes reliance on centralized control rails. Business impact: easier installation in remote or standalone cabinets, lowering wiring and maintenance costs. Application: edge racks or isolated enclosures needing independent status signaling. The unit’s screw-fastening installation and robust protection class I design offer secure mounting in industrial environments. Application: 19-inch rack enclosures and cabinet systems requiring reliable, long-term signaling. Includes magnetic attachment and pre-assembled cables for rapid integration with the CMC III I/O unit. Business impact: faster commissioning and reduced field labor. Application: data centers deploying CMC III-based monitoring networks.
Get a Quick Quote for a Rittal 7030950
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030950?
Enquire Now
FAQs
The IT 7030.950 is designed for screw-fastening installation with standard cabinet rails. It has a compact 18 mm profile and a height of 1,830 mm to fit tall cabinet sections, and it includes a magnetic attachment option for flexible mounting in compatible layouts.
The light strip operates at 24 V DC and draws about 1.1 A, supported by a wide-range electronic ballast. It is supplied with 0.1 m and 2.4 m cables for CMC III I/O connections, enabling straightforward integration into existing monitoring networks.
Yes. The RGB LED strip is intended for colour status display within network/server racks, changing colors to indicate conditions or errors. Activation via CMC III ensures consistent behavior across multiple cabinets, improving fault visibility and response times.
The product adheres to industry-standard safety classifications, including Protection class I (PE conductor). It also lists ETIM 9 EC000321 and ECLASS 8.0 27189241 codes, which support integration with typical IT cabinet data models and procurement systems.
With its durable construction, centralized CMC III activation, and RGB signaling, the strip reduces downtime by speeding visual fault detection and simplifies installation. Stand-alone 24 V DC operation lowers wiring complexity, delivering faster deployments and lower lifecycle costs.
