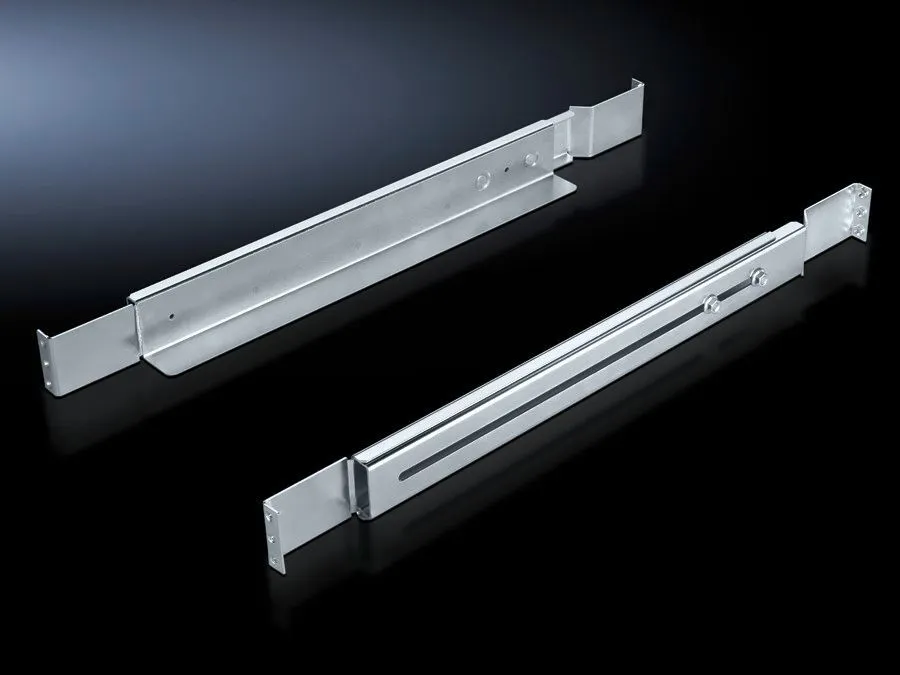

Rittal 7063750 DK Slide Rail - 20 kg static load
Part Number: 7063750
Quick Summary
Rittal DK 7063750 slide rail is a mounting accessory that enables adjustable 19\" mounting for server and network enclosures. Too often, field upgrades suffer downtime because rails don’t align with varying equipment depths or mounting levels. This solution aligns with ETIM 7.0 EC002625 and ECLASS 8.0 27189234 specifications, and carries cradle-to-gate PCF Category B footprint. Its 30 mm per-side contact surface and adjustable 390–550 mm level spacing support flexible data-center and IT rack configurations, while the zinc-plated sheet steel guarantees long service life. For procurement teams, the combination of compact packaging, no loss of U, and straightforward installation translates into faster projects and lower total cost of ownership.
Product Information
Extended Description
7063750 Rittal: DK Slide rail, Support surface Width: 30 mm, 1 U, depth-variable, 20 kg, static, distance between levels: 390-550 mm, For TS IT, TE
Article number
DK 7063.750
Product description
For direct attachment to the 482.6 mm (19") system punchings on the mounting angles. The slide rails are pulled out to the required length and secured between the front and rear mounting level on the 482.6 mm (19") pitch pattern.
Benefits
No loss of U
Applications
For mounting on the front mounting level
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
For attachment between the front and rear 482.6 mm (19") mounting level
Load capacity
20 kg static load
Note
Effective contact surface 30 mm per side
Contact surface
Width: 30 mm
Distance between levels
390 ‐ 550 mm
Packs of
2 pc(s).
Weight/pack
1.98 kg
PCF/PU (cradle-to-gate)
7.5 kg CO2 eq (Cat B)
Note on the PCF class
Category B: PCF value (cradle-to-gate) approximated based on product weight and self-declared
Customs tariff number
73269098
EAN
4028177625440
ETIM 7.0
EC002625
ECLASS 8.0
27189234
Product description
DK Slide rail, Support surface Width: 30 mm, 1 U, depth-variable, 20 kg, static, distance between levels: 390-550 mm, For TS IT, TE
Feature: Direct attachment to 482.6 mm (19\") system punchings on mounting angles. Business Impact: Speeds installation and reduces field labor, delivering faster deployment of server and network enclosures. Application: Ideal for front mounting level setups in 19\" racks and IT cabinets. Feature: Depth-variable design with 390–550 mm spacing. Business Impact: Accommodates a wide range of equipment depths without custom rails, lowering procurement complexity. Application: Use in TS IT and TE configurations where depth flexibility is required. Feature: 30 mm per-side contact surface and 1 U height. Business Impact: Maintains robust support while preserving dedicated rack space, avoiding U loss. Application: 19\" rack mounting scenarios requiring stable, accessible draw-out. Feature: Zinc-plated sheet steel and 20 kg static load. Business Impact: Ensures durability and predictable performance in harsh environments, reducing maintenance cycles. Application: Data centers and industrial IT rooms with regular access. Feature: Supply includes assembly parts; packs of 2. Business Impact: Simplifies stocking and reduces on-site assembly time, lowering project risk. Application: Quick retrofits and multi-rail installations in expanding enclosures.
Get a Quick Quote for a Rittal 7063750
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7063750?
Enquire Now
FAQs
Install by attaching directly to the 19 inch system punchings on the mounting angles, extend the rail to the required length, and secure it between the front and rear mounting levels. The package includes assembly parts, and the rail supports up to 20 kg static load with a 1U height, ensuring a secure, vibration-resistant pull-out for IT equipment.
Key specs include 30 mm contact surface per side, 1 U height, depth-variable design, 390–550 mm distance between levels, 20 kg static load, zinc-plated sheet steel, and compatibility with TS IT and TE configurations. It ships in packs of two with assembly parts included.
Yes. The DK 7063.750 is designed for direct attachment to 482.6 mm (19") system punchings on mounting angles and supports front-to-rear level mounting. It is suitable for TS IT and TE environments, providing flexible mounting options in 19 inch racks.
Environmental data includes cradle-to-gate PCF 7.5 kg CO2 eq (Cat B). It aligns with ETIM 7.0 EC002625 and ECLASS 8.0 27189234, with a zinc-plated finish for corrosion resistance. The product is documented with EAN 4028177625440 and a customs tariff number 73269098.
The rail preserves U space (no loss of U) while enabling depth flexibility, reducing hardware rework. Quick front-to-rear mounting and durable zinc-plated steel minimize downtime during upgrades and routine maintenance, contributing to lower total cost of ownership and faster project completion in busy data centers.
