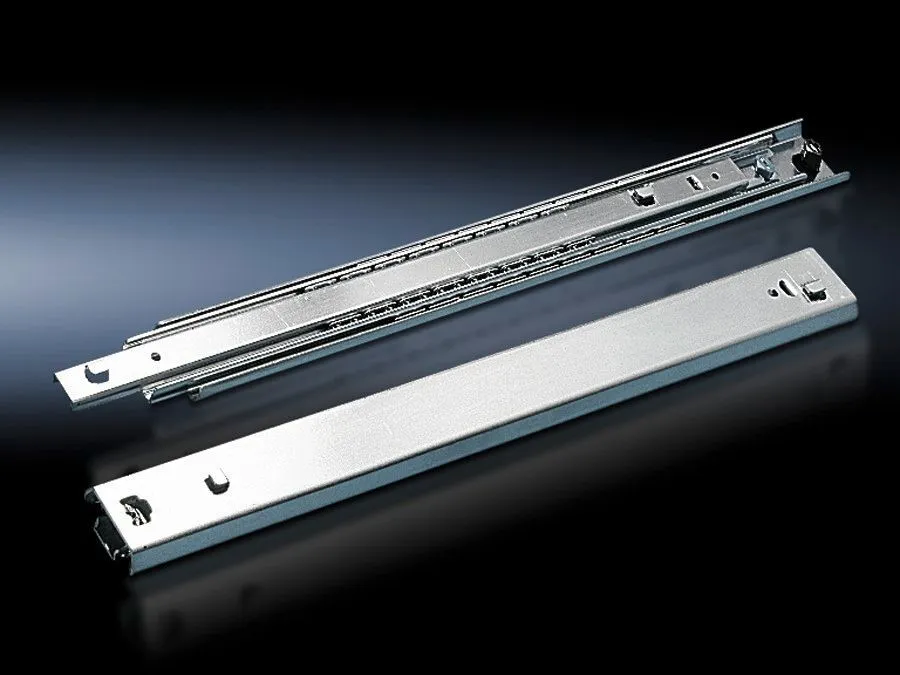

Rittal DK 7065.000 Telescopic slides - 100 kg load
Part Number: 7065000
Quick Summary
DK 7065.000 telescopic slides enable full withdrawal for component shelves in Rittal enclosures. Replacing fixed shelves used to be time consuming and risked compromising enclosure integrity. In practice, CE marking, IP-rated enclosures, and SIL considerations are critical when upgrading cabinet hardware. This retrofit accessory delivers reliable performance with a 100 kg load rating and 500 mm depth compatibility, streamlining retrofits and improving operator access. Designed for easy installation, each pack contains two slides in sheet steel with a zinc-plated finish, supporting efficient maintenance and longer service life.
Product Information
Extended Description
7065000 Rittal: DK Telescopic slides for component shelf, 100 kg, For D: 500 mm
Article number
DK 7065.000
Product description
Fixed component shelves are easily converted to full withdrawal. For this purpose, the existing fastening bolts or mounting rails (heavy-duty version) are exchanged for the telescopic slides.
Material
Sheet steel
Surface finish
Zinc-plated
Suitable for component shelf depth
500 mm
Load capacity
100 kg
Note
For installation and locking on a 25 mm pitch pattern in the enclosure depth.
Packs of
2 pc(s).
Weight/pack
3.036 kg
PCF per pack (cradle-to-gate)
11.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177123878
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Telescopic slides for component shelf, 100 kg, For D: 500 mm
Feature: Full withdrawal converts fixed shelves to full accessibility, enabling faster servicing and easier component handling. Business impact: Reduces downtime during maintenance and improves cabinet ergonomics in busy control rooms. Application: Ideal for retrofitting 500 mm deep component shelves in Rittal enclosures. Feature: Heavy-duty capability with a 100 kg load rating. Business impact: Supports heavier components without sagging, enhancing safety and reducing equipment wear. Application: Suitable for industrial cabinets housing power supplies and distribution modules. Feature: Material and finish—sheet steel, zinc-plated. Business impact: Delivers corrosion resistance in harsh environments, extending service life and minimizing maintenance costs. Application: Enclosures in manufacturing and outdoor installations. Feature: Pitch-pattern compatibility—designed for installation and locking on a 25 mm pitch pattern in the enclosure depth. Business impact: Simplifies mounting using existing hardware, reducing installation time and risk of misalignment. Application: Fits standard Rittal enclosure depths and accessory rails. Feature: Packaged in convenient sets—2 slides per pack, weight per pack 3.036 kg, with cradle-to-gate PCF of 11.6 kg CO2 eq (Cat B). Business impact: Easy handling, predictable logistics, and lower environmental impact in procurement. Application: OEM assembly lines and maintenance stocking.
Get a Quick Quote for a Rittal 7065000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7065000?
Enquire Now
FAQs
To install, replace the existing fastening bolts or mounting rails (heavy-duty version) with the telescopic slides. Align the slides to the 25 mm pitch pattern in the enclosure depth, and use the two slides per pack as supplied. This keeps mounting straightforward while achieving full withdrawal.
DK 7065.000 supports up to 100 kg per pair of slides and is made from sheet steel with a zinc-plated surface finish, delivering durability and corrosion resistance suitable for industrial cabinet environments.
Yes. The slides are designed for a 500 mm depth and allow fixed component shelves to convert to full withdrawal, leveraging existing mounting components and a heavy-duty 100 kg rating for reliable operation.
Key classifications include ETIM EC002620 and ECLASS 27189261. The PCF cradle-to-gate value is 11.6 kg CO2 eq (Category B). The product carries a universal EAN/GTIN and a customs tariff number of 73269098 for cross-border trade.
Upgrading provides faster access to mounted components, reduces maintenance time, and improves ergonomic handling. The two-pack configuration simplifies stocking and installation, while the 100 kg capacity supports heavier assemblies, delivering meaningful uptime and total cost of ownership improvements.
