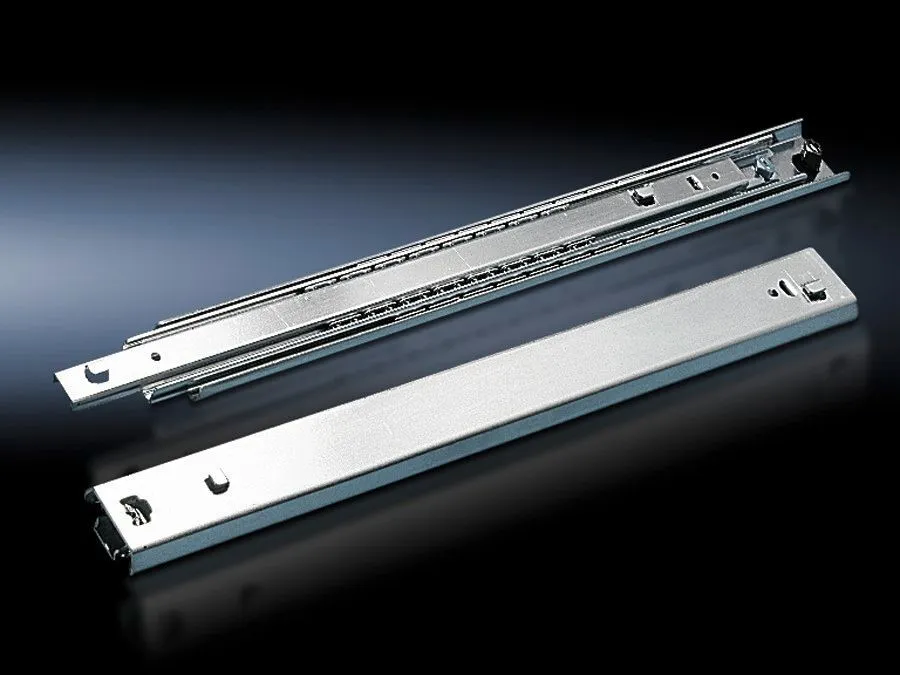

Rittal DK 7066.000 Telescopic slides - 100 kg capacity
Part Number: 7066000
Quick Summary
Rittal DK 7066.000 telescopic slides for component shelves extend access inside electrical enclosures. Legacy fixed shelves can be hard to reach, and retrofitting to full withdrawal is disruptive and costly. The product aligns with ETIM EC002620 and ECLASS 27189261 classifications, and carries a PCF Category B sustainability note. This retrofit solution reduces downtime, speeds routine maintenance, and supports a 600 mm depth in 25 mm pitch enclosures. By enabling smooth, heavy-duty withdrawal, it delivers lasting workflow improvements for panel builders and system integrators, while preserving the enclosure's mechanical integrity and safety margins.
Product Information
Extended Description
7066000 Rittal: DK Telescopic slides for component shelf, 100 kg, For D: 600 mm
Article number
DK 7066.000
Product description
Fixed component shelves are easily converted to full withdrawal. For this purpose, the existing fastening bolts or mounting rails (heavy-duty version) are exchanged for the telescopic slides.
Material
Sheet steel
Surface finish
Zinc-plated
Suitable for component shelf depth
600 mm
Load capacity
100 kg
Note
For installation and locking on a 25 mm pitch pattern in the enclosure depth.
Packs of
2 pc(s).
Weight/pack
3.67 kg
PCF per pack (cradle-to-gate)
14 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177123892
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Telescopic slides for component shelf, 100 kg, For D: 600 mm
Feature: 100 kg load capacity and heavy-duty construction. Business Impact: Ensures stable, durable full withdrawal as shelves are accessed frequently, reducing sag and misalignment. Application: Ideal for high-use component shelves in 600 mm deep enclosures, delivering reliable operation in electrical cabinets.Feature: Compatible with 600 mm deep component shelves and 25 mm pitch installation. Business Impact: Simplifies retrofit projects by swapping fastening bolts or heavy-duty mounting rails for telescopic slides, lowering labor costs. Application: Works with standard 25 mm pitch patterns found in many Rittal enclosures.Feature: Sheet steel with zinc-plated finish. Business Impact: Delivers corrosion resistance and wear protection, extending service life in factory and workshop environments. Application: Suitable for harsh industrial conditions and long-term installation in control cabinets.Feature: Pack of two slides with weight per pack 3.67 kg. Business Impact: Eases handling during upgrades, reducing shipment and stocking complexity. Application: Install on two sides of a 600 mm shelf to achieve balanced full withdrawal and smooth operation.Feature: Sustainability and standards data: ETIM EC002620, ECLASS 27189261, PCF category B. Business Impact: Supports procurement transparency, regulatory alignment, and lifecycle analysis. Application: Valuable for eco-conscious projects and supplier qualification in industrial automation ecosystems.
Get a Quick Quote for a Rittal 7066000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7066000?
Enquire Now
FAQs
DK 7066.000 is designed for component shelves with a 600 mm depth and a 25 mm pitch pattern. It requires replacing the existing fastening bolts or mounting rails with the telescopic slides in a heavy-duty setup. The two-pack design simplifies parallel mounting, enabling balanced full withdrawal while preserving enclosure integrity.
The system provides a 100 kg load capacity per pair of slides, is manufactured from sheet steel with a zinc-plated surface for corrosion resistance, and is suitable for 600 mm deep component shelves. Each pack contains 2 slides, with a combined weight of approximately 7.34 kg per pack.
Yes. By exchanging the existing fastening bolts or mounting rails with the DK 7066.000 telescopic slides, fixed shelves can be upgraded to full withdrawal. This retrofit supports easier access, quicker maintenance, and preserves the enclosure’s depth alignment for 25 mm pitch patterns.
DK 7066.000 aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, ensuring consistent data for procurement systems. It also notes a PCF category B sustainability value, useful for life-cycle assessment and supplier qualification in eco-conscious projects.
With a 100 kg capacity and reversible retrofit from fixed to full withdrawal, maintenance downtime is reduced and service workflows improve. The two-pack design minimizes stocking, and the zinc-plated steel offers durable protection, contributing to lower replacement and maintenance costs over the product’s life cycle.
