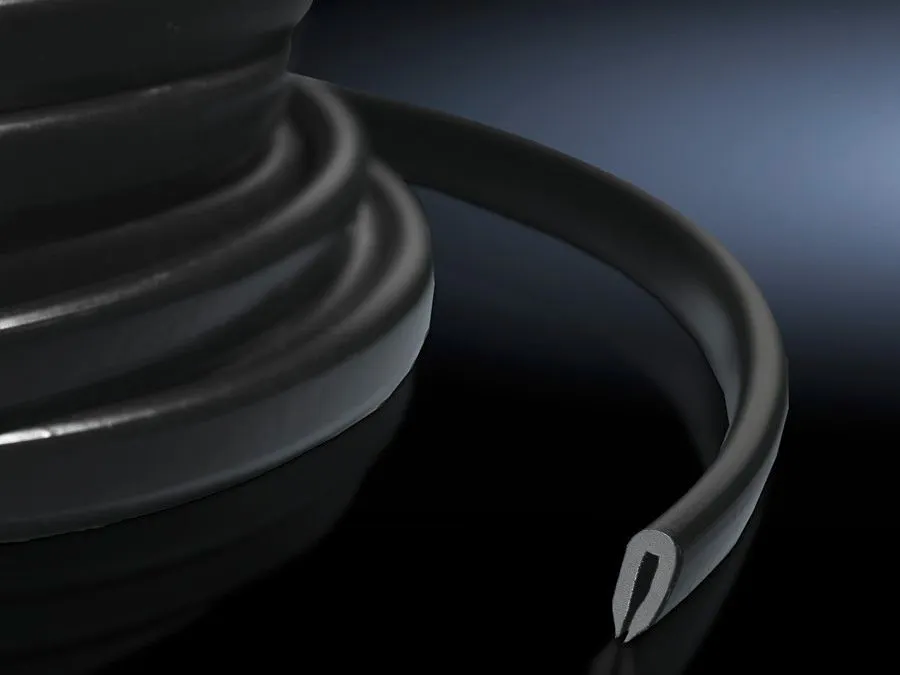

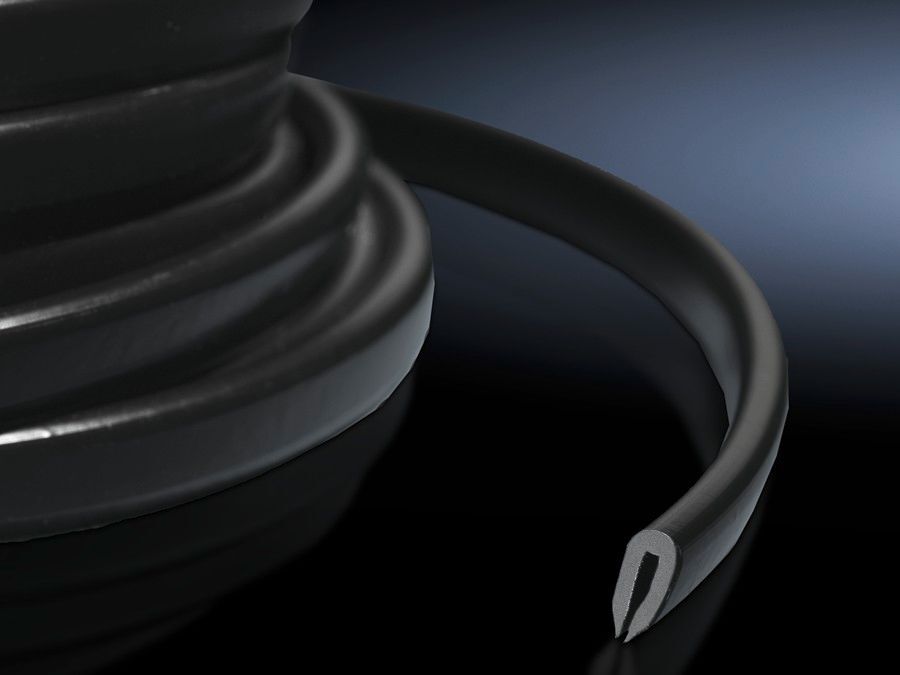

Rittal 7072100 Edge Protector - 10 m PVC edge guard
Part Number: 7072100
Quick Summary
Rittal edge protector DK 7072.100 protects cables by covering cut-out edges in control cabinets. Sharp cut-out edges can nick cables and cause downtime; this protector simplifies field installation and reduces rework. The solution aligns with ETIM EC002624 and ECLASS 27189265 classifications, supporting consistent engineering data and procurement data across systems. In addition to robust edge protection, its 10 m length and cut-to-fit capability offer practical value for ongoing maintenance and scalable cabinet projects in industrial automation.
Product Information
Extended Description
7072100 Rittal: DK Edge protector, L: 10 m, May be cut individually to required length, For thicknesses: 1,0 - 2,0 mm
Article number
DK 7072.100
Product description
For covering sharp edges of cut-outs. Provides protection from injuries and prevents damage to inserted cables. The edge protector is suitable for material thicknesses of approx. 1.25 – 2.0 mm, and may be cut to length individually.
Material
Plastic PVC
Colour
Black
Length
10 m
Dimensions
Width:Â 6 mm | Height:Â 11 mm | Length:Â 10 m
Packs of
1 pc(s).
Weight/pack
0.52 kg
Customs tariff number
39162000
EAN
4028177246614
ETIM 9
EC002624
ECLASS 8.0
27189265
Product description
DK Edge protector, L: 10 m, May be cut individually to required length, For thicknesses: 1,0 - 2,0 mm
Feature: Long, cut-to-length edge protection provides a durable solution that can be tailored to fit individual cabinet cut-outs. Business Impact: Reduces cable abrasion and injury risk while simplifying field installs, lowering labor costs. Application: Suitable for control cabinets and electrical enclosures where edge protection is essential. Feature: PVC edge protector in black with precise dimensions (Width 6 mm, Height 11 mm, Length 10 m). Business Impact: Consistent fit and material compatibility improve reliability and inventory planning. Application: Ideal for standard 1.0–2.0 mm thick panel edges across automation panels. Feature: Easy customization with length-trimming capability. Business Impact: Eliminates waste and speeds up assembly in high-mix environments. Application: On-site trimming for bespoke cabinet configurations. Feature: ETIM EC002624 and ECLASS 27189265 compliant. Business Impact: Streamlines procurement data management and cross-vendor compatibility. Application: Engineering data alignment for purchasing and integration. Feature: Packaging and spec clarity (1 pc per pack, 0.52 kg, EAN 4028177246614, customs tariff 39162000). Business Impact: Simplifies logistics, cost planning, and regulatory compliance. Application: Global sourcing and inventory control for electrical installations. Industry context: In automation environments, robust edge protection supports uptime, safety, and cost-efficient cabinet design.
Get a Quick Quote for a Rittal 7072100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7072100?
Enquire Now
FAQs
The edge protector is designed for panel edges with material thicknesses around 1.0–2.0 mm and comes as a 10 m length with a cross-section of 6 by 11 mm. It can be cut to the required length to fit control cabinets, electrical enclosures, and panel cut-outs, aligning with typical cabinet edge requirements.
By covering sharp cut-out edges, the edge protector reduces cable abrasion and the risk of damage during installation and maintenance. This simple addition decreases injury potential for technicians and enhances overall cabinet reliability and uptime.
Yes. The DK 7072.100 edge protector is classified under ETIM EC002624 and ECLASS 27189265, which supports consistent data exchange and procurement workflows across vendors and systems.
It may be cut to the required length to fit a given edge and is supplied in a single 10 m length. For best results, cut the length to match the edge and press along the edge to ensure a secure fit in control cabinets and panel cut-outs.
Using the edge protector reduces cable wear and the likelihood of damage at cut-outs, lowering maintenance and rework costs. It also contributes to safer maintenance practices and improved cabinet reliability, supporting higher uptime and predictable maintenance budgeting.
