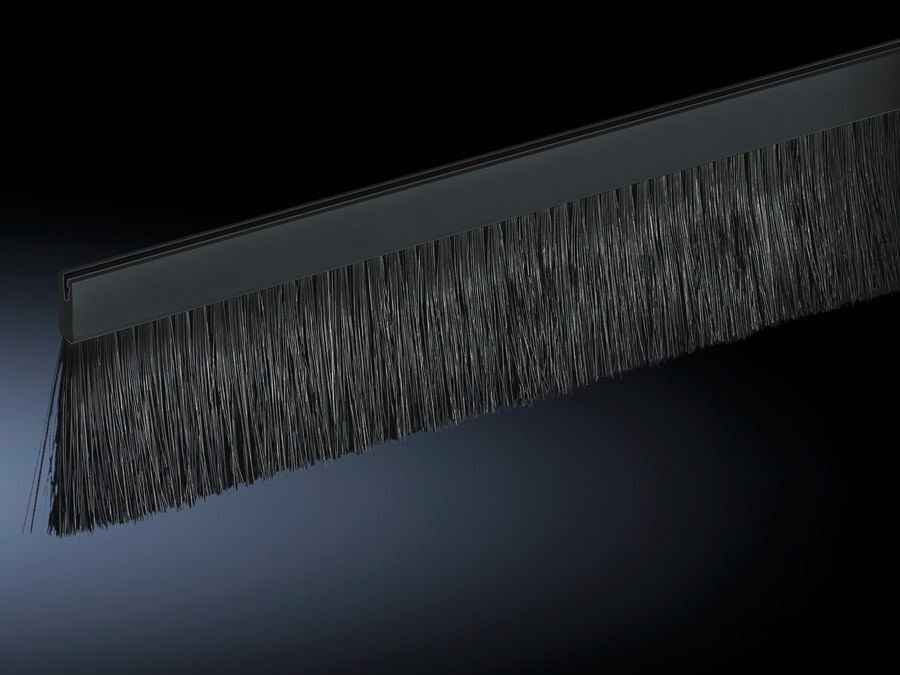

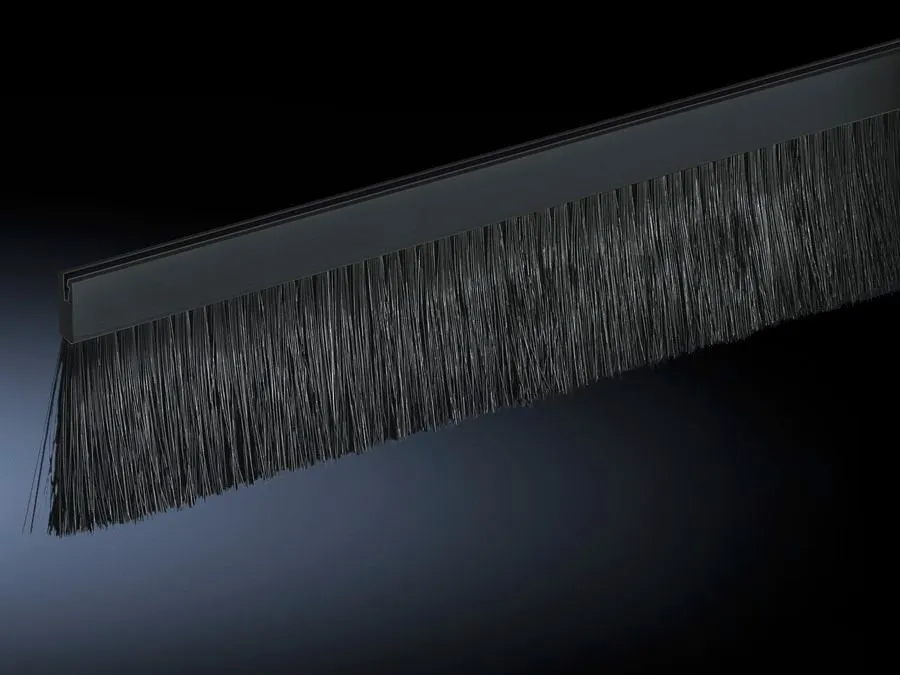

Rittal DK 7072.200 Brush Strip - 38 mm Cut-Out
Part Number: 7072200
Quick Summary
Brush strip helps you finish cable routing openings in Rittal enclosures with a clean, professional look and secure cable management. One common challenge is achieving neat cut-outs without compromising enclosure integrity or increasing install time. This accessory aligns with CE-conscious assembly and UL 94-HB material standards, while compatibility across 0.6–1.5 mm metal panels supports scalable panel customization. By simplifying installation and providing a tidy, dust-reducing finish, it lowers maintenance costs and accelerates panel upgrades, making it a strategic choice for manufacturing lines and data centers.
Product Information
Extended Description
7072200 Rittal: DK Brush strip, L: 2 m, bristle length: 30 mm, for metal thickness: 0.6-1.5 mm
Article number
DK 7072.200
Product description
For individual installation of enclosure panels, gland plates and panels. Cut-outs for cable routing at any given positions in the side panel, rear panel, doors, roof and base plate may be finished off attractively by simply attaching the brush strip.
Benefits
Snap-on surface: 10 mm
Function principle
Maximum cut-out height: 38 mm
Material
Plastic sheathing: 18 mm | Brush strip: Plastic, UL 94-HB
Bristle length
30 mm
Length
2 m
Dimensions
Length: 2 m
For material thicknesses
0.6 ‐ 1.5 mm
Packs of
1 pc(s).
Weight/pack
0.43 kg
Customs tariff number
96035000
EAN
4028177221642
ETIM 9
EC012298
ECLASS 8.0
27142421
Product description
DK Brush strip, L: 2 m, bristle length: 30 mm, for metal thickness: 0.6-1.5 mm
Feature → Business Impact → Application: The 2 m brush strip covers long runs along enclosure openings, enabling quick, consistent finishes and reducing the need for multiple parts. This translates to lower labor cost and faster panel upgrades in high-volume assembly lines; ideal for side and rear panels, doors, and gland plates in Rittal enclosures. Feature → Business Impact → Application: Bristle length of 30 mm provides a flexible seal that adapts to varied cut-outs, improving dust control and environmental protection without additional components; useful for control cabinets housing sensitive electronics in climate-controlled facilities. Feature → Business Impact → Application: For metal thicknesses of 0.6–1.5 mm, the strip installs securely with a snug fit, ensuring long-term reliability in rugged environments and reducing risk of cable abrasion during operation. Feature → Business Impact → Application: A 10 mm snap-on surface speeds installation, cutting downtime and enabling rapid retrofits during maintenance windows; supports quick changes to panel configurations in manufacturing lines. Feature → Business Impact → Application: UL 94-HB plastic brush strip and durable plastic sheathing provide fire-rated material compatibility and robust physical protection, aiding compliance during audits and simplifying procurement for shared electrical rooms. Feature → Business Impact → Application: Pack configuration (1 pc) and a weight of 0.43 kg per pack streamline logistics and inventory planning for distributors, installers, and OEMs integrating gland plates and enclosure panels across multiple projects.
Get a Quick Quote for a Rittal 7072200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7072200?
Enquire Now
FAQs
To install, align the brush strip with the cut-out area on the enclosure panel, ensure the metal thickness is within 0.6–1.5 mm, then press the 10 mm snap-on surface to engage. The 2 m length allows coverage of extended openings, and the bristle length of 30 mm provides a reliable seal. Verify the maximum cut-out height of 38 mm to avoid interference with components.
The DK 7072.200 is designed for enclosure panels with metal thicknesses of 0.6 to 1.5 mm. This range supports common Rittal panel dimensions while maintaining a secure fit and effective sealing around cable routing cut-outs, gland plates, and doors.
Yes. The brush strip uses plastic with UL 94-HB rating for flame resistance, and the assembly is designed for compatibility with CE-listed enclosure systems. For project-specific certifications like SIL or IP, confirm requirements in your risk assessment and consult the official datasheet.
The 10 mm snap-on surface allows rapid, tool-free installation, reducing downtime during panel changes. Its 2 m length minimizes the number of joins, improving consistency across panels and gland plates. The result is faster executions for enclosure upgrades and lower labor costs in high-volume manufacturing environments.
Verify model DK 7072.200, length 2 m, bristle length 30 mm, and material specs (plastic, UL 94-HB). Confirm compatibility with panel thickness (0.6–1.5 mm) and the maximum cut-out height (38 mm). Also note packaging (1 pc) and weight (0.43 kg) for logistics and procurement alignment.
