Rittal TS 7091.100 C-profile rail fixing - Zinc-plated
Part Number: 7091100
Quick Summary
Rittal TS 7091.100 C-profile rail fixing is designed to attach C rails quickly to TS enclosures. When wiring or modular components change, installers encounter delays and alignment issues that slow projects and erode margin. Note: the data provided does not specify CE, SIL, or IP ratings; verify your compliance requirements with your supplier. This fixing uses sheet steel with a zinc-plated finish to resist corrosion in typical enclosure environments, and it’s compatible with horizontal TS sections. By simplifying mounting and stock handling, it delivers tangible business value through faster installs, repeatable results, and lower field rework across multiple enclosures.
Product Information
Extended Description
7091100 Rittal: TS Fixing element C-profile rail, For TS rail horizontal
Article number
TS 7091.100
Product description

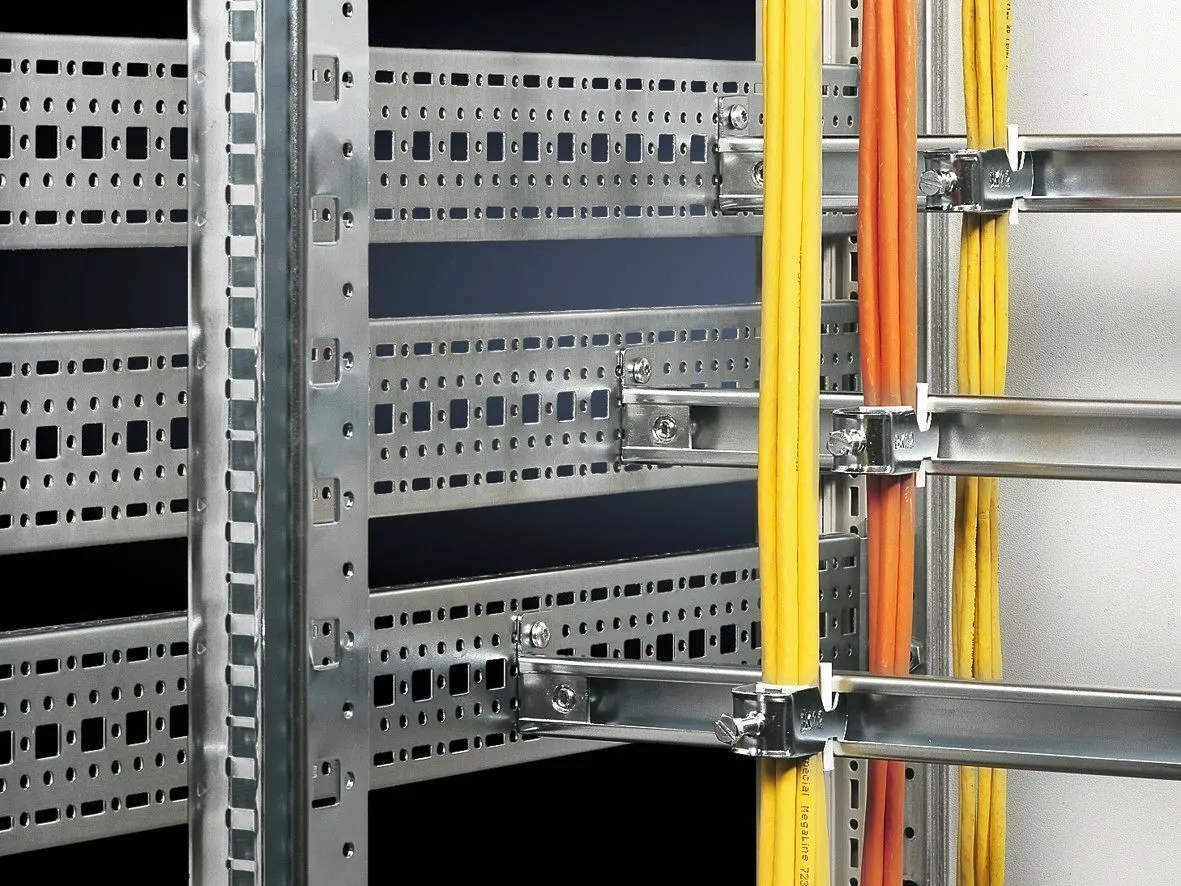

For fast attachment to the horizontal enclosure section or for cascaded cable routing between two horizontal punched sections with or without mounting flanges.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Angle bracket, left | Angle bracket, right | Assembly parts
Installation options
On the horizontal TS enclosure section
Assembly instruction
Two angle brackets are needed to secure each C rail
To fit enclosure type
TS
Packs of
8 pc(s).
Weight/pack
0.043 kg
Customs tariff number
73269098
EAN
4028177802032
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Fixing element C-profile rail, For TS rail horizontal
Feature → Business Impact → Application: The C-profile rail fixing is engineered for rapid attachment to horizontal TS enclosure sections, reducing install time and ensuring precise alignment, which lowers commissioning risk in panel builds. Application: ideal for new installations and retrofits where speed and reliability are paramount. Feature → Business Impact → Application: Made from sheet steel with a zinc-plated finish, it provides corrosion resistance in standard indoor environments, extending service life and reducing maintenance cycles. Application: suitable for control cabinets exposed to routine environmental exposure in manufacturing cells. Feature → Business Impact → Application: Supply includes left and right angle brackets plus assembly parts, enabling a complete mounting kit in a single SKU, simplifying procurement and on-site workflows. Application: minimizes SKU sprawl and accelerates stocking for maintenance teams. Feature → Business Impact → Application: Packs of eight with a total weight of 0.043 kg per pack support compact inventory management and easier shipping. Application: ideal for high-turnover parts cabinets and contract manufacturing environments. Feature → Business Impact → Application: Installation options specify mounting on horizontal TS enclosure sections and two brackets per C rail, delivering secure, parallel rail alignment. Application: reduces misalignment risk during cascaded cable routing between adjacent punched sections. Feature → Business Impact → Application: Designed for compatibility with TS rails, enabling reliable, scalable cable management and modular expansion in evolving automation architectures. Application: supports lean changeovers in flexible manufacturing cells and data centers. Note: ETIM 9 and ECLASS 8.0 classifications (EC002625 and 27189234) help with digital procurement workflows and catalog enrichment.
Get a Quick Quote for a Rittal 7091100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7091100?
Enquire Now
FAQs
To install the TS 7091.100, position two angle brackets on the horizontal TS enclosure section and secure the C-profile rail with the included left and right brackets and assembly parts. Use two brackets per rail to ensure proper alignment and stability. This method reduces movement during cable routing and simplifies future maintenance.
Key specifications include the article number TS 7091.100, material sheet steel with a zinc-plated surface, and supply that includes left and right angle brackets plus assembly parts. It is installed on horizontal TS enclosure sections and comes in packs of eight, with a weight per pack of 0.043 kg. EAN is 4028177802032 and customs tariff is 73269098.
Yes. TS 7091.100 is designed for TS enclosures and is installed on horizontal TS enclosure sections using two angle brackets per C rail. It is compatible with C-profile rails and supports applications such as cascaded cable routing between horizontal punched sections, improving mounting reliability and future scalability.
The provided data does not specify CE, SIL, or IP ratings for this product. Verify your project’s regulatory requirements with the supplier. The data does include ETIM 9 (EC002625) and ECLASS 8.0 (27189234) classifications, which help with digital procurement and catalog enrichment but are not substitute certifications.
Using TS 7091.100 can reduce installation time and cut field rework due to misalignment, thanks to precise two-bracket mounting and included hardware. The zinc-plated sheet steel construction offers durable, corrosion-resistant performance, lowering maintenance intervals. Pack efficiency (eight per pack at 0.043 kg) simplifies inventory control and supports lean maintenance workflows.
