Rittal 7094.130 DK Screws - Multi-tooth, 3 Nm Max torque
Part Number: 7094130
Manufacturer
Rittal
Part number
7094130
Alt Part Number
EL 7094.130
Quick Summary

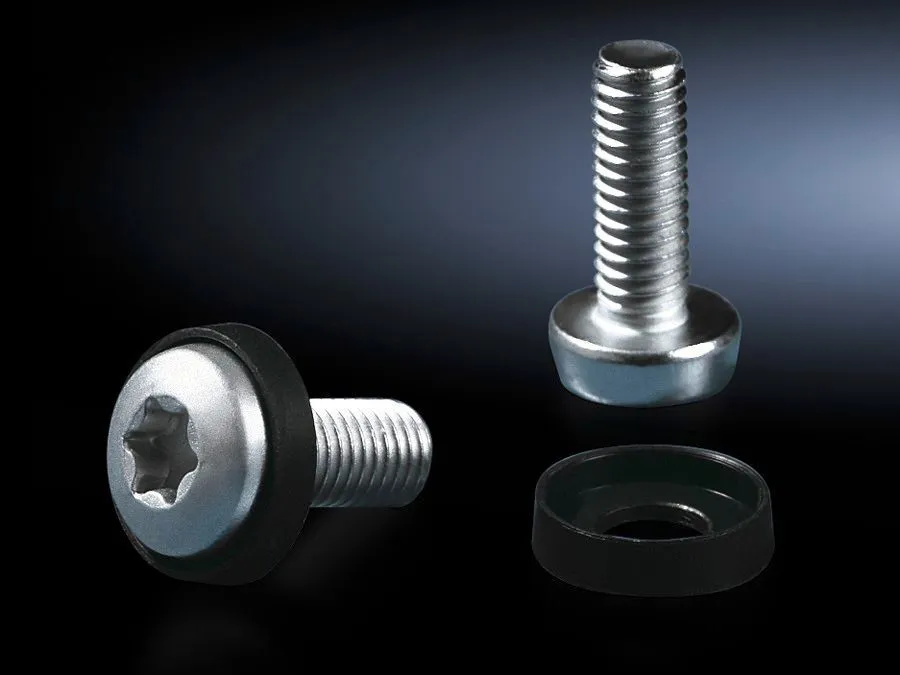

Rittal 7094.130 DK multi-tooth screws are designed for secure mounting of 19-inch electronic equipment housings and blanking plates. This fastener set simplifies installation in shared enclosures by delivering a consistent grip and reliable torque control. A common pain point is components loosening during vibration or thermal cycling; these screws are engineered to resist loosening when torques are kept to 3 Nm. Key classifications ETIM EC000889 and ECLASS 23110190 help procurement teams map parts to internal catalogs while maintaining traceability. For project teams, using a standardized screw size reduces variation, speeds assembly, and supports maintenance. Secondary benefits include supplied plastic washers and a compact 50-piece pack for stock efficiency.
Product Information
Extended Description
7094130 Rittal: DK Multi-tooth screws, M5 x 16 mm, Bitgröße: 25
Article number
EL 7094.130
Design
Multi-tooth 25
Product description
For electronic equipment, 482.6 mm (19") installed components and blanking plates.
Supply includes
Plastic washers
Assembly instruction
Max. tightening torque 3 Nm
Dimensions
Thread: M5 | Thread length: 16 mm
Packs of
50 pc(s).
Weight/pack
0.2 kg
Customs tariff number
73181900
EAN
4028177663046
ETIM 9
EC000889
ECLASS 8.0
23110190
Product description
DK Multi-tooth screws, M5 x 16 mm, Bitgröße: 25
Feature: M5 x 16 mm thread with a DK Multi-tooth 25 design and included plastic washers. Business Impact: Delivers reliable grip, reduces galling, and protects mating surfaces during tightening. Application: Ideal for electronic equipment mounted in 19" enclosures and blanking plates, where consistent thread engagement matters. Feature: Maximum tightening torque of 3 Nm. Business Impact: Prevents over-tightening, minimizes hardware damage, and extends enclosure integrity in vibration-prone environments. Application: Critical during rapid field upgrades or periodic maintenance on control panels. Feature: Pack of 50 screws with a weight of 0.2 kg per pack. Business Impact: Streamlines stocking, lowers logistics costs, and improves procurement forecasting. Application: Suitable for multi-rack installations and large-scale manufacturing sites where inventory turnover matters. Feature: EAN 4028177663046, article EL 7094.130, customs tariff 73181900. Business Impact: Enhances traceability and import compliance, simplifying customs declarations and catalog matching. Application: Easy to reference in ERP and procurement catalogs. Feature: Compatibility with 19-inch (482.6 mm) installed components and blanking plates. Business Impact: Reduces part variance across cabinet builds, accelerates assembly, and improves maintenance planning. Application: Use in standard 19" enclosures for electronic equipment racks.
Get a Quick Quote for a Rittal 7094130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7094130?
Enquire Now
FAQs
Yes. The EL 7094.130 screws are designed specifically for 482.6 mm (19") installed components and blanking plates in standard enclosure systems. With M5 x 16 mm threads and a DK Multi-tooth profile, they provide consistent engagement and reduce the likelihood of loosening due to vibration. Supplied washers help protect mating surfaces during tightening, improving long-term reliability.
Key specs include M5 thread with a 16 mm thread length, DK Multi-tooth 25 design, and a maximum tightening torque of 3 Nm. Each pack contains 50 screws and 0.2 kg of hardware, and plastic washers are included to safeguard the mounting surfaces. The product is cataloged as EL 7094.130 and carries the 4028177663046 EAN.
This screw set excels in industrial control cabinets and electronic equipment racks that use 19-inch enclosures. It ensures secure mounting under vibration and thermal cycling, supports quick assembly in multi-rack installations, and helps standardize hardware across facilities, reducing maintenance challenges and inventory variety while maintaining electrical enclosure integrity.
The EL 7094.130 is associated with ETIM EC000889 and ECLASS 23110190 classifications, aiding catalog mapping and data consistency. It also carries the EAN 4028177663046 and customs tariff 73181900 for import and compliance workflows. For project approvals, cross-reference these identifiers with your ERP and sourcing policies.
Stocking efficiency comes from packs of 50 and a per-pack weight of 0.2 kg, simplifying logistics. The 3 Nm torque limit reduces over-tightening risk and associated maintenance costs, while reliable 19-inch mounting accelerates installation timelines, minimizes rework, and improves uptime across multi-site deployments.
