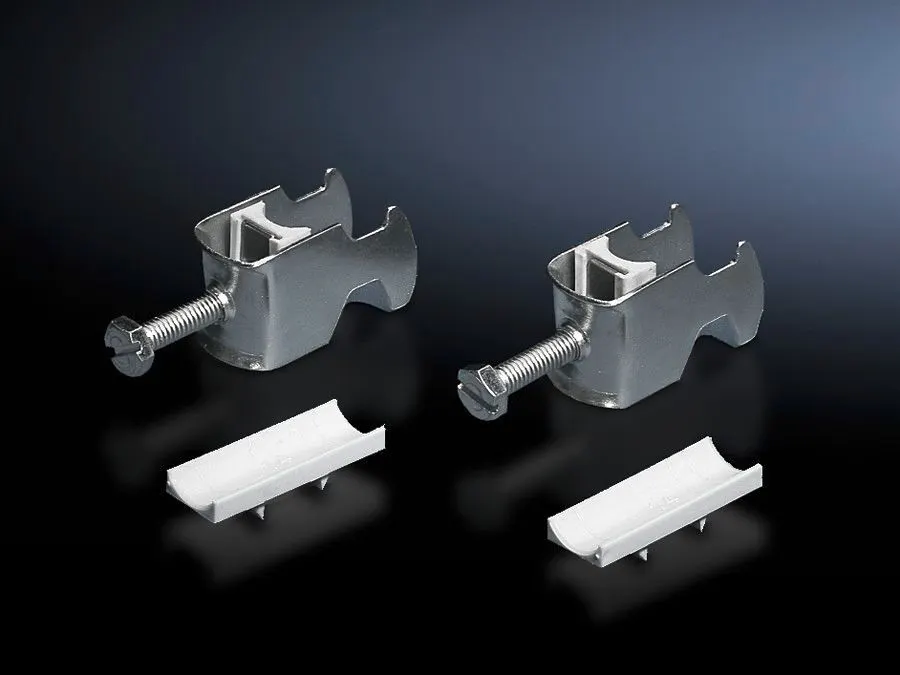

Rittal DK 7097.000 Cable clamps for 18–22 mm diameter
Part Number: 7097000
Manufacturer
Rittal
Part number
7097000
Alt Part Number
DK 7097.000
Quick Summary
Rittal DK 7097.000 Cable clamps for attaching cables to the C rail provide secure, tidy cable management inside control panels. In compact enclosures, unmanaged wiring can hinder maintenance, cause heat buildup, and complicate inspections. This clamp uses sheet steel with a zinc-plated finish and is designed for cable diameters of 18–22 mm, offering durable, repeatable performance. The product is classified in industry standards such as ETIM 9 EC000454, ETIM 8 EC000127, and ECLASS 8.0 23140202, supporting accurate cataloging and procurement. By aligning with these standards and a practical pack size of 25, it helps streamline purchasing, reduces rework, and supports scalable installations across automation and electrical infrastructure projects.
Product Information
Extended Description
7097000 Rittal: DK Cable clamps, for cable diameter: Ø: 18 - 22 mm
Article number
DK 7097.000
Design
for cable diameter 18 – 22 mm
Product description
For attaching cables to the C rail.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Plastic insert
Min. cable diameter
18 mm
Max. cable diameter
22 mm
Packs of
25 pc(s).
Weight/pack
1.025 kg
PCF per pack (cradle-to-gate)
3.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177124523
ETIM 9
EC000454
ETIM 8
EC000127
ECLASS 8.0
23140202
Product description
DK Cable clamps, for cable diameter: Ø: 18 - 22 mm
Feature: Design for C rail attachment → Business Impact: Enables quick, secure mounting on standard DIN rails without special tooling → Application: Ideal for control cabinets and automation panels. Feature: Material and finish → Business Impact: Zinc-plated sheet steel delivers corrosion resistance and long service life in industrial environments → Application: Suitable for indoor enclosures where moisture exposure is possible. Feature: Cable diameter range 18–22 mm → Business Impact: Covers common power and data cable sizes, reducing the need for multiple clamps → Application: Simplifies panel wiring and inventory management. Feature: Supply includes plastic insert → Business Impact: Ensures reliable grip and easy installation, reducing installation time → Application: Supports fast, repeatable installations on the C rail. Feature: Pack size and PCF footprint → Business Impact: 25 pieces per pack and a cradle-to-gate PCF of 3.9 kg CO2 eq enable efficient procurement and sustainability reporting → Application: Beneficial for project planning and environmental accounting. Feature: Certifications/Standards alignment → Business Impact: ETIM and ECLASS classifications ensure compatibility with digital catalogs and BOM workflows → Application: Improves data accuracy and vendor standardization in electrical infrastructure.
Get a Quick Quote for a Rittal 7097000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7097000?
Enquire Now
FAQs
The DK 7097.000 is designed for attachment to standard C rails (DIN rails) in control panels. It uses a sheet steel, zinc-plated construction and includes a plastic insert to ensure a secure grip. Packs of 25 simplify stocking and reordering for assemblies with multiple cable runs, supporting consistent installation across cabinets and enclosures.
Begin by identifying the C rail mounting location and ensuring the rail is clean and aligned. Insert the clamp onto the rail, place the plastic insert to guide the cable, and secure with the appropriate snap or clip method provided by the clamp design. Verify cable diameter compatibility (18–22 mm) and perform a final inspection for secure seating and clearance against other components.
Yes, the clamp uses zinc-plated sheet steel, providing corrosion resistance suitable for many industrial environments. It is specifically sized for 18–22 mm cables and is intended for reliable, long-term service within control cabinets and automation enclosures. For extreme or outdoor conditions, verify additional enclosure ratings and ingress protection requirements in your system design.
The DK 7097.000 carries ETIM 9 EC000454 and ETIM 8 EC000127 classifications, as well as ECLASS 8.0 23140202. These classifications help ensure compatibility with digital catalogs, BOMs, and procurement systems. The dataset also lists a zinc-plated surface finish and sheet steel material, which are important for sourcing and quality control, though explicit CE/IP/SIL certifications are not shown.
The clamp pack has a PCF of 3.9 kg CO2 eq (Cat B) per pack, aiding cradle-to-gate environmental accounting. With 25 clamps per pack and a durable zinc-plated finish, maintenance intervals are reduced and inventory efficiency improves. Procurement costs are lowered through standardized sizing and consistent supply, supporting scalable automation projects.
