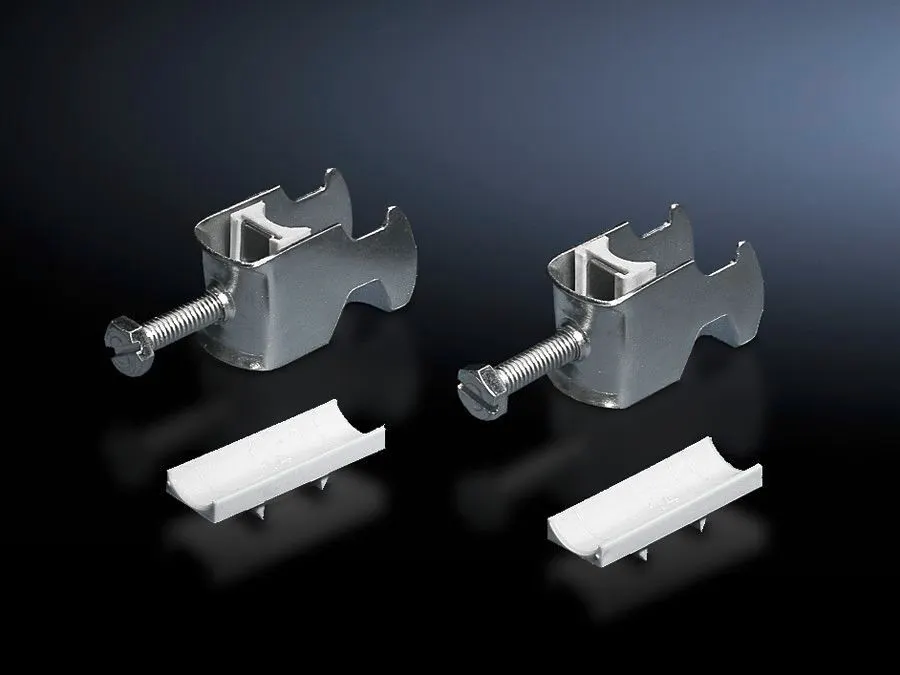

Rittal DK 7097.220 Cable clamps - 22-26 mm C rail
Part Number: 7097220
Manufacturer
Rittal
Part number
7097220
Alt Part Number
DK 7097.220
Quick Summary
Rittal DK 7097.220 DK Cable clamps securely attach cables to C rails in control panels. Engineers often struggle with vibration, crowded cabling, and maintenance downtime caused by unsecured cables. The data shows a robust zinc-plated sheet steel construction designed for tough industrial environments, with a plastic insert to secure the grip. Each pack contains 25 clamps, sized for 22 to 26 mm cables, and the 1.1 kg weight per pack helps with logistics planning. The cradle-to-gate PCF is 4.2 kg CO2 eq (Category B), supporting sustainability reporting. This solution supports reliable DIN rail cable management and quick, repeatable installations, improving serviceability and reducing field rework for automation projects.
Product Information
Extended Description
7097220 Rittal: DK Cable clamps, for cable diameter: Ø: 22 - 26 mm
Article number
DK 7097.220
Design
for cable diameter 22 – 26 mm
Product description
For attaching cables to the C rail.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Plastic insert
Min. cable diameter
22 mm
Max. cable diameter
26 mm
Packs of
25 pc(s).
Weight/pack
1.1 kg
PCF per pack (cradle-to-gate)
4.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177193178
ETIM 9
EC000454
ETIM 8
EC000127
ECLASS 8.0
23140202
Product description
DK Cable clamps, for cable diameter: Ø: 22 - 26 mm
Feature: Material and finish — sheet steel with a zinc-plated surface. Impact: Delivers durable corrosion resistance and long service life in harsh environments. Application: Ideal for factory automation panels and power distribution enclosures where cabling remains fixed to the C rail. Feature: Cable range — designed for Ø 22-26 mm. Impact: Ensures secure grip and prevents movement under vibration. Application: Fits DIN rail installations in compact layouts and crowded cabinet interiors. Feature: Supply includes plastic insert and defined packaging — 25 pieces per pack; weight 1.1 kg per pack. Impact: Improves grip stability, reduces cable rattle, and simplifies logistics for high-volume installs. Application: Great for project kits and controlled assembly lines in automation plants. Feature: Environmental and classification data — PCF 4.2 kg CO2 eq (Cat B); ETIM/ ECLASS alignment. Impact: Supports sustainability reporting and interoperability. Application: Useful for procurement governance and standards-based sourcing. Feature: DIN rail compatibility — designed for C rail mounting. Impact: Enables fast, tool-free installation with repeatable results. Application: DIN rail enclosures, switchgear cabinets, and other control cabinet applications.
Get a Quick Quote for a Rittal 7097220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7097220?
Enquire Now
FAQs
Yes. The DK 7097.220 is designed specifically to attach cables to C rails in DIN-rail mounted control panels. It provides a secure grip for cables within the 22-26 mm diameter range and integrates with standard DIN rail infrastructure, enabling rapid, repeatable installations with minimal tooling.
Key specs include a cable diameter range of 22-26 mm, sheet steel construction, and a zinc-plated surface finish. The clamp is supplied with a plastic insert, comes in packs of 25, and weighs 1.1 kg per pack. It is intended for C rail mounting in electrical enclosures and automation panels.
This clamp excels in industrial automation, electrical enclosures, switchgear cabinets, and power distribution panels where secure cable management is needed. Its robust material and DIN rail compatibility make it suitable for harsh factory environments, crowded cable routes, and installations requiring repeatable, maintainable wiring layouts.
The provided data does not list CE, SIL, or IP certifications for this item. It does specify classification codes (ETIM EC000454, ETIM 8 EC000127, ECLASS 8.0 23140202) and environmental data (PCF 4.2 kg CO2 eq, Cat B). Verify certifications with the supplier for project-specific regulatory compliance.
Using a pack of 25 clamps with a 22-26 mm range and a plastic insert streamlines kit building and cabinet wiring. The 1.1 kg per pack weight and compact footprint aid logistics, while reliable grip reduces rework due to vibration or movement, contributing to lower maintenance costs and faster commissioning in automation projects.
