Rittal 7100120 Open Frame Rack - OCP ORV3 Ready
Part Number: 7100120
Quick Summary
Rittal 7100120 Open Frame Rack is a modular IT housing solution for high-density data centers. Engineers often face cabling chaos, cooling integration challenges, and constrained upgrade paths in growing deployments. Certification details such as CE compliance and IP/SIL ratings are not specified in the provided data; confirm with Rittal for regulatory alignment. With OCP compatibility, a prepared for cable entry design, and a robust 44U footprint, it delivers scalable performance and reduced installation risk. By including features like heavy-duty castors, pre-mounted leveling feet, and an integrated busbar, the rack supports quick deployment and safer handling during data-center moves. This combination supports both traditional air cooling and emerging DLC configurations.
Product Information
Extended Description
7100120 Rittal: OCP ORV3 rack, 44 U, WxHxD: 610 x 2300 x 1070 mm, RAL 9005
Article number
IT 7100.120
Design

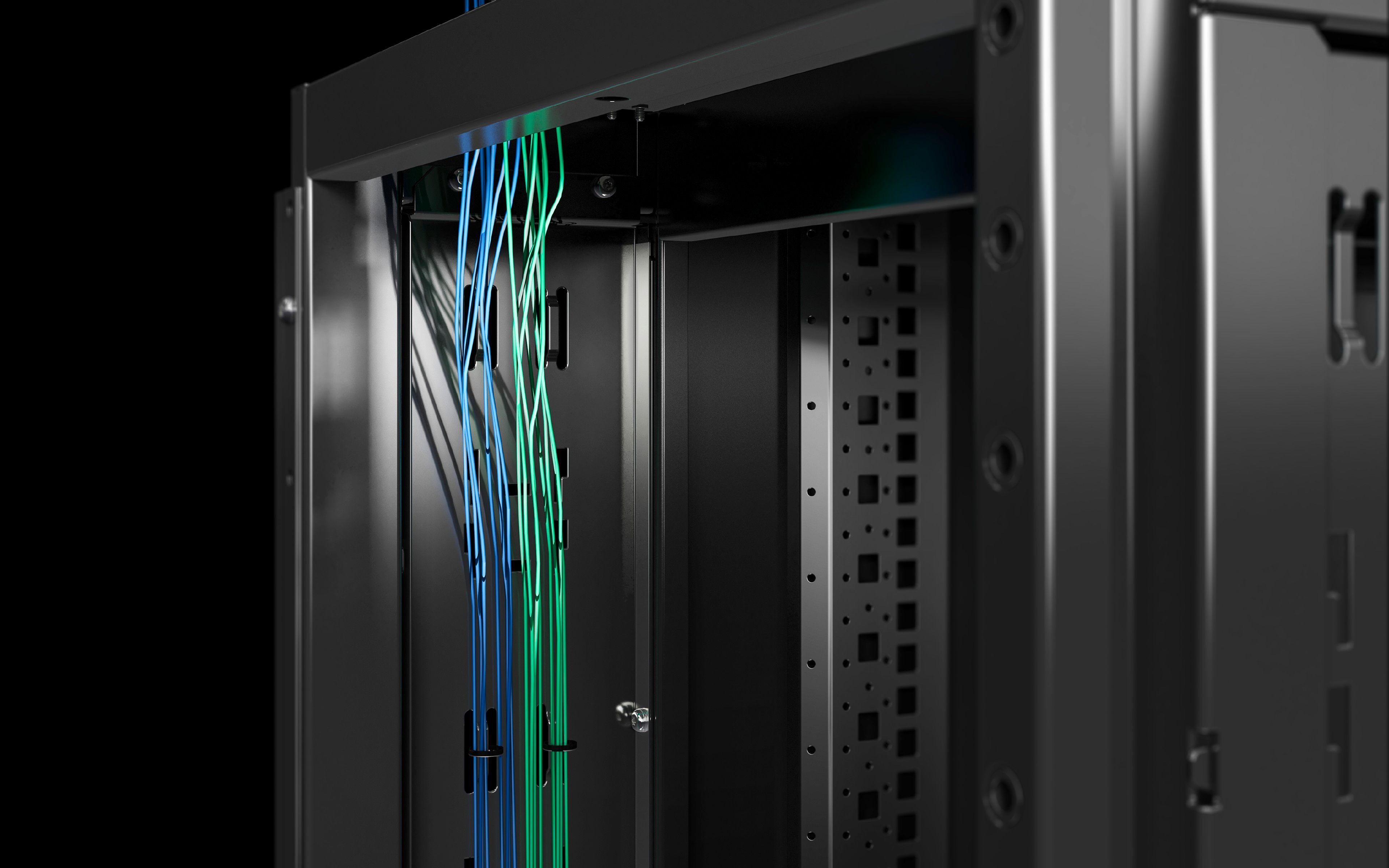

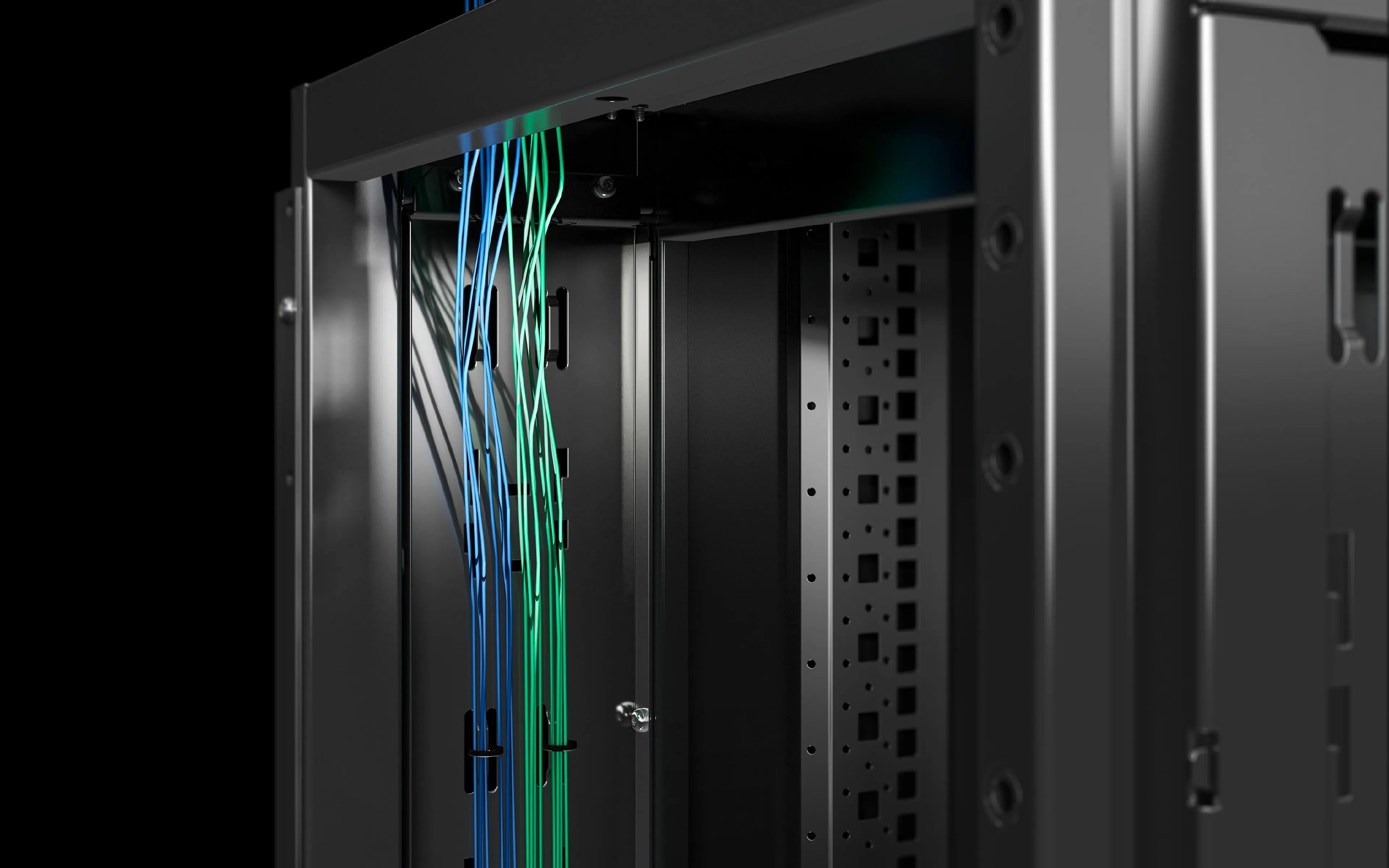

Open frame | Prepared for cable entry in roof and base | Cable routing at the front, across the full height | 2 bracing struts, pre-assembled | Levelling feet, pre-assembled | Integrated heavy-duty castors make transportation easier and ensure ease of handling in the data centre
Benefits
OCP ORV3 rack open on all sides and in line with Standard V3 of the OCP Community
Technical specifications
Rated operating voltage: 48 V DC / power consumption 18 kW
Material
Sheet steel
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 9005
Supply includes
OCP ORV3 rack | OCP busbar for max. 48 DC/18 kW | 4 castors (freely rotating) | Baying seal | Air baffle plate
Dimensions
Width:Â 600 mm | Height:Â 2,286 mm | Depth:Â 1,068 mm
Units
47 U | 44 OU
Load capacity
14,000 N
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177997738
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
OCP ORV3 rack, 44 U, WxHxD: 610 x 2300 x 1070 mm, RAL 9005
Feature: Open frame design with front-to-back cable routing and roof and base entry preparation → Business Impact: Enables flexible cabling, improved airflow, and faster changes to the rack layout without disassembly → Application: Data centers deploying high-density compute and DLC-ready cooling. Feature: 44 U capacity with 600 mm width and 2,286 mm height (1,068 mm depth) → Business Impact: Maximizes space utilization and supports a wide range of 19-inch equipment within a compact footprint → Application: Dense server and storage deployments in 600 mm wide racks. Feature: 48 V DC operation with up to 18 kW load capacity via integrated busbars → Business Impact: Streamlines power distribution, lowers wiring complexity, and improves energy planning → Application: High-density DC-powered racks in edge and data-center environments. Feature: Ready-for-use supply package with OCP busbar, four freely rotating castors, baying seal, and air baffle plate → Business Impact: Simplifies installation, enables quick site setup, and enhances thermal management → Application: Rapid deployment in new or expanding racks with reliable airflow. Feature: Durable sheet steel with dipcoat-primed, powder-coated exterior in RAL 9005 → Business Impact: Delivers rugged performance in harsh data-center environments and longer service life → Application: Industrial and mission-critical IT installations demanding robust finishes. Feature: DLC compatibility and OCP ORV3 readiness → Business Impact: Supports next-gen cooling strategies and interoperability within the OCP community → Application: High-density compute environments planning for Direct Liquid Cooling integration.
Get a Quick Quote for a Rittal 7100120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7100120?
Enquire Now
FAQs
The IT 7100.120 OCP ORV3 open frame rack is designed to accommodate standard 19-inch equipment within a 44U footprint and supports cable entry at the roof and base as well as front routing. The design includes pre-assembled bracing and leveling feet, enabling straightforward integration of servers, switches, and storage devices while maintaining organized cabling and efficient airflow. For best results, plan cable paths using the front-height access and ensure busbar connectivity aligns with your DC power distribution.
The rack supports a rated operating voltage of 48 V DC with a maximum power consumption of 18 kW, delivered via an integrated busbar configured for up to 48 DC. This makes it suitable for high-density DC-powered installations and aligns with OCP-compliant deployments. When planning your load, consider leaf temperature rise and cooling strategy to maintain optimal performance across the 44U enclosure.
Yes, the IT 7100.120 OCP ORV3 rack is prepared for DLC integration and is OCP ORV3 ready, meaning it follows the OCP community’s V3 specifications for compatibility and performance. This enables designers to evaluate and implement direct liquid cooling solutions while maintaining standardization with OCP components. For DLC deployment, verify plumbing routing, leak containment, and coolant compatibility with your equipment.
From the provided data, explicit certifications such as CE, IP, or SIL are not listed. For regulatory compliance, consult Rittal or your regional distributor to obtain the latest certification documentation and ensure alignment with local requirements. In practice, many data-center enclosures adhere to CE and related standards, but confirmation is required for purchase and qualification in regulated environments.
The IT 7100.120 rack offers durable sheet steel construction with a powder-coated exterior, load capacity of up to 14,000 N, and mobility features like four castors and leveling feet for safer handling. Its modular, open-frame design reduces deployment time, simplifies cabling, and supports scalable cooling approaches, which collectively lower maintenance overhead and improve uptime. The integrated busbar and baying seal streamline serviceability and future upgrades, contributing to lower long-term TCO.
