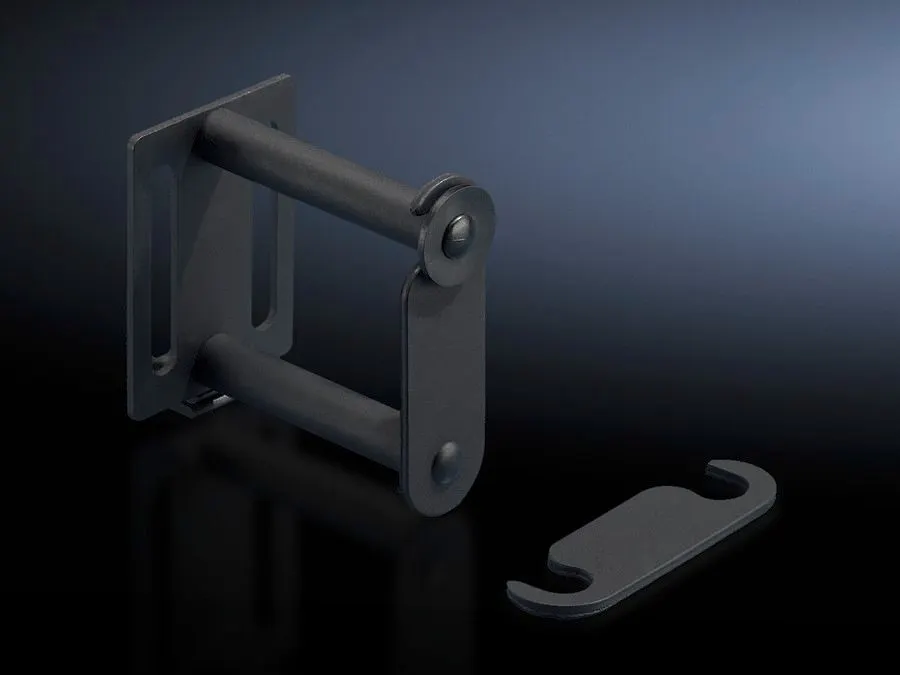

Rittal DK 7111.212 Cable routing bars - UL 94-V0
Part Number: 7111212
Quick Summary
DK 7111.212 cable routing bars provide structured routing of entire cable bundles inside enclosures. This design addresses cluttered panels and hard-to-trace wiring by offering a single, adjustable mounting solution. Key protections include UL 94-V0 rated plastic and a steel support, pairing fire safety with mechanical strength. Color is RAL 9005 for consistent aesthetics in industrial cabinets, with universal applicability for vertical and horizontal routing. By consolidating accessories and simplifying installation, it reduces project lead times and lowers maintenance labor. It is shipped as 1 U high with five connection combs, and packs of ten simplify stocking for projects. The chamber size of each section (approximately 34x100 mm) supports multiple bundles while maintaining enclosure density.
Product Information
Extended Description
7111212 Rittal: DK Cable routing bars for universal use, 1 U, RAL 9005
Article number
DK 7111.212
Product description
For structured routing of entire cable bundles, the cable bars may be secured to a variety of different positions inside the enclosure.
Applications
All-round attachment for universal use for vertical and horizontal cable routing inside the enclosure or within the distributor level.
Material
Support: Sheet steel | Cable routing bars, connection combs: Plastic UL 94-V0
Colour
RAL 9005
Supply includes
Cable routing bars | Connection combs
Number connection combs
5
Note
Size of individual chambers (WxD) approx. 34 x 100 mm
Units
1 U
Packs of
10 pc(s).
Weight/pack
0.85 kg
PCF per pack (cradle-to-gate)
3.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177519541
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable routing bars for universal use, 1 U, RAL 9005
Feature → Business Impact → Application: All-round attachment for universal use enables flexible mounting in both vertical and horizontal cable routing inside the enclosure or distributor level, reducing the need for multiple separate guides and speeding up panel assembly. This translates to shorter install times and lower labor costs in control cabinets and industrial enclosures. Application: Ideal for panel builders and equipment integrators working on electrical cabinets and shielded industriales. Feature → Business Impact → Application: 1 U height combined with 5 connection combs supports dense cable management without increasing enclosure footprint, improving trackability and serviceability in tight spaces. Application: Suitable for compact motor drives, PLC panels, and distribution boards where space is a premium. Feature → Business Impact → Application: UL 94-V0 plastic and steel support provide fire safety and shock resistance, ensuring compliance in harsh environments and reducing risk across critical installations. Application: Industrial automation racks, data/telecom cabinets, and process control enclosures. Feature → Business Impact → Application: 34x100 mm chamber size per section allows multiple bundles while preserving enclosure density, improving airflow and maintenance access. Application: Wiring hubs with high bundle counts and mixed harnesses. Feature → Business Impact → Application: Packaged in 1 U units with 10 packs per order and 0.85 kg per pack, enabling cost-efficient stocking, scalable procurement, and predictable warehousing. Application: System integrators managing large capex projects and repeated builds.
Get a Quick Quote for a Rittal 7111212
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7111212?
Enquire Now
FAQs
DK 7111.212 is designed for universal use inside enclosures and distributor levels, with a 1 U footprint and all-round attachment. It supports vertical and horizontal routing and works with common mounting patterns, simplifying retrofits and new builds alike.
The set includes 1 U cable routing bars and 5 connection combs, with 34 x 100 mm chamber size per section. It ships in packs of 10, weighing 0.85 kg per pack, and is color-coded in RAL 9005 for consistent cabinet aesthetics.
Yes. The product uses plastic with UL 94-V0 rating for flame retardancy, paired with a steel support for mechanical resilience, making it appropriate for fire-safe, industrial environments.
PCF (cradle-to-gate) is 3.2 kg CO2 eq per pack (Category B). This helps quantify environmental impact for project emissions reporting and sustainability assessments.
Utilize the universal all-round attachment to fix cables quickly in both orientations, leverage the 1 U height to maximize density, and plan with the 34x100 mm chamber size to optimize bundle routing while preserving airflow and service access.
