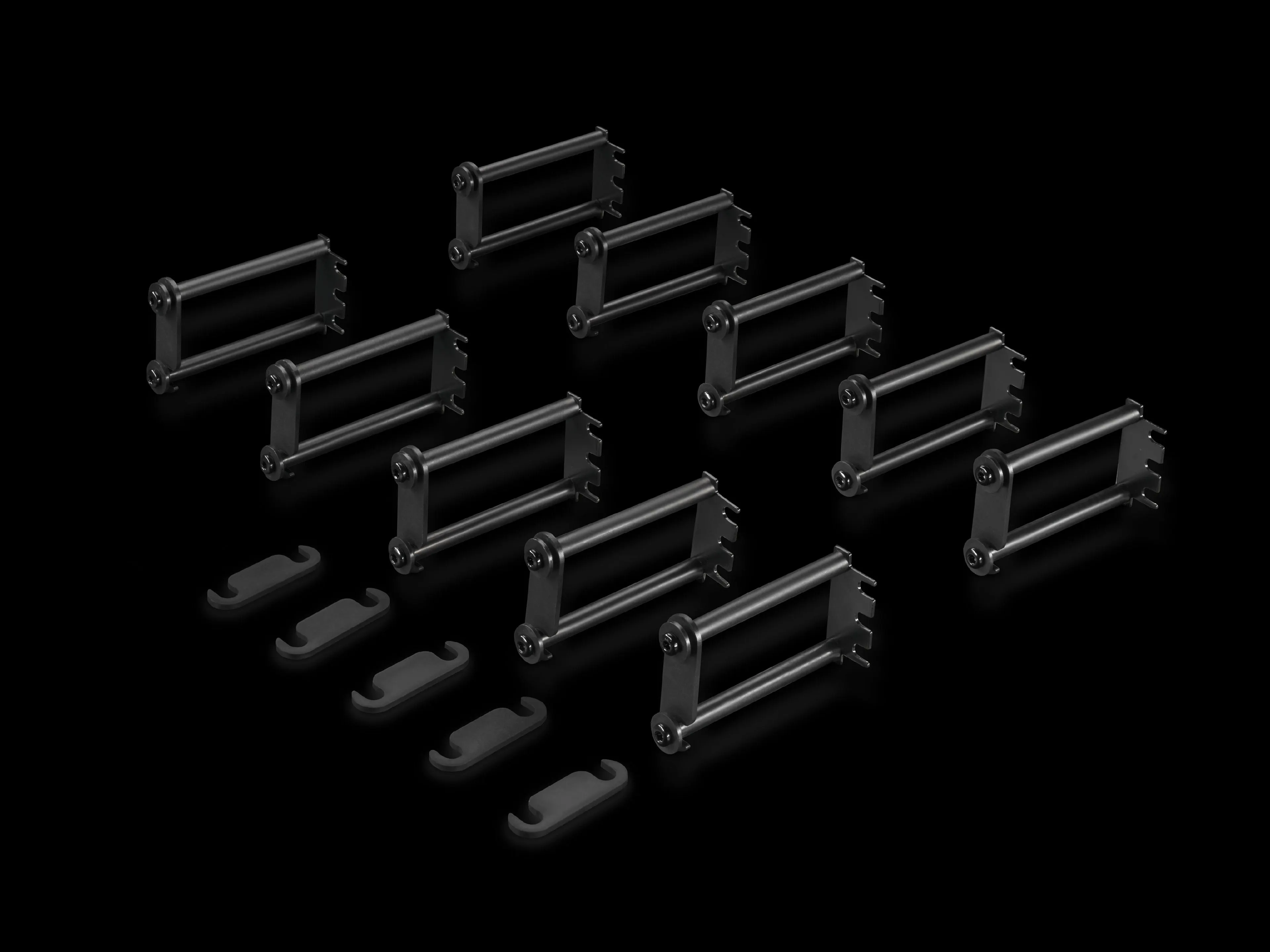

Rittal DK 7111.214 Cable routing bars - 1 U
Part Number: 7111214
Quick Summary
Rittal DK 7111.214 cable routing bars organize entire cable bundles inside 19-inch enclosures. Too often, installers contend with tangled harnesses and retrofit bottlenecks that slow maintenance and raise risk of wiring errors. The design supports CE-style compliance and UL 94-V0 flame-rated plastics to help you meet safety and quality standards in European and global cabinets. Its open mounting holes enable retrospective mounting on 482.6 mm system punchings, so you can adapt as layouts evolve. With a 1 U height, five connection combs, and a durable black finish (RAL 9005), the solution delivers orderly cabling while keeping installation simple, scalable, and cost-efficient for growing control cabinet projects.
Product Information
Extended Description
7111214 Rittal: DK Cable routing bars, 482.6 mm (19") attachment, 1 U
Article number
DK 7111.214
Product description
For structured routing of entire cable bundles, the cable bars may be secured to a variety of different positions inside the enclosure.
Applications
For horizontal cable routing within the distributor level. Thanks to their open mounting holes, they can also be retrospectively slotted onto the 482.6 mm (19") system punchings of the mounting level at any time and secured with the existing mounting screws of the installed components.
Material
Support: Sheet steel | Cable routing bars, connection combs: Plastic UL 94-V0
Colour
RALÂ 9005
Supply includes
Cable routing bars | Connection combs
Number connection combs
5
Note
Size of individual chambers (WxD) approx. 34 x 100 mm
Units
1 U
Packs of
10 pc(s).
Weight/pack
0.67 kg
PCF per pack (cradle-to-gate)
2.6Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177550360
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable routing bars, 482.6 mm (19") attachment, 1 U
Feature: 482.6 mm (19”) attachment and 1 U height enable precise, horizontal cable routing within the distributor level. Business Impact: standardizes cabinet geometry, reduces misalignment with mounting rails, and speeds up installation while facilitating future upgrades. Application: ideal for new builds and retrofits where multiple cables must run cleanly along the enclosure face while maintaining service access. Feature: Open mounting holes allow retrospective slotted mounting onto system punchings at any time. Business Impact: unmatched flexibility to reconfigure layouts without removing installed components, cutting change orders. Application: use during commissioning or later expansions to route additional cables without disassembling existing hardware. Feature: Five connection combs provide five separate chambers for cable bundles. Business Impact: improves traceability, reduces crosstalk, and supports cleaner cabling diagrams for faster fault isolation. Application: aligns with the 34 x 100 mm chambers and 19-inch system standards for scalable organization. Feature: Sheet steel support with UL 94-V0 plastic bars in RAL 9005. Business Impact: delivers structural stiffness with flame-safe interiors and a consistent industrial look. Application: seamless integration with Rittal enclosures and compatible accessories, simplifying sourcing. Feature: Pack quantity of 10 pieces with 0.67 kg per pack. Business Impact: lowers inventory load and shipping costs for bulk projects and service teams. Application: ideal for large deployments and ongoing maintenance stocking.
Get a Quick Quote for a Rittal 7111214
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7111214?
Enquire Now
FAQs
Install the DK 7111.214 bars by mounting them to the 19" system punchings at the distributor level. Use the existing mounting screws to secure the bars, ensuring the 1 U height aligns with adjacent components. Slot the five connection combs into their chambers and route cables per the planned bundle diagram to maximize space and service access.
The 482.6 mm (19") attachment width and 1 U height are designed for horizontal routing along the distributor level. Open mounting holes allow easy retrofitting onto system punchings, so you can adapt to layout changes without removing installed hardware, reducing downtime during upgrades.
Yes. The open mounting holes and five connection combs support flexible reconfiguration. You can add or re-route cables as requirements evolve, minimizing workarounds and preserving organized cabling as your system grows.
The bars use UL 94-V0 rated plastic for the connection components and are designed to meet typical CE expectations for European installations. The product data also references standardized identifiers (ETIM EC000322, ECLASS 27400604) to aid procurement, with RoHS-like compliance implicit in the material choices.
Structured cabling reduces fault finding time and maintenance effort by improving cable traceability and reducing tangles. The 1 U height and clear chamber layout accelerate future modifications, lowering lifecycle costs and supporting faster project delivery in both new builds and upgrades.
