Rittal 7111.222 DK Cable routing bars - UL 94-V0
Part Number: 7111222
Quick Summary
DK Cable routing bars provide structured routing for full cable bundles inside enclosures. A common challenge is cluttered interiors that hinder airflow, complicate maintenance, and extend installation times. This solution leverages UL 94-V0 flame-rated plastic components paired with steel supports, aligning with ETIM EC000322 and ECLASS 27400604 to streamline procurement and data accuracy. In addition to the core function, the 4 U configuration and RAL 9005 finish support consistent, scalable installations across multiple cabinets, distributors, and modular systems, delivering tangible business value for panel builders and integrators.
Product Information
Extended Description

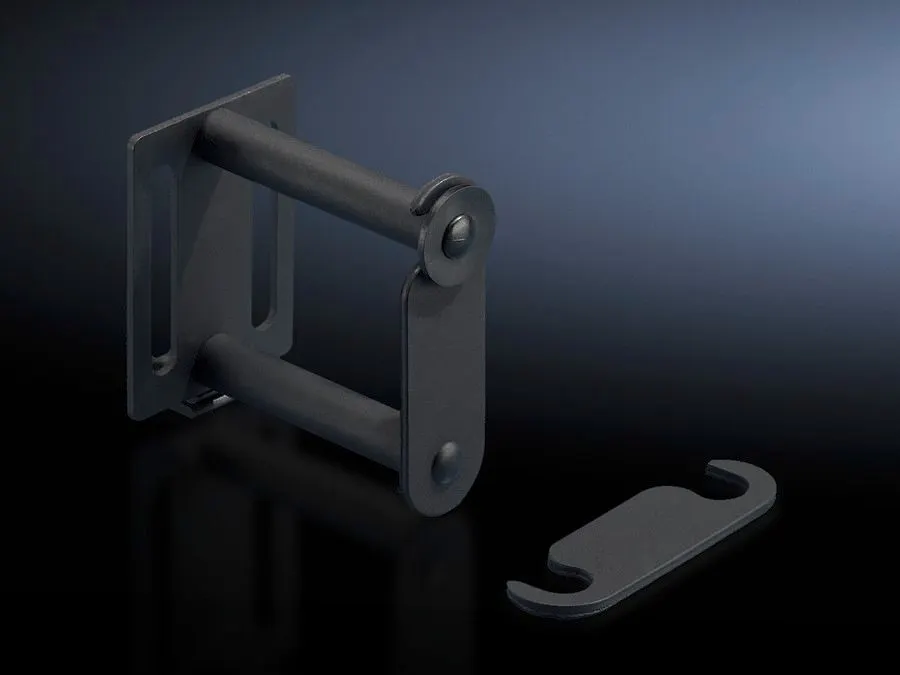

7111222 Rittal: DK Cable routing bars for universal use, 4 U, RAL 9005
Article number
DK 7111.222
Product description
For structured routing of entire cable bundles, the cable bars may be secured to a variety of different positions inside the enclosure.
Applications
All-round attachment for universal use for vertical and horizontal cable routing inside the enclosure or within the distributor level.
Material
Support: Sheet steel | Cable routing bars, connection combs: Plastic UL 94-V0
Colour
RAL 9005
Supply includes
Cable routing bars | Connection combs
Number connection combs
2
Note
Size of individual chambers (WxD) approx. 34 x 100 mm
Units
4 U
Packs of
4 pc(s).
Weight/pack
0.912 kg
PCF per pack (cradle-to-gate)
3.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177519565
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable routing bars for universal use, 4 U, RAL 9005
Universal 4 U cable routing bars with two connection combs enable structured routing of entire cable bundles, speeding up wiring and reducing points of failure. This translates to faster assembly, easier future upgrades, and more consistent cable paths that improve airflow and visibility inside cabinets. Ideal for vertical and horizontal routing inside enclosures or at distributor levels, the solution supports flexible mounting in varied layouts. The combination of sheet steel supports and plastic UL 94-V0 bars provides flame retardancy and mechanical resilience, lowering risk and extending service life in harsh environments. Color in RAL 9005 aids visual management and reduces wiring errors during maintenance. Each pack includes four bars and two connection combs, offering turnkey deployment with predictable handling and weight of 0.912 kg per pack, making inventory and logistics simpler. The sizing of individual chambers (34 x 100 mm) fits typical trunking layouts, enabling modular configurations and faster reconfigurations. Industry-standard classifications (ETIM EC000322 and ECLASS 27400604) support digital cataloging and supplier data quality, improving procurement cycles and audit readiness. In practice, these features translate to lower total cost of ownership, reduced downtime, and safer, neater enclosures for mission-critical systems.
Get a Quick Quote for a Rittal 7111222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7111222?
Enquire Now
FAQs
Install the 4 U cable routing bars using their universal attachment points inside the enclosure or at the distributor level. The kit includes two connection combs and accommodates vertical or horizontal routing. Position the bars to align with the chamber openings (34 x 100 mm) for clean cable separation and easy reconfiguration without disassembling nearby components.
Yes. The DK 7111.222 system is designed for universal use across compatible Rittal enclosures and distributor levels. It supports both vertical and horizontal routing, with 4 U unit sizing and existing mounting options that simplify integration into established cabinet architectures and modular layouts.
The product uses UL 94-V0 flame-rated plastic for the bars, providing material safety. Catalog and data standards include ETIM EC000322 and ECLASS 27400604, which help streamline procurement, data exchange, and cross-system compatibility in digital catalogs.
Each pack contains four cable routing bars and two connection combs, with a total pack weight of 0.912 kg. This packaging supports straightforward handling, efficient inventory management, and standardized installation procedures across multiple enclosures.
Structured routing reduces cable misrouting, accelerates fault finding, and simplifies future upgrades. The rigid steel supports combined with UL 94-V0 bars improve reliability, while the standardized 34 x 100 mm chamber dimensions enable modular reconfiguration. Overall, the system lowers downtime, improves airflow, and promotes safer, faster servicing.
