Rittal 7111224 Cable Routing Bars - 4U
Part Number: 7111224
Quick Summary
Rittal 7111224 cable routing bars provide structured routing for entire cable bundles inside 19" enclosures. This helps engineers avoid cluttered bundles, retrofit delays, and maintenance headaches caused by disorganized wiring. Note: the data does not specify CE, IP, or SIL certifications; verify official approvals with Rittal before procurement. The 4U height and open mounting holes support flexible retrofits, while maintaining compatibility with standard 482.6 mm (19") system punchings. By standardizing cable routing and keeping runs neat, these bars deliver tangible business value, including faster installation, easier future changes, and improved airflow within the enclosure for reliable operation. This solution aligns with cable management best practices and helps meet regulatory and safety expectations in panel builds.
Product Information
Extended Description

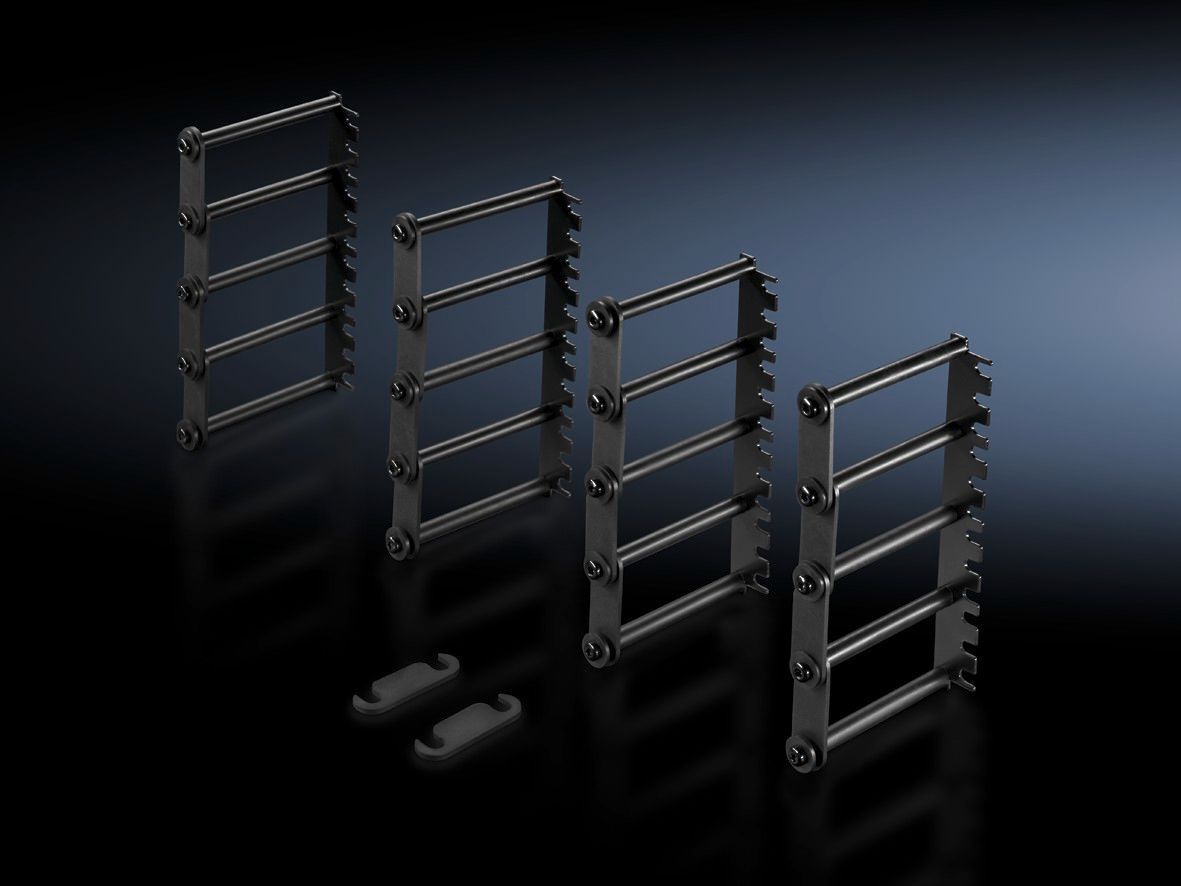

7111224 Rittal: DK Cable routing bars, 482.6 mm (19") attachment, 4 U
Article number
DK 7111.224
Product description
For structured routing of entire cable bundles, the cable bars may be secured to a variety of different positions inside the enclosure.
Applications
For horizontal cable routing within the distributor level. Thanks to their open mounting holes, they can also be retrospectively slotted onto the 482.6 mm (19") system punchings of the mounting level at any time and secured with the existing mounting screws of the installed components.
Material
Support: Sheet steel | Cable routing bars, connection combs: Plastic UL 94-V0
Colour
RAL 9005
Supply includes
Cable routing bars | Connection combs
Number connection combs
2
Note
Size of individual chambers (WxD) approx. 34 x 100 mm
Units
4 U
Packs of
4 pc(s).
Weight/pack
0.728 kg
PCF per pack (cradle-to-gate)
2.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177550377
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable routing bars, 482.6 mm (19") attachment, 4 U
Feature → Business Impact → Application: The 4U height with 482.6 mm (19") attachment provides a scalable, standard footprint that fits a wide range of 19" enclosures, enabling consistent installation across projects and reducing custom fabrication time. This translates to lower project risk and faster time-to-value during panel builds and field retrofits. Application: horizontal routing within the distributor level and retrospective slotting onto system punchings due to open mounting holes, allowing on-the-fly reconfiguration without disassembly. Feature → Business Impact → Application: Two connection combs and individually sized chambers (approx. 34 x 100 mm) enable precise zoning of cable bundles, improving traceability, heat management, and fault isolation. Application: data center and industrial automation cabinets where clear separation of power and data bundles is critical. Feature → Business Impact → Application: Material choice—sheet steel support and UL 94‑V0 plastic bars—delivers durable support with flame-retardant properties, reducing maintenance downtime and enhancing safety. Application: retrofits in existing enclosures where longevity and compliance are priorities. Feature → Business Impact → Application: RAL 9005 color and standardized supply (cable routing bars with 2 connection combs) ensure visual consistency with other Rittal components, reducing assembly errors and speeding up part identification during audits. Application: system integration projects requiring quick, predictable onboarding of new cable runs. Feature → Business Impact → Application: Packaged in 4 pieces with weight 0.728 kg per pack and PCF 2.8 kg CO2 eq (Cat B), supporting sustainable procurement and straightforward logistics. Application: volume-heavy installations with sustainability reporting and lifecycle considerations.
Get a Quick Quote for a Rittal 7111224
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7111224?
Enquire Now
FAQs
The DK 7111.224 is designed for 19" enclosures with a 482.6 mm attachment and 4U height, ensuring a standard fit across most Rittal cabinets. Its open mounting holes allow retrospective slottability onto system punchings, enabling quick upgrades without full disassembly. This compatibility simplifies upgrades, reduces downtime, and supports scalable cabling layouts in automation panels.
Key specs include the 482.6 mm (19") attachment, 4 U units, two connection combs, and chamber size of approximately 34 x 100 mm. Construction features a sheet steel support with UL 94‑V0 plastic bars, color RAL 9005, and a supply that includes the cable routing bars and connection combs. Pack size is 4 pieces with a weight of 0.728 kg per pack.
Yes. The bars are designed with open mounting holes that permit retrospective slotting onto existing 482.6 mm system punchings. This enables efficient retrofits and reconfigurations, allowing installers to add or re-route cables without removing installed components and minimizing panel downtime.
Each DK 7111.224 unit includes two connection combs, supporting multiple channels within each chamber (34 x 100 mm). Installers should plan for the approximate chamber size when routing bundles to avoid overfill, maintain airflow, and ensure secure fastening using the enclosure’s existing mounting hardware.
Typical applications include horizontal cable routing at the distributor level within 19" enclosures, with retrospective slotting onto system punchings as needed. Benefits include organized cable bundles that simplify maintenance, improved airflow for cooling, faster retrofit times, and consistent integration with other Rittal components for reliable, scalable panel builds.
