Rittal 7111300 DK Snap-in Cable Routing - UL 94-V2
Part Number: 7111300
Quick Summary
Rittal 7111300 DK snap-in cable routing provides fast, tool-free cable management for enclosure installations. Engineers often struggle with time-consuming cable routing and misfit cable cross-sections during panel mounting. The product uses UL 94-V2 self-extinguishing polyamide 6.6, and aligns with industry-standard classifications such as ETIM EC002625 and ECLASS 27189234 to support interoperability and compliant sourcing. With a cable entry range from 14 mm to 19 mm and packs of 10, it scales from small to larger bundles, boosting install efficiency, repeatability, and total cost of ownership across projects.
Product Information
Extended Description

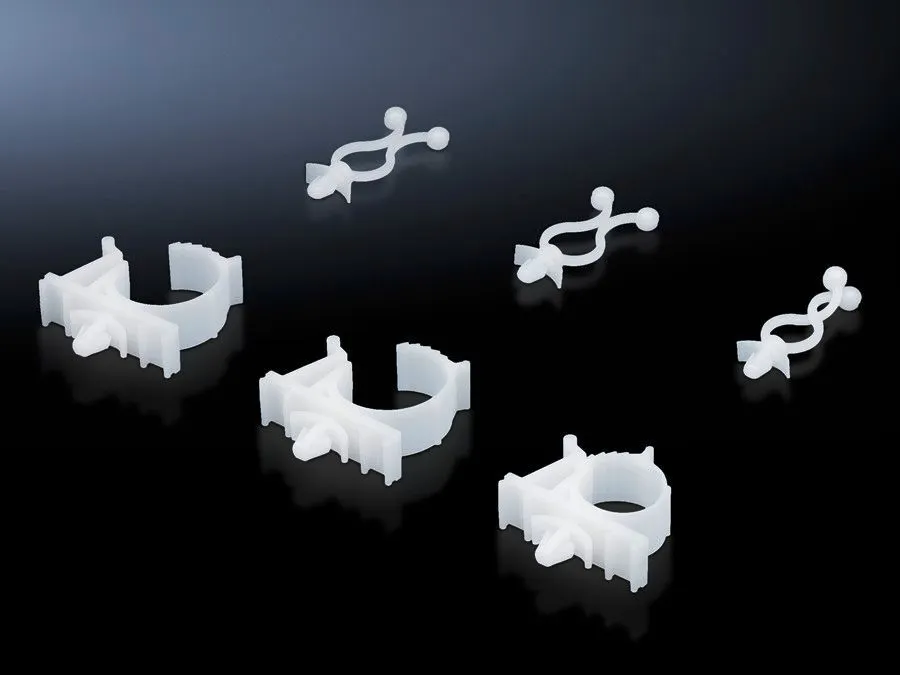

7111300 Rittal: DK snap-in cable routing for snap-mounting, for fast, tool-free assembly, for max. Ø 19 mm, polyamide, natural
Article number
DK 7111.300
Design
for snap-mounting
Benefits
The diameter of the cable routing clip may be adapted to the routed cable cross-section
Material
Polyamide 6.6, self-extinguishing to UL 94-V2
Colour
Natural
Cable entry
Min. cable diameter: 14 mm | Max. cable diameter: 19 mm
For system punchings with Ø
6.2 mm
Min. cable diameter
14 mm
Max. cable diameter
19 mm
Packs of
10 pc(s).
Weight/pack
0.04 kg
Customs tariff number
39269097
EAN
4028177551619
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
DK snap-in cable routing for snap-mounting, for fast, tool-free assembly, for max. Ø 19 mm, polyamide, natural
Feature: Snap-in design enables tool-free mounting, reducing installation time and minimizing the risk of damage during routing. Business Impact: Faster cabinet assembly translates to shorter project schedules and lower labor costs. Application: Ideal for Rittal enclosures and other snap-mount systems in control panels. Feature: Adjustable cable entry from 14 to 19 mm. Business Impact: Accommodates diverse cable diameters while maintaining grip and protection. Application: Works with varied cable cross-sections across multiple projects. Feature: Polyamide 6.6 self-extinguishing to UL 94-V2. Business Impact: Improves fire safety compliance and durability in harsh environments. Application: Suitable for industrial floors and high-temperature zones. Feature: Compatible with system punchings Ø 6.2 mm; packs of 10; weight 0.04 kg per pack. Business Impact: Streamlines batching, inventory management, and shipping costs. Application: Useful for scalable installations across several enclosures. Feature: Designed for snap-mounting with max Ø19 mm and min Ø14 mm. Business Impact: Ensures consistent grip across varying cable cross-sections, reducing rework. Application: Fits standard enclosure systems and supports modular cabling strategies.
Get a Quick Quote for a Rittal 7111300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7111300?
Enquire Now
FAQs
Yes. The DK 7111.300 snap-in cable routing is designed for snap-mounting in enclosure systems and supports a cable entry range of 14–19 mm. It is compatible with system punchings of Ø 6.2 mm and ships in handy 10-piece packs to simplify project setup.
The part is made from polyamide 6.6 and is self-extinguishing to UL 94-V2, providing enhanced fire safety in industrial environments while maintaining mechanical integrity during routine handling and routing.
Yes. The clip diameter can adapt to the routed cable cross-section within the 14–19 mm range, enabling flexible use across different cabling bundles without requiring multiple parts.
Key standards referenced include UL 94-V2 for material flammability. The product is also catalogued under ETIM 9 EC002625 and ECLASS 8.0 27189234 for interoperability in procurement systems.
Tool-free snap-in assembly reduces mounting time and labor costs, minimizes tool wear, and simplifies maintenance. With packs of 10 and a standardized Ø 6.2 mm punchings compatibility, you gain consistent install times across multiple enclosures and projects.
