Rittal 7113000 DK Earth Rail - 200 A Rating, EC000329
Part Number: 7113000
Quick Summary
Earth rail DK is a high-capacity grounding conductor that ensures reliable fault protection in AX wall-mounted enclosures. Without a robust earth rail, panel builders risk loose contacts, higher resistance, and unplanned downtime during service. This product aligns with CE expectations and is catalogued under ETIM 7.0 EC000329 and ECLASS 8.0 27400605 to streamline procurement and data integration. Its copper composition (E-Cu 57) and compact 15x5 mm profile deliver consistent performance in tight cabinet spaces, while the 450 mm length supports 600/800 mm enclosures. By combining easy installation with durable materials, it reduces maintenance costs and enhances safety across automated systems. Users gain faster commissioning and improved reliability in industrial environments.
Product Information
Extended Description
7113000 Rittal: DK Earth rail, horizontal, L: 450 mm, For W: 600/800 mm
Article number
DK 7113.000
Product description
Current carrying capacity approx. 200 A.
Supply includes

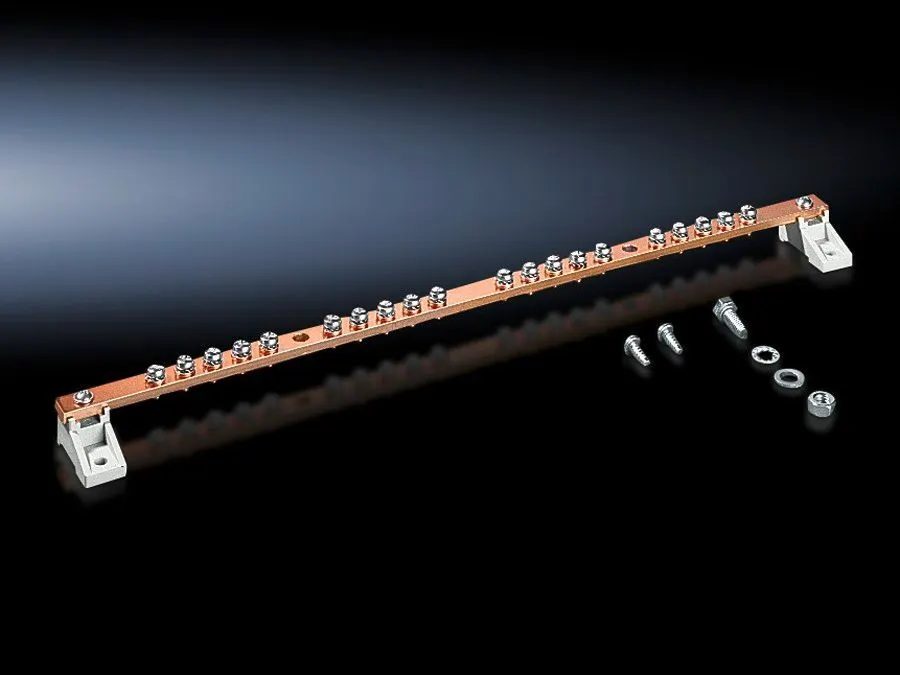

Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm | 20 connection points with M5 screws | 2 earth connections 25 mm² | 2 isolators | Assembly parts
Dimensions
Width: 15 mm | Height: 5 mm | Length: 450 mm
To fit
Enclosure type: AX wall-mounted enclosure, 3-part | Width: = 600 mm | = 800 mm
Packs of
1 pc(s).
Weight/pack
0.438 kg
Customs tariff number
74198090
EAN
4028177124943
ETIM 7.0
EC000329
ECLASS 8.0
27400605
Product description
DK Earth rail, horizontal, L: 450 mm, For W: 600/800 mm
Feature: Copper earth rail made from E-Cu 57 to DIN EN 12 163 and DIN EN 13 601. Business Impact: Ensures low contact resistance and high current capability, supporting up to 200 A continuously. Application: Ideal for AX wall-mounted enclosures in demanding control panels and power distribution cabinets. Feature: Dimensions Width 15 mm, Height 5 mm, Length 450 mm. Business Impact: Compact footprint enables installation in tight cabinet spaces and multiples along the rail run, improving space efficiency. Application: 600/800 mm wide enclosures where space optimization matters. Feature: 20 connection points with M5 screws. Business Impact: High wiring density reduces termination time and errors, cutting commissioning times. Application: Dense I/O layouts in automation cabinets. Feature: Supply includes two earth connections 25 mm², two isolators, and assembly parts. Business Impact: Ready-to-install package reduces procurement complexity and field stock, lowering project lead times. Application: Fast installation with minimal external components. Feature: Compliance and standards alignment (DIN EN 12 163, DIN EN 13 601, ETIM EC000329, ECLASS 27400605). Business Impact: Streamlines data exchange, compliance reporting, and cross-system integration for procurement and maintenance. Application: Product data management and regulatory documentation. Feature: Pack size and weight (1 pc, 0.438 kg). Business Impact: Simple stocking and logistics planning, supporting lean inventories. Application: Warehouse and supply chain efficiency for spare parts.
Get a Quick Quote for a Rittal 7113000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7113000?
Enquire Now
FAQs
The DK Earth Rail is designed to fit AX wall-mounted enclosures (3-part) with widths of 600 mm or 800 mm, providing a horizontal earth rail solution for compact, modular cabinet layouts.
The earth rail supports a current carrying capacity of approximately 200 A, making it suitable for high-demand panel and distribution applications while maintaining safe grounding and low contact resistance.
Dimensions are Width 15 mm, Height 5 mm, Length 450 mm, with a weight of 0.438 kg per pack, and it ships as 1 piece per pack.
The DK Earth rail is documented under ETIM 7.0 EC000329 and ECLASS 8.0 27400605, with a DIN EN-compliant copper rail and DIN EN 12 163, DIN EN 13 601 references for proper regulatory alignment.
The package includes two earth connections (25 mm²), two isolators, assembly parts, and 20 connection points with M5 screws, enabling straightforward wiring and a complete installation in AX enclosures.
