Rittal 7116500 Fibre-optic shunting rings - Ø 4.5 mm compatibility
Part Number: 7116500
Quick Summary
Rittal DK 7116.500 Fibre-optic shunting rings securely route fibre cables inside control cabinets. This solution addresses common pain points such as cable misrouting, insufficient strain relief, and tight bending radii in cramped enclosures. The product aligns with industry classifications ETIM 9 EC000322 and ECLASS 8.0 27400604, providing interoperability within standard procurement catalogs. Built for durable, long-term use, it combines a robust dual‑compound plastic body with universal mounting brackets to deliver reliable performance across diverse panel designs. Designed to streamline installation and maintenance, these rings support scalable cabling and reduce rework in high-mix assembly environments by promoting consistent routing and protection for fibre-optic runs.
Product Information
Extended Description
7116500 Rittal: DK Fibre-optic shunting rings, L: 120 mm, For Kabel-Ø bis 4,5 mm
Article number
DK 7116.500
Product description

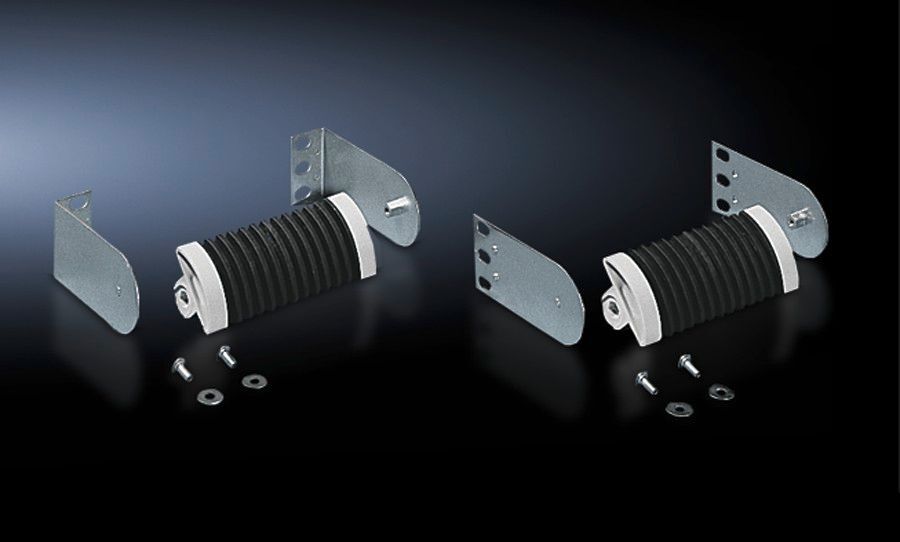

Fibre-optic shunting or jumper cables can be inserted into the grooves of the inner body. A rubber ring holds different fibre-optic cables up to Ø 4.5 mm. Strain relief and bending radius are ensured.
Function principle
The supplied mounting brackets are suitable for universal use. The fibre-optic cables can be routed to the patch panel in all directions in various mounting positions: at the side, directly on the patch panel, in front of the patch panel, at the side next to the patch panel and behind the patch panel.
Material
Dual compound plastic
Colour
Exterior: RAL 7035 | Interior: RAL 9005
Supply includes
2 shunting rings | 2 rubber rings | Baying kit | Assembly parts
Dimensions
Length: 120 mm
Packs of
2 pc(s).
Weight/pack
0.502 kg
Customs tariff number
73269098
EAN
4028177125025
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Fibre-optic shunting rings, L: 120 mm, For Kabel-Ø bis 4,5 mm
Feature → Business Impact → Application: The DK 7116.500 uses a grooved inner body that accepts fibre-optic shunting or jumper cables, with a rubber ring that securely holds cables up to Ø 4.5 mm. This delivers reliable strain relief and preserves bending radii, reducing cable fatigue in control cabinets and at patch panels. Application: Ideal for mixed panel environments where cables route to patch panels from various directions, improving overall wiring discipline and reducing inspection time. Feature → Business Impact → Application: Length is 120 mm and supplied as a two‑pack with mounting brackets, rubber rings, baying kit, and assembly parts. Benefit: This combination accelerates installation, simplifies stocking, and minimizes downtime during rack retrofits or new builds. Application: Useful in tight cabinets where space efficiency and quick deployment matter most, such as data centers and manufacturing lines. Feature → Business Impact → Application: Material is dual compound plastic with exterior RAL 7035 and interior RAL 9005, delivering durable, high-contrast components that resist wear and environmental exposure. Benefit: Enhanced durability and easy visual verification of cable routing paths. Application: Enclosures exposed to varying temperatures and handling in industrial environments. Feature → Business Impact → Application: Supply includes two shunting rings, two rubber rings, a baying kit, and assembly parts, enabling universal mounting and flexible orientation. Benefit: Reduces procurement and assembly complexity, enabling universal use across Rittal enclosures and patch panels. Application: Retrofit projects and scalable cabinet architectures. Feature → Business Impact → Application: Compatibility with universal mounting brackets supports multi-directional routing (side, front, behind) for fibre cabling to patch panels. Benefit: Decreases retrofit risk by supporting diverse installation positions. Application: Data and telecom rack installations where patch panels and fibre routes require configurable layouts.
