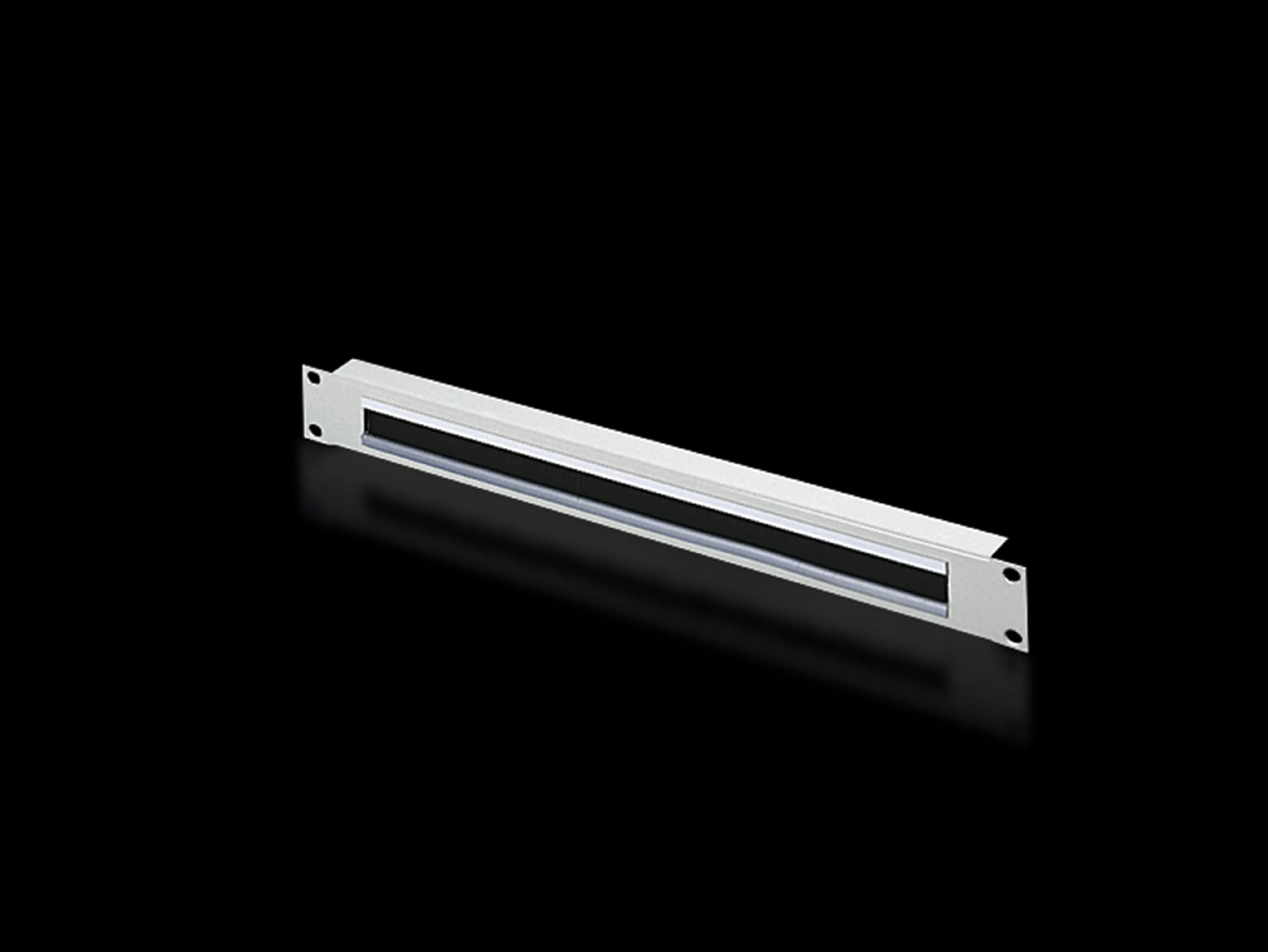

Rittal 7140.535 Cable Entry Panel - 1 U Brush Strip
Part Number: 7140535
Quick Summary
Rittal 7140.535 cable entry panel provides convenient cable routing between adjacent 19-inch mounting levels. Engineers often struggle with keeping cables tidy across front and rear zones in compact cabinets, leading to misrouting and longer installation times. Its UL 94-HB brush strip material and spray-finished RAL 7035 finish support safety, durability, and long-term maintenance, while ETIM EC000322 and ECLASS 27400604 classifications align procurement with industry standards. This 1 U panel enables clean, fast wiring between mounting levels, improving cable management in 19-inch systems and delivering measurable efficiency gains in both manufacturing and data-center environments.
Product Information
Extended Description
7140535 Rittal: DK Cable entry panel, 1 U, 482.6 mm (19"), WxH: 390x20 mm, With brush strip
Article number
DK 7140.535
Product description
For convenient, simple cable routing between two areas separated by a 482.6 mm (19") mounting level, for example, between the front and rear areas of the 482.6 mm (19") mounting level.
Applications
For locking and simultaneous cable routing in installation zones to the 1 U, 482.6 mm (19") mounting standard
Material
Sheet steel | Brush strip: Plastic, UL 94-HB
Surface finish
Spray-finished
Colour
RAL 7035
Mounting cut-out
Width:390 mm | Height:20 mm
Dimensions
Width:Â 482.6 mm
Units
1 U
Packs of
1 pc(s).
Weight/pack
0.486 kg
Customs tariff number
73269098
EAN
4028177166608
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable entry panel, 1 U, 482.6 mm (19"), WxH: 390x20 mm, With brush strip
Feature: 1 U, 482.6 mm mounting width with a 390x20 mm cut-out and integrated brush strip. Business Impact: Enables straightforward front-to-back cable routing within a standard 19-inch rack, reducing installation time and room for error. Application: Ideal for DK 7140.535 installations in 482.6 mm mounting levels of 19-inch cabinets. Feature: Sheet steel construction with a plastic brush strip (UL 94-HB) and a spray-finished surface in RAL 7035. Business Impact: Delivers durable enclosure components with easy maintenance and consistent appearance, improving safety and cleanliness in electrical rooms. Application: Suitable for controlled environments in industrial automation and HVAC cabinets. Feature: Brush strip inclusion enhances cable containment and reduces dust ingress. Business Impact: Minimizes cable movement and wear, extending cable life and reducing service calls. Application: Effective where dense harnessing occurs on 19-inch backplanes. Feature: Accommodates cable clamps and allows secure routing paths. Business Impact: Streamlines harness organization and simplifies future re-wiring or upgrades. Application: Particularly beneficial in retrofit projects within front and rear sections of 19-inch enclosures. Feature: Pack of 1 with a weight of 0.486 kg. Business Impact: Easy handling, safe on-site installation, and reduced freight costs. Application: Ideal for modular data-center and factory automation cabinets requiring quick replacements.
Get a Quick Quote for a Rittal 7140535
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7140535?
Enquire Now
FAQs
The DK 7140.535 is designed for standard 19-inch enclosures and fits a 1 U mounting level. Align the 482.6 mm wide panel with the mounting rails, secure it using conventional fasteners, and use the supplied brush strip to seal and guide cables. The 390x20 mm cut-out accommodates a simple cable path while allowing easy access to clamps.
Specifications include a 1 U unit width of 482.6 mm, cut-out dimensions of 390x20 mm, and a brush strip. The panel uses sheet steel with a plastic brush strip (UL 94-HB) and a spray-finished surface in RAL 7035 for durability and aesthetics.
Yes. The design supports locking and simultaneous cable routing between two areas at the 1 U, 482.6 mm mounting level, enabling clean front-to-back cable management within standard 19-inch panels.
The product aligns with ETIM 9 EC000322 and ECLASS 8.0 27400604 classifications and uses UL 94-HB brush strip material, contributing to compliance with safety and procurement classification requirements in electrical assemblies.
By simplifying cable routing and reducing clutter, the DK 7140.535 lowers installation time and maintenance effort, improves airflow management in cabinets, and supports longer service intervals with less wear on cables and clamps, delivering measurable cost savings over the life of the enclosure.
