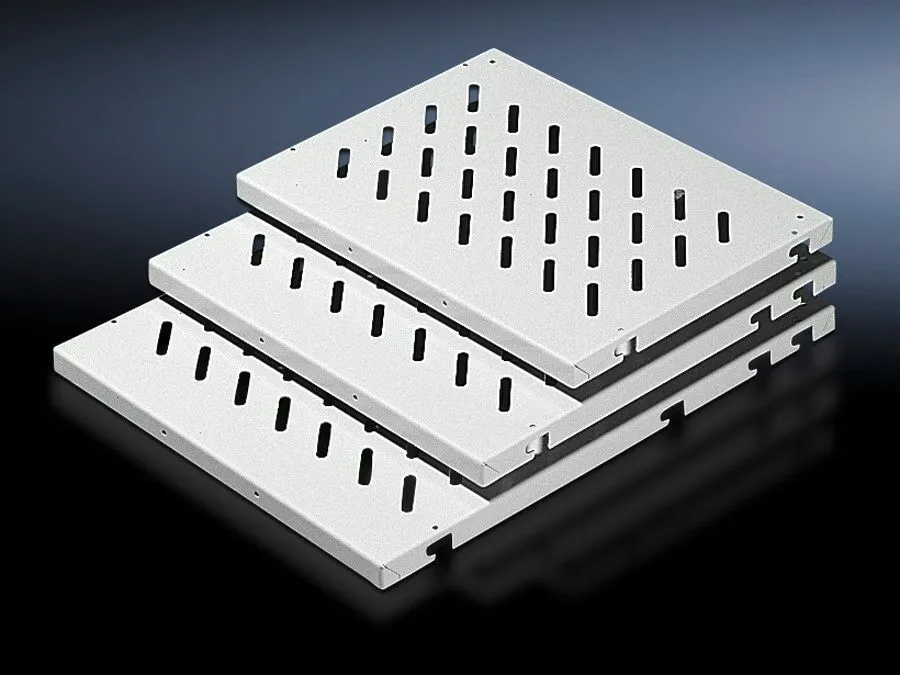

Rittal DK 7145.635 Component shelf - 50 kg load
Part Number: 7145635
Quick Summary
Rittal DK 7145.635 component shelf is a 409x600 mm mounting platform for 19 inch enclosures that supports up to 50 kg. It resolves the challenge of fixed spacing by offering variable distance between the two 482.6 mm mounting angles, enabling flexible cable routing and easier retrofit projects. In practice, industry standards for CE conformity, IP rated cabinet environments, and SIL ready design guide safe, compliant installations in automation and panel-building projects. Finished in RAL 7035 with assembly parts included, it pairs with telescopic slides for full withdrawal upgrades and reduces lifecycle costs. Note: When using TS L shaped mounting angles in network enclosures, adaptor 7827.300 is required.
Product Information
Extended Description
7145635 Rittal: DK Component shelf, WxD: 409x600 mm, 50 kg, distance between levels: variable, depth-variable on 2 482.6 mm (19") attachment levels, RAL 7035
Article number
DK 7145.635
Product description
Depending on their depth, the component shelves have several attachment points, so the distance between the 482.6 mm (19˝) mounting angles is variable within certain limits. Each component shelf secured in this way can be retrospectively upgraded to full withdrawal using telescopic slides. For this purpose, the telescopic slides are screw-fastened in place of the spacers.
Applications
For mounting two between 482.6 mm (19") mounting angles
Material
Sheet steel
Colour
RAL 7035
Supply includes
Assembly parts
Distance between mounting levels
448 mm | 548 mm | 598 mm
Load capacity
50 kg area load
Note
For TS: If L-shaped mounting angles based on TS are used in network enclosures, adaptor 7827.300 is required
Dimensions
Width: 409 mm | Depth: 600 mm
Packs of
1 pc(s).
Weight/pack
3.182 kg
Customs tariff number
94039910
EAN
4028177221413
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WxD: 409x600 mm, 50 kg, distance between levels: variable, depth-variable on 2 482.6 mm (19") attachment levels, RAL 7035
Adjustable mounting level spacing is a core feature of the DK 7145.635 shelf, allowing the distance between the two 19 inch mounting rails to be set at 448 mm, 548 mm, or 598 mm. Business impact: precise alignment of components reduces panel waste, improves airflow, and minimizes rework during panel upgrades. In practice, technicians can accommodate a wide range of equipment widths and depths without sourcing new shelves. This translates to faster project timelines and lower total cost of ownership for mixed hardware deployments. Application: ideal for control panels that house variable module configurations in automation and manufacturing environments. Depth-variable on two 19 inch attachment levels ensures compatibility with different enclosure interiors and facilitates straightforward retrofits when equipment is updated or expanded. Business impact: simplifies reconfiguration workflows and supports future expansion without new hardware. Application: common in modular enclosures used across process control and power distribution suites. Sheet steel construction with RAL 7035 finish delivers durable performance in demanding environments. Business impact: long service life with minimal maintenance, consistent colorcoding, and easy integration into standard panel aesthetics. Application: suitable for industrial automation, electrical cabinets, and data/telecom enclosures where appearance and durability matter. Supply includes assembly parts for quick assembly and maintenance planning, making procurement straightforward and reducing the risk of missing components. Business impact: streamlined stocking and faster commissioning, improving site productivity. Application: recommended for integration in projects with standard 1-packs or single unit orders. The DK shelf can be upgraded to full withdrawal by replacing spacers with telescopic slides, enabling easier access to mounted equipment during maintenance. Business impact: reduced maintenance time, improved fault isolation, and safer handling of heavy modules. Application: retrofit projects where uptime and serviceability are priorities. Note: TS adaptor 7827.300 is required when using TS L shaped mounting angles in network enclosures.
Get a Quick Quote for a Rittal 7145635
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7145635?
Enquire Now
FAQs
Begin by orienting the shelf between two 19 inch mounting rails. Set the spacing to one of 448, 548, or 598 mm to match equipment depth, then secure the shelf with the included assembly parts. If you plan a full withdrawal later, consider replacing spacers with telescopic slides. Ensure the baywidth alignment and cable routing are reviewed before final tightening.
Key specs include a width of 409 mm and depth of 600 mm, a load capacity of 50 kg per area, and adjustable mounting level spacing at 448, 548, and 598 mm. The shelf is made from sheet steel and finished in RAL 7035. It ships as a single pack with assembly parts included and is compatible with two 19 inch mounting angles.
Yes, but if you use TS L-shaped mounting angles in network enclosures, adaptor 7827.300 is required to ensure proper fit and secure attachment. Always verify the enclosure specifications and adaptor compatibility before ordering.
Upgrading to telescopic slides allows full withdrawal of mounted equipment, improving access for replacement or maintenance. The upgrade is done by screw-fastening telescopic slides in place of spacers, minimizing downtime and enabling faster service without disassembly of surrounding components.
The shelf provides flexible mounting options, adjustable spacing, and upgrade paths, reducing the need for multiple SKUs and enabling rapid reconfigurations. Long-term benefits include lower lifecycle costs, faster commissioning, easier maintenance, and better space management in control cabinets and distribution panels.
