Rittal 7145735 DK Component Shelf - 50 kg Load Capacity
Part Number: 7145735
Quick Summary
Rittal 7145735 DK Component Shelf provides adjustable mounting for 19 in. enclosures, enabling flexible equipment layouts. A common challenge is fixed spacing between mounting angles that underutilizes available rack space and complicates future upgrades. This DK shelf aligns with industry classifications ETIM EC002620 and ECLASS 27189261, helping procurement and compatibility across catalogs. With variable distance between levels, two 19" attachment points, and optional telescopic slides for full withdrawal, it supports scalable configurations without changing the enclosure. In practice, engineers gain better space optimization, faster installation, and consistent finishes (RAL 7035) across the rack system, while retaining compatibility with standard Rittal enclosure accessories and mounting hardware.
Product Information
Extended Description

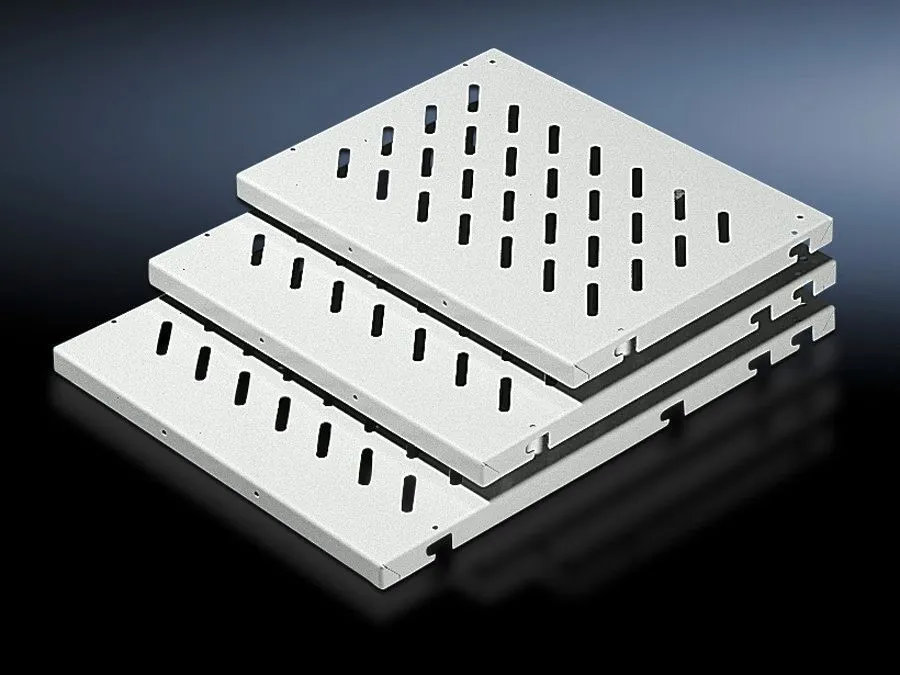

7145735 Rittal: DK Component shelf, WxD: 409x700 mm, 50 kg, distance between levels: variable, depth-variable on 2 482.6 mm (19") attachment levels, RAL 7035
Article number
DK 7145.735
Product description
Depending on their depth, the component shelves have several attachment points, so the distance between the 482.6 mm (19˝) mounting angles is variable within certain limits. Each component shelf secured in this way can be retrospectively upgraded to full withdrawal using telescopic slides. For this purpose, the telescopic slides are screw-fastened in place of the spacers.
Applications
For mounting two between 482.6 mm (19") mounting angles
Material
Sheet steel
Colour
RAL 7035
Supply includes
Assembly parts
Distance between mounting levels
548 mm | 648 mm | 698 mm
Load capacity
50 kg area load
Note
For TS: If L-shaped mounting angles based on TS are used in network enclosures, adaptor 7827.300 is required
Dimensions
Width: 409 mm | Depth: 700 mm
Packs of
1 pc(s).
Weight/pack
3.77 kg
Customs tariff number
94039910
EAN
4028177221420
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WxD: 409x700 mm, 50 kg, distance between levels: variable, depth-variable on 2 482.6 mm (19") attachment levels, RAL 7035
Feature: Adjustable distance between mounting levels enables flexible spacing to fit diverse equipment footprints. Business Impact: Maximizes usable rack space and reduces post-deployment rework. Application: Ideal for multi-slot equipment in 482.6 mm (19") rails in demanding industrial cabinets.Feature: Variable depth with two 19" attachment levels supports diverse enclosure depths. Business Impact: Simplifies layout planning and increases adaptability to future hardware. Application: Compatible with standard 19" rails in modular enclosures.Feature: Telescopic slides can retrofit the shelf to full withdrawal by replacing spacers. Business Impact: Enables easy access and serviceability, minimizing downtime during maintenance. Application: Retrofit projects without complete enclosure replacement.Feature: Material and color specifications—sheet steel in RAL 7035. Business Impact: Durable, uniform appearance across facilities with easy color-code for organization. Application: Fits standardized fleet of Rittal enclosures.Feature: Compatibility note for TS L-shaped mounting angles requiring adaptor 7827.300. Business Impact: Clear guidance reduces installation errors and ensures regulatory alignment. Application: Works with TS-based networks and enclosure configurations.Feature: Supply includes assembly parts and clear dimensional data (WxD 409x700 mm; 50 kg load). Business Impact: Quick procurement and precise planning, reducing spare-part needs. Application: Ready-to-install shelf for new builds and upgrades.
Get a Quick Quote for a Rittal 7145735
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7145735?
Enquire Now
FAQs
The shelf supports two 19" mounting angles and offers variable spacing between levels (548 mm, 648 mm, and 698 mm). It is compatible with two 482.6 mm (19") attachment levels and can be retrofitted with telescopic slides by replacing spacers, enabling full withdrawal where needed.
The DK 7145.735 provides a 50 kg area load capacity. This capacity is designed for distributed loads across the shelf surface and supports commonly configured 19" equipment layouts within Rittal enclosures.
Yes. The component shelf can be retrospectively upgraded to full withdrawal by screw-fastening telescopic slides in place of spacers, allowing easier access to mounted equipment for maintenance or upgrades without replacing the enclosure.
The shelf measures 409 mm in width and 700 mm in depth, is made from sheet steel, and features a color finish of RAL 7035 to ensure consistency with standard enclosures and easy identification within a facility.
The DK 7145.735 component shelf aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, supporting interoperability in catalogs and ERP systems, and ensuring consistent specification language across projects.
