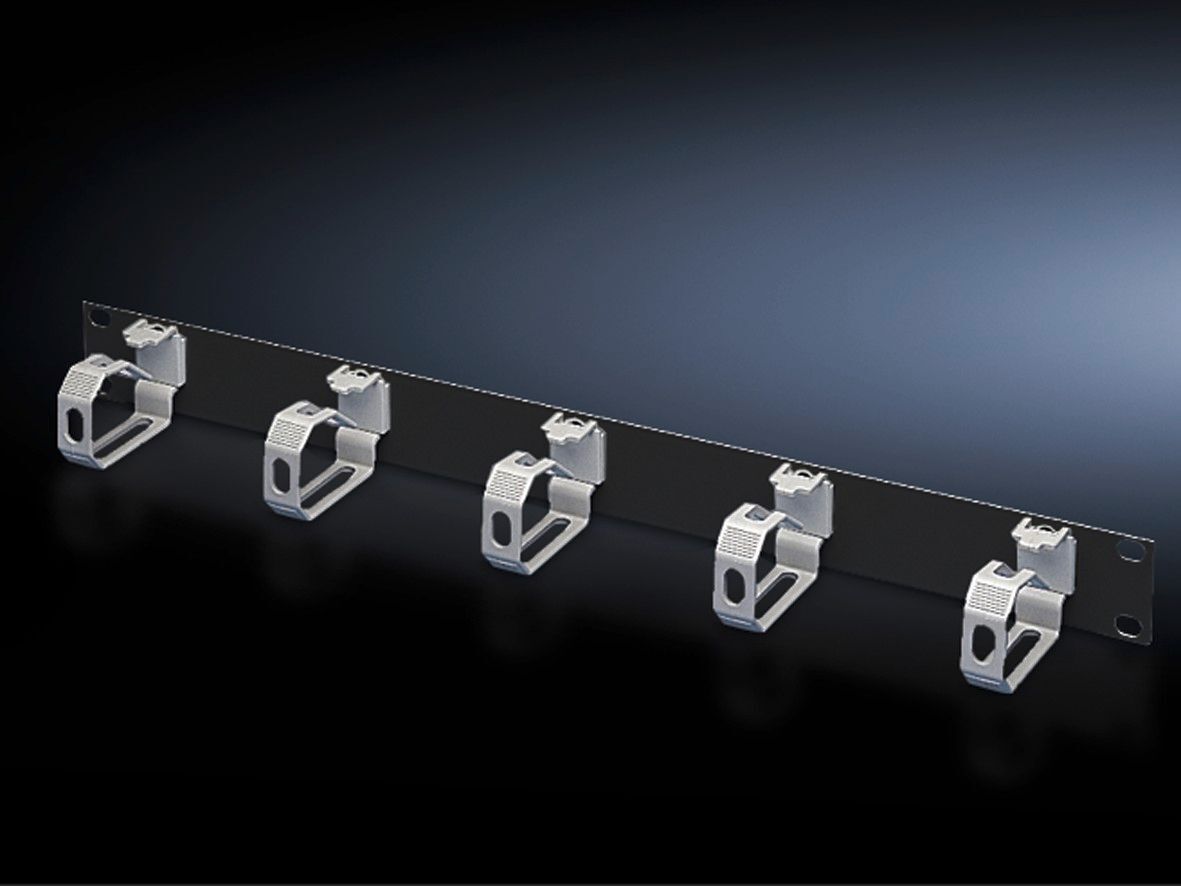

Rittal DK 7159.017 Shunting Panel - 1U, 482.6 mm, UL 94-V0
Part Number: 7159017
Quick Summary
Rittal DK 7159.017 shunting panel is a compact 1U solution for horizontal cable management in 19" enclosures. It addresses the common pain point of tangled patch cords and cramped cabinet layouts by providing dedicated rings for clean routing. The datasheet references ETIM EC000322 and ECLASS 27400604 classifications, while the ring material carries UL 94-V0 flame rating for safety. With a robust sheet-steel panel in RAL 9005 and the included cable rings, this panel delivers reliable installation, easy maintenance, and scalable cable management for growing control cabinets. Ideal for manufacturing, automation, and process environments requiring tidy, serviceable cable runs.
Product Information
Extended Description
7159017 Rittal: DK shunting panel, with plastic straps, 1 U, WHD: 482.6 mm (19") x 44 x 70 mm, sheet steel, RAL 9005
Article number
DK 7159.017
Product description
For horizontal management of the patch cables, with 5 cable shunting rings.
Material
Panel: Sheet steel | Ring: Plastic UL 94-V0
Supply includes
Cable management panel | Cable shunting rings (supplied loose)
Note
The sizes given are external dimensions.
Dimensions
Width: 482.6 mm
Units
1 U
Ring dimensions
Ring depth: 70 mm | Ring height: 44 mm
Packs of
1 pc(s).
Weight/pack
0.48 kg
PCF per pack (cradle-to-gate)
1.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177164161
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK shunting panel, with plastic straps, 1 U, WHD: 482.6 mm (19") x 44 x 70 mm, sheet steel, RAL 9005
Feature: 1U panel with five cable shunting rings enables organized, horizontal routing of patch cables. Impact: reduces installation time, improves airflow, and minimizes rearrangement during maintenance. Application: ideal for 19" control panels in industrial automation projects using 482.6 mm wide cabinet spaces. Long-tail keywords: 1U cable management panel, patch cable management, horizontal cable routing, 19" enclosure accessories, Rittal cable management. Feature: Panel constructed from sheet steel with UL 94-V0 plastic rings resists wear and provides fire safety for flexible connections. Impact: enhances cabinet durability and safety compliance while supporting long service life in harsh environments. Application: suitable for electrical cabinets demanding flame-rated internal components and robust metal enclosures. Long-tail keywords: sheet steel panel, UL 94-V0 rings, flame-rated plastic, electrical cabinet safety, robust enclosure components. Feature: Precise dimensions — 482.6 mm width, 1U height, with ring depth 70 mm and ring height 44 mm — enabling predictable fit in standard 19" racks. Impact: simplifies planning, BOM accuracy, and installation planning in project scopes. Application: useful for system integrators designing modular cabinet layouts. Long-tail keywords: 482.6 mm width, 1U height, ring depth 70 mm, 19" rack compatibility. Feature: Supply includes the cable management panel plus loose cable shunting rings for flexible assembly. Impact: speeds up on-site deployment and reduces the need for additional parts. Application: straightforward to configure during enclosure builds or retrofit projects. Long-tail keywords: cable management panel with rings, included shunting rings, quick installation, retrofit cabinet upgrade. Feature: Environmental and procurement data — 0.48 kg per pack, PCF 1.8 kg CO2 eq (Cat B), EAN 4028177164161, and tariff 94039910. Impact: supports lifecycle assessments, accurate stock-keeping, and compliant sourcing. Application: aligns with sustainability reporting and global procurement workflows. Long-tail keywords: PCF 1.8 kg CO2 eq, EAN 4028177164161, packaging weight, international shipping.
Get a Quick Quote for a Rittal 7159017
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7159017?
Enquire Now
FAQs
Yes. The DK 7159.017 is a 1U, 482.6 mm wide cable management panel designed for standard 19" cabinets. It ships with five cable shunting rings and can be mounted in typical enclosure backplanes using conventional hardware, ensuring quick integration into existing control panels.
Key specs include 1U height, 482.6 mm width, ring depth 70 mm, ring height 44 mm, panel material sheet steel, rings made from UL 94-V0 plastic, and RAL 9005 finish. Supplied as one panel with loose rings for flexible cabling, EAN 4028177164161, and tariff code 94039910.
The five cable shunting rings provide dedicated routing points for patch cables, reducing tangling and allowing clean, horizontal organization. This simplifies maintenance, speeds up changes, and improves airflow within the enclosure, contributing to longer component life and easier fault isolation.
Yes. The rings are made from plastic rated UL 94-V0, indicating a flame-retardant performance suitable for internal cabinet use. While the panel itself is sheet steel, the rings’ rating supports safer installation in electrical enclosures and aligns with common electrical safety expectations.
The pack weight is 0.48 kg, with PCF of 1.8 kg CO2 eq (Category B) for cradle-to-gate assessment. The product carries EAN 4028177164161 and tariff code 94039910, aiding accurate stock control and sustainability reporting in global procurement workflows.
