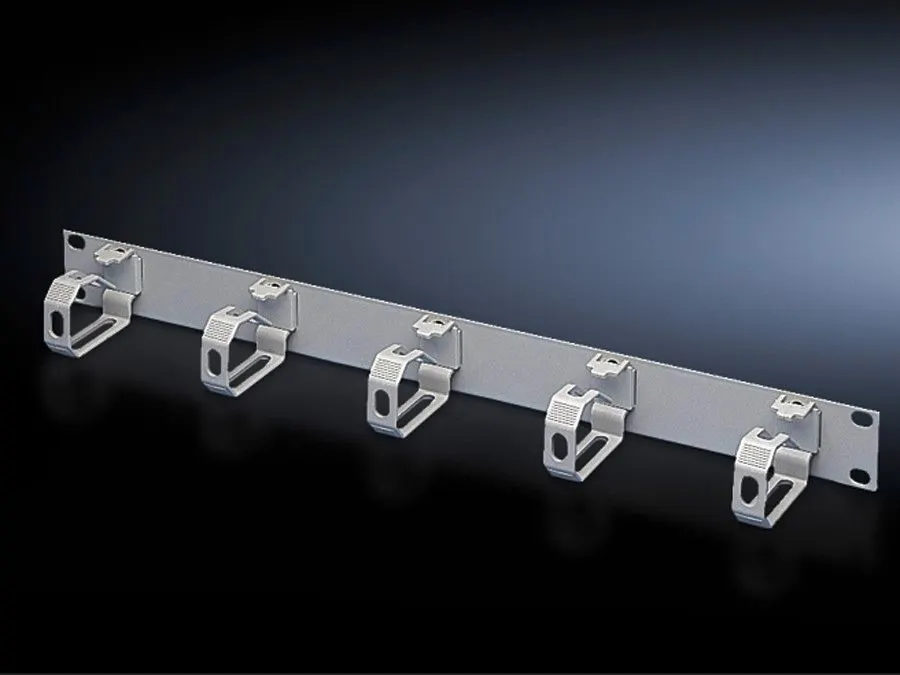

Rittal 7159035 Cable Management Panel - 1U with plastic rings
Part Number: 7159035
Quick Summary
Cable management panel from Rittal DK 7159.035 delivers precise horizontal cable routing for switchgear and control cabinets. Unstructured patch cables lead to heat buildup, maintenance delays, and unreliable connections. It aligns with ETIM 9 EC000322 and ECLASS 8.0 27400604, and uses UL 94-V0 rated plastic rings for safety. The 1 U panel supports clean, scalable wiring while enabling straightforward retrofits and diagnostics in busy control rooms. With this solution, engineers gain improved airflow, faster cable tracing, and reduced risk of accidental disconnections. In addition to reliable performance, the unit suits wiring & connectivity projects and supports standard-compliant installation across diverse industrial sites.
Product Information
Extended Description
7159035 Rittal: DK Cable management panel, 1 U, with plastic rings
Article number
DK 7159.035
Product description
For horizontal management of the patch cables, with 5 cable shunting rings.
Material
Panel: Sheet steel | Ring: Plastic UL 94-V0 | Ring: Polyamide
Supply includes
Cable management panel | Cable shunting rings (supplied loose)
Note
The sizes given are external dimensions.
Dimensions
Width: 482.6 mm
Units
1 U
Ring dimensions
Ring depth: 70 mm | Ring height: 44 mm
Packs of
1 pc(s).
Weight/pack
0.477 kg
PCF per pack (cradle-to-gate)
1.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177166691
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable management panel, 1 U, with plastic rings
Feature: 1 U panel width 482.6 mm with 5 cable shunting rings. Impact: establishes clean, scalable wiring in compact 19-inch enclosures, reducing misrouting and enabling easier future expansions. Application: ideal for switchgear and control cabinets requiring organized horizontal cable management. Feature: Material composition—panel made of sheet steel; rings in UL 94-V0 plastic and polyamide. Impact: combines durability with fire-retardant, high-visibility cable routing components, increasing safety margins and compliance in high-density installations. Application: suitable for harsh industrial environments where long-term reliability matters. Feature: Dimensions and installation footprint—ring depth 70 mm, ring height 44 mm; external width 482.6 mm; 1 U height. Impact: predictable mounting in standard 19-inch racks and cabinets, simplifying retrofits. Application: reduces installation time and measurement errors during panel integration. Feature: Supplied as a complete kit—cable management panel with rings (supplied loose). Impact: faster on-site setup and flexible cable arrangement, minimizing labor costs. Application: compatible with modular cabling schemes and rapid reconfiguration. Feature: Sustainability data—PCF 1.8 kg CO2 eq per pack (Cat B). Impact: supports cradle-to-gate environmental reporting and responsible sourcing. Application: aligns with green manufacturing initiatives in automation projects.
Get a Quick Quote for a Rittal 7159035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7159035?
Enquire Now
FAQs
Yes. The DK 7159.035 is a 1U, 482.6 mm wide cable management panel designed to fit standard 19-inch racks. It provides a consistent mounting footprint for reliable integration in control cabinets, switchgear enclosures, and other industrial enclosures.
Key features include a 1U height, 482.6 mm width, five cable shunting rings, and ring geometry of 70 mm depth and 44 mm height. The panel is steel, with UL 94-V0 plastic rings and polyamide rings, and ships with the panel plus loose rings for flexible assembly.
The product aligns with ETIM 9 EC000322 and ECLASS 8.0 27400604 classifications, and uses UL 94-V0 rated plastic rings for flame retardancy. These references support data-quality, interoperability, and safety expectations in industrial electronics environments.
By organizing patch cables horizontally in a dedicated 1U space, airflow around cables is improved, reducing heat buildup. The tidy layout also speeds cable tracing during maintenance and diagnostics, lowering mean time to repair and decreasing risk of accidental disconnections.
The product has PCF of 1.8 kg CO2 eq per pack (Category B). Each pack weighs about 0.477 kg and contains one cable management panel with five rings (supplied loose), supporting cradle-to-gate environmental reporting and sustainability considerations in procurement.
