Rittal 7163560 Cable Support - kink-free routing for D: 600 mm
Part Number: 7163560
Quick Summary
DK cable support delivers kink-free routing for central shelves in Rittal enclosures, simplifying cabling and future maintenance. Technicians often struggle with tangled bundles and limited access, which slows assembly and increases wear. This solution aligns with industry expectations for durable metal-to-plastic interfaces, while supporting ETIM EC000322 and ECLASS 27400604 compatibility checks; where regional regulations apply, verify CE marking and IP/SIL requirements as needed. In practice, you gain predictable cable paths, faster installation, and cleaner serviceability, translating to lower maintenance costs and higher system uptime across critical automation applications.
Product Information
Extended Description
7163560 Rittal: DK Cable support, kink-free, For D: ? 600 mm, Max. depth component shelf = depth rack-200 mm
Article number
DK 7163.560
Product description

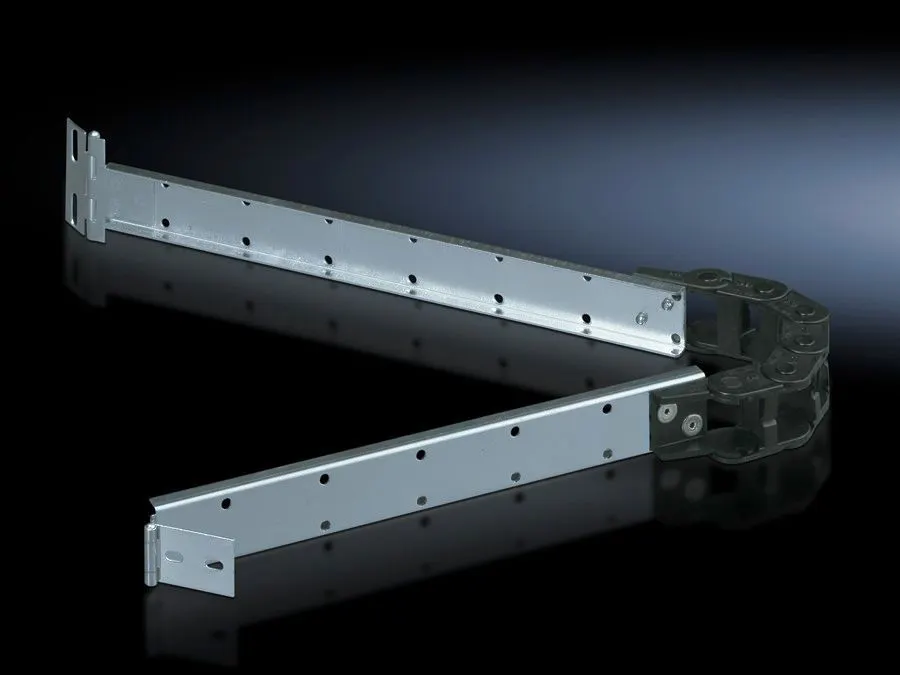

For secure routing of connection cables from the component shelf to the clamping point. Kink-free cable routing in the central part via mobile chain links. The attachment may be released on both sides thanks to clamps.
Material
Sheet steel, zinc-plated | Centre part: Plastic
Supply includes
Assembly parts
Note
Max. depth of component shelves = Enclosure depth - 200 mm.
To fit
Depth: ≤ 600 mm
Packs of
1 pc(s).
Weight/pack
0.627 kg
PCF per pack (cradle-to-gate)
2.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177433557
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable support, kink-free, For D: ? 600 mm, Max. depth component shelf = depth rack-200 mm
Feature: Kink-free central routing via mobile chain links → Business Impact: Reduces cable strain and improves airflow around component shelves, lowering risk of wear and overheating → Application: Central cable routing inside compact enclosures, enabling faster commissioning in control panels. Feature: Attachment may be released on both sides via clamps → Business Impact: Flexible mounting and maintenance access in tight installations, reducing downtime during upgrades or rework → Application: Mounting on both sides of the central section for adaptable layouts in varied rack depths. Feature: Material composition Sheet steel, zinc-plated with a plastic center → Business Impact: Durable, corrosion-resistant structure with a lightweight center for easy handling → Application: Long-term enclosure installations in industrial environments with frequent cabling changes. Feature: To fit depth ≤ 600 mm and depth component shelf ≈ rack depth minus 200 mm → Business Impact: Clear compatibility with common enclosure sizes, minimizing custom fabrication → Application: Standardized deployment in 600 mm deep racks and similar configurations. Feature: PCF 2.4 kg CO2 eq (Cat B) and assembly parts included → Business Impact: Lower carbon footprint and streamlined installation with included parts → Application: Sustainable projects and faster, straightforward assembly in new builds.
Get a Quick Quote for a Rittal 7163560
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7163560?
Enquire Now
FAQs
Install the DK 7163.560 by positioning the central kink-free routing component along the component shelf and securing it with the included assembly parts. Use the clamps to release attachment on both sides as needed, ensuring the depth fits a enclosure depth of 600 mm or less. Align with the clamping point and verify cable paths before finalizing.
The product is designed for enclosure depths up to 600 mm. Plan for a max component-shelf depth that equals the enclosure depth minus 200 mm to maintain kink-free routing and sufficient clearance for cables and clamps during assembly and future maintenance.
Yes. The central part uses mobile chain links for kink-free routing and features clamps that allow attachment from both sides, enabling flexible installation in tight spaces and simplifying future reconfiguration or repair without removing the entire assembly.
The product carries a PCF value of 2.4 kg CO2 eq (Cat B), reflecting cradle-to-gate emissions based on weight. This, combined with standard assembly parts, supports lower impact installations and helps teams meet corporate sustainability targets in automation projects.
The DK 7163.560 is classified under ETIM 9 (EC000322) and ECLASS 8.0 (27400604), with the EAN 4028177433557. While regional CE/IP/SIL requirements depend on the application, these classifications help procurement align with internal data models and compliance checks.
