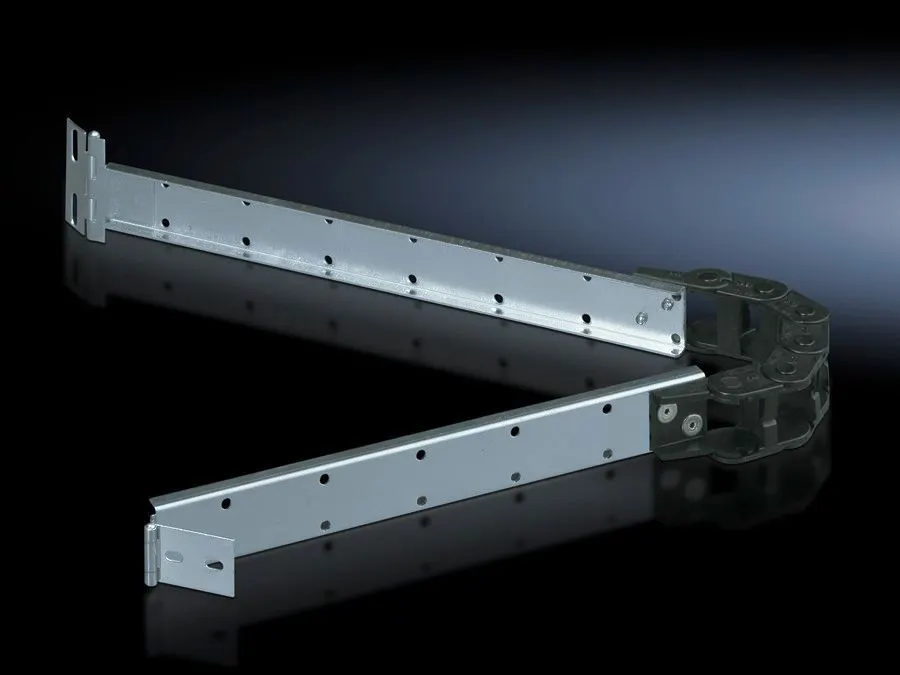

Rittal 7163565 DK Cable support - EC000322
Part Number: 7163565
Quick Summary
DK Cable support is a kink-free routing accessory that streamlines central-cabinet cable management in enclosures. Engineers often struggle with cable pinching, misrouting, and difficult access during installation when clamps on both sides limit maneuverability. This solution aligns with ETIM EC000322 and ECLASS 27400604, ensuring data compatibility and standardised sourcing. The design supports PCF category B environmental profiling, reinforcing responsible sourcing. By combining robust metal construction with a plastic centre part and a modular attachment, it delivers measurable business value through faster assembly, reduced maintenance downtime, and lower risk of cable damage in high-density enclosures.
Product Information
Extended Description
7163565 Rittal: DK Cable support, kink-free, For D: > 600 mm, Max. depth component shelf = depth rack-200 mm
Article number
DK 7163.565
Product description
For secure routing of connection cables from the component shelf to the clamping point. Kink-free cable routing in the central part via mobile chain links. The attachment may be released on both sides thanks to clamps.
Material
Sheet steel, zinc-plated | Centre part: Plastic
Supply includes
Assembly parts
Note
Max. depth of component shelves = Enclosure depth - 200 mm.
To fit
Depth: > 600 mm
Packs of
1 pc(s).
Weight/pack
0.729 kg
PCF per pack (cradle-to-gate)
2.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177438576
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable support, kink-free, For D: > 600 mm, Max. depth component shelf = depth rack-200 mm
Feature → Kink-free central routing via mobile chain links → Business Impact → Reduces cable wear and signal integrity issues, enabling faster, error-free wiring and easier future modifications. Application → Suitable for D-depth enclosures > 600 mm, maximizing usable shelf depth. Feature → Attachment releasable on both sides via clamps → Business Impact → Improves installation flexibility and maintenance access, cutting service time and enabling quick reconfiguration. Application → Ideal for modular rack systems where future rework is anticipated.Feature → Material mix sheet steel, zinc-plated with a plastic centre → Business Impact → Combines rigidity with cost efficiency and easy maintenance, supporting long service life in industrial environments. Application → Enclosures exposed to routine assembly and disassembly cycles. Feature → Supplied with assembly parts → Business Impact → Reduces additional sourcing steps and installation time, lowering total cost of ownership. Application → Directly mounts to component shelves and clamps for immediate use. Feature → Depth guidance: max component shelf depth = rack depth − 200 mm → Business Impact → Ensures precise fit and predictable installation, minimizing overhang and clearance issues. Application → Design guidance for cabinet builders focusing on D-depth configurations. Feature → PCF 2.8 kg CO2 eq (Cat B) and weight 0.729 kg per pack → Business Impact → Demonstrates environmental responsibility while maintaining practical weight for handling and shipping. Application → Helpful for eco-conscious procurement and lifecycle assessments.
Get a Quick Quote for a Rittal 7163565
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7163565?
Enquire Now
FAQs
The DK Cable support is designed for enclosures with depth greater than 600 mm. Install by affixing the central part to the component shelf using the provided assembly parts, then secure the sides with clamps. The design allows release on both sides, enabling flexible reconfiguration without disassembly of the entire rack. Ensure the enclosure depth is within the specified range for optimal fit.
Kink-free routing is achieved through a central plastic centre with mobile chain links that guide cables smoothly from the component shelf to the clamping point. The sheet steel, zinc-plated structure provides rigidity, while the centre plastic reduces friction. This combination minimizes cable wear, maintains bend radius, and supports consistent electrical performance in dense cable runs.
Ideal for electrical and automation panels in manufacturing, data centers, and process industries where enclosure depth exceeds 600 mm and organized cabling is critical. It supports secure routing from shelves to clamps, reduces maintenance time, and integrates with standard Rittal enclosures. The design is compatible with ETIM EC000322 and ECLASS 27400604 data models for streamlined procurement.
The DK Cable support aligns with ETIM 9 EC000322 and ECLASS 8.0 27400604 for data and compatibility. While not a traditional CE or IP rating, the product’s documentation and material choices (galvanized sheet steel, plastic components) support common industrial cabling standards and lifecycle assessments, including PCF category B environmental impact.
By providing fast, tool-free side-release assembly and reliable kink-free routing, maintenance is accelerated and reconfiguration becomes straightforward, reducing downtime during expansions or cable upgrades. The included assembly parts minimize extra stocking, and the documented PCF footprint helps in lifecycle planning and sustainability reporting.
