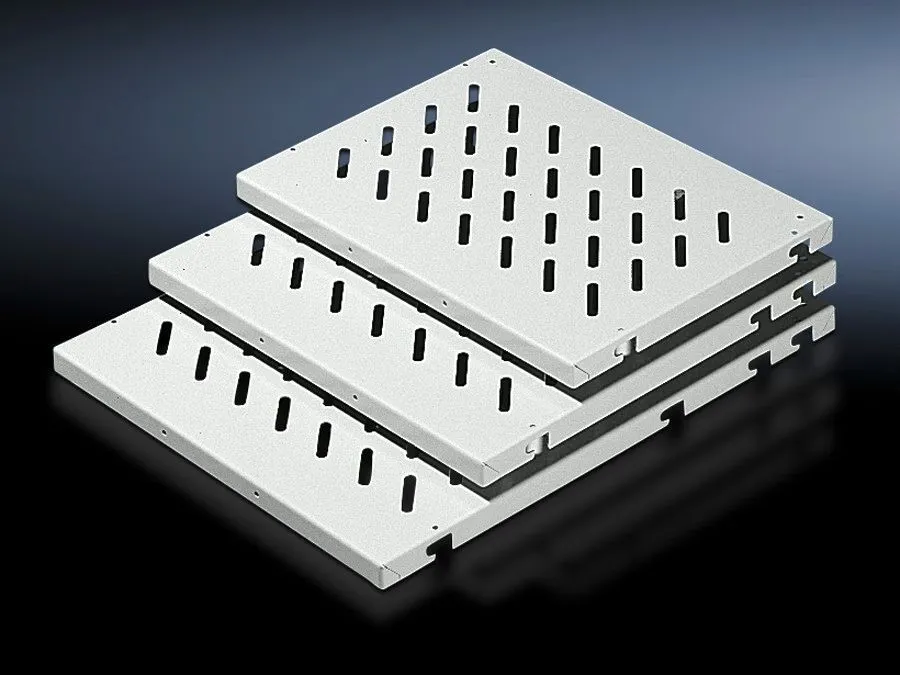

Rittal DK 7165.035 Component Shelf - Slotted, 50 kg Load
Part Number: 7165035
Manufacturer
Rittal
Part number
7165035
Alt Part Number
DK 7165.035
Quick Summary
Rittal DK 7165.035 Component Shelf enables frame attachment inside enclosures without 482.6 mm (19") accommodation, streamlining installation in compact panels. For installers facing space constraints, the slotted design supports a 25 mm pitch mounting on punched sections, easing rail installation and bolt placement. This product aligns with ETIM EC002620 and ECLASS 27189261 classifications, while PCF cradle-to-gate data supports sustainability and cost transparency. In practice, it accelerates panel assembly in VX, VX IT, and TS IT families, improves enclosure depth management, and reduces on-site modification time, delivering predictable mounting results and improved serviceability for control panels.
Product Information
Extended Description
7165035 Rittal: DK Component shelf, WHD: 471x29x500 mm, 50 kg, Slotted, For W: 600 mm, RAL 7035
Article number
DK 7165.035
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 4 pc(s). fixing bolts
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
50 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 471 mm | Height: 29 mm | Depth: 500 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 600 mm
Packs of
1 pc(s).
Weight/pack
3.187 kg
PCF per pack (cradle-to-gate)
12.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177165809
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 471x29x500 mm, 50 kg, Slotted, For W: 600 mm, RAL 7035
Feature → Business Impact → Application: Slotted design enables mounting bolts or rails on a 25 mm pitch within the enclosure depth, reducing custom fabrication time and enabling flexible layouts for dense control panels. This translates to measurable efficiency gains during panel assembly and easier future upgrades across VX, VX IT, and TS IT enclosures. Application: suitable for 600 mm wide enclosures where 19-inch rails are not present.Feature → Business Impact → Application: 50 kg area load capacity provides reliable support for drives, power supplies, and I/O modules, improving reliability and reducing risk of sag or misalignment. This is particularly valuable for mid-size PLCs and modular I/O in industrial automation cabinets. Application: control panels with mixed equipment expected to endure frequent thermal cycling.Feature → Business Impact → Application: Slotted, sheet steel construction with spray finish in RAL 7035 offers durable protection in factory environments, minimizing corrosion and maintenance costs. Application: factory-floor enclosures exposed to dust and humidity, where longevity matters.Feature → Business Impact → Application: Supplied with four fixing bolts and a static installation option simplifies commissioning, enabling faster start-up and fewer site-based postponements. Application: rapid deployment in production lines requiring quick mounting of components without dedicated tools.Feature → Business Impact → Application: 471x29x500 mm WHD and compatibility with 600 mm wide enclosures support easy integration with VX, VX IT, and TS IT families, helping engineers plan layouts with confidence. Application: standardizing component shelves across multiple enclosure families to reduce BOM complexity.Insight: Industry adoption favors modular, compliant mounting solutions. This shelf’s compatibility with common enclosure widths and its clear load and dimensional specs help engineers reduce risk during design reviews and procurement while supporting sustainable decision-making with PCF data.
Get a Quick Quote for a Rittal 7165035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7165035?
Enquire Now
FAQs
Install on punched sections using a 25 mm pitch pattern. The shelf is designed for static mounting with fixing bolts (included) and requires two punched sections with mounting flanges for inner mounting level when deeper assembly is needed. This reduces field fabrication and speeds commissioning.
Key specs include a 50 kg area load capacity, WHD of 471x29x500 mm, and compatibility with 600 mm wide VX, VX IT, and TS IT enclosures. Material is sheet steel with a spray finish in RAL 7035, ensuring durability in industrial environments.
Yes. It is designed for enclosures with a 600 mm width and supports frame attachment inside enclosures without 19-inch accommodation, making it suitable for VX, VX IT, and TS IT families.
ETIM 9: EC002620 and ECLASS 8.0: 27189261 classify this component. PCF data reports a cradle-to-gate CO2 footprint of 12.1 kg CO2 eq (Category B). EAN is 4028177165809, aiding precise part identification.
The shelf reduces on-site modifications and commissioning time by enabling quick, flexible mounting. Its 50 kg capacity supports heavier modules, reducing the need for alternative mounting solutions and improving long-term serviceability and life-cycle cost.
