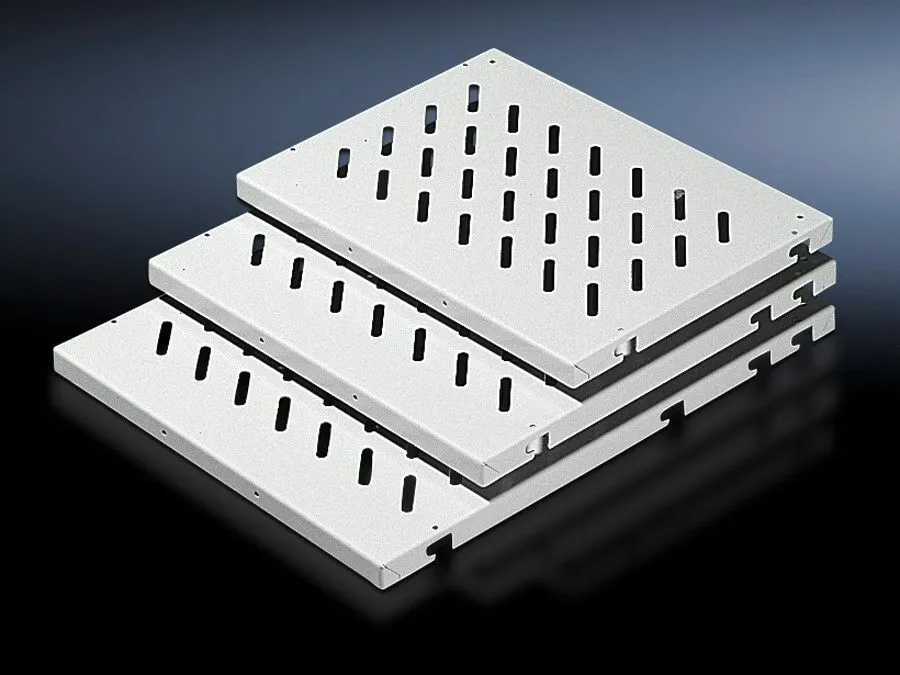

Rittal DK 7166.735 Component Shelf - Slotted, 50 kg Load
Part Number: 7166735
Manufacturer
Rittal
Part number
7166735
Alt Part Number
DK 7166.735
Quick Summary
Rittal DK 7166.735 Component Shelf provides slotted mounting for frames inside compact enclosures. In spaces without 19 inch accommodation, secure, quick mounting is a common project bottleneck. It aligns with ETIM EC002620 and ECLASS 8.0 27189261 classifications and reports a PCF Category B environmental footprint. With a 50 kg load rating and 471x29x700 mm WHD, the spray-finished sheet steel shelf delivers reliable support and a professional appearance in VX, VX IT, and TS IT enclosures. Designed for a 25 mm pitch pattern and 600 mm enclosure width, it reduces assembly time and helps maintain consistent enclosure labeling and organization. Color is RAL 7035, providing durable aesthetics in industrial environments while supporting standardization across projects.
Product Information
Extended Description
7166735 Rittal: DK Component shelf, WHD: 471x29x700 mm, 50 kg, Slotted, For W: 600 mm, RAL 7035
Article number
DK 7166.735
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 4 pc(s). fixing bolts
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
50 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 471 mm | Height: 29 mm | Depth: 700 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 600 mm
Packs of
1 pc(s).
Weight/pack
4.088 kg
PCF per pack (cradle-to-gate)
15.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177221383
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 471x29x700 mm, 50 kg, Slotted, For W: 600 mm, RAL 7035
Slotted mounting design enables flexible positioning of mounting bolts or rails, supporting a 25 mm pitch pattern in enclosure depth. This translates to faster installs, easier future upgrades, and improved cable management in tight spaces. The 50 kg area load ensures reliable support for mounting components without compromising enclosure integrity, reducing field rework and warranty risk. Compatibility with VX, VX IT, and TS IT enclosures at 600 mm width streamlines replacement projects and standardizes parts across systems, lowering procurement complexity. Supplied with four fixing bolts, the shelf enables immediate static installation on a punched section, minimizing on-site handling and drill time. For inner mounting levels, two punched sections with mounting flanges are required, providing a robust, vibration-resistant mounting solution. The sheet steel, spray-finished finish in RAL 7035 delivers durable aesthetics and corrosion resistance suitable for harsh industrial environments, while the PCF footprint (Cat B) supports responsible sourcing data. In practice, this shelf simplifies design validation, supports scalable expansion, and reduces total cost of ownership by standardizing accessory infrastructure.
Get a Quick Quote for a Rittal 7166735
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7166735?
Enquire Now
FAQs
The DK 7166.735 component shelf is designed for VX, VX IT, and TS IT enclosures with a 600 mm width. Its WHD is 471x29x700 mm, and installation supports static mounting with four fixing bolts included. For inner mounting levels, two punched sections with mounting flanges are required to complete the setup.
This shelf provides a 50 kg area load capacity, enabling secure support for mounted components within a compact enclosure. When planning layouts, consider the total weight of devices and cabling distributed across the shelf to maintain enclosure integrity and compliance with prescribed load limits.
Yes. The design supports mounting bolts or rails on a 25 mm pitch pattern within the enclosure depth, offering flexible positioning for components and future upgrades without needing custom fabrication.
The shelf is intended for static installation with 50 kg capacity and includes four fixing bolts. For inner mounting levels, two punched sections with mounting flanges are required. This configuration minimizes on-site modification and ensures robust attachment.
The DK 7166.735 aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications. It has a PCF footprint of 15.6 kg CO2 eq (Cat B) and uses spray-finished sheet steel in color RAL 7035, supporting consistent procurement data and sustainability reporting.
