Rittal 7169535 Fibre Optic Patch Panel - SC Duplex
Part Number: 7169535
Quick Summary
Rittal 7169535 Fibre Optic Patch Panel provides flexible fibre termination for DIN rail enclosures in data centers and industrial automation cabinets. Engineers often struggle with mounting multiple fiber connections in tight spaces while maintaining signal integrity and organized cabling. The panel aligns with industry standards ETIM 9 EC001130 and ECLASS 8.0 to simplify procurement and cataloging, while its RAL 7035 color ensures consistent equipment styling across install sites. Built as a 1U unit with 12 locations, it supports SC duplex couplings for reliable fibre optics in compact cabinets. By simplifying splicing panel installations, it delivers faster deployments, easier maintenance, and lower total cost of ownership for enterprise and manufacturing environments.
Product Information
Extended Description
7169535 Rittal: DK Patch panel
Article number
DK 7169.535
Product description

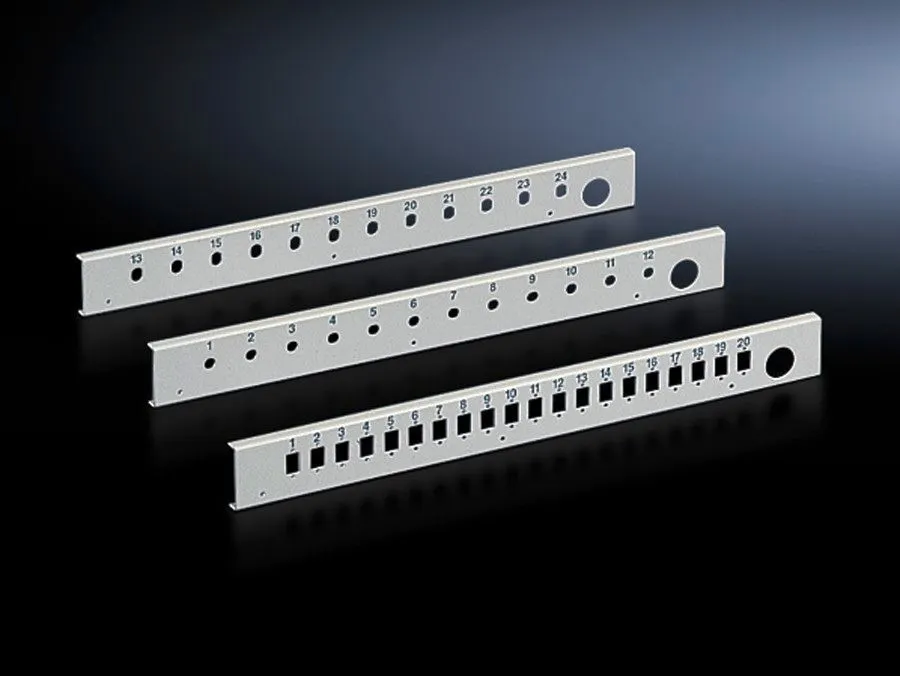

For splicing boxes, there is a choice of multiple panels with corresponding cut-outs for the installation of single or duplex fibre-optic couplings.
Material
Sheet steel
Colour
RAL 7035
Number of locations
12
for fibre-optic coupling
SC duplex
Units
1 U
Packs of
1 pc(s).
Weight/pack
0.297 kg
Customs tariff number
94039910
EAN
4028177166752
ETIM 9
EC001130
ECLASS 8.0
19170113
Product description
DK Patch panel
Feature → Business Impact → Application: The 1 U DK Patch Panel with 12 fibre-optic locations enables dense, tidy cabling in confined DIN rail enclosures, improving airflow and accessibility for maintenance teams in control panels and network cabinets. This translates to faster fibre terminations and reduced chance of misconnections in high-density racks. Application: data centers, industrial automation cabinets. Feature → Business Impact → Application: Sheet steel construction provides robust mechanical strength for demanding environments, reducing panel flex and wear in vibration-prone applications. This supports long service life in manufacturing lines and field installations. Feature → Business Impact → Application: RAL 7035 color coding helps operators quickly identify fibre panels within large racks, aiding standardization and reducing commissioning time during multi-site deployments. Application: live production lines, panel shops. Feature → Business Impact → Application: SC duplex compatibility supports modern fibre architectures, enabling seamless integration with common fibre optic modules and patch cords. Application: splicing boxes and modular cabinets. Feature → Business Impact → Application: 1U, 12-location configuration optimizes space, enabling compact layouts and easier retrofits in legacy systems. Application: retrofits and new builds in automation cells. Feature → Business Impact → Application: Lightweight 0.297 kg per pack aids handling and reduces shipping and on-site lifting effort, lowering installation costs. Application: field service and warehouse stocking.
