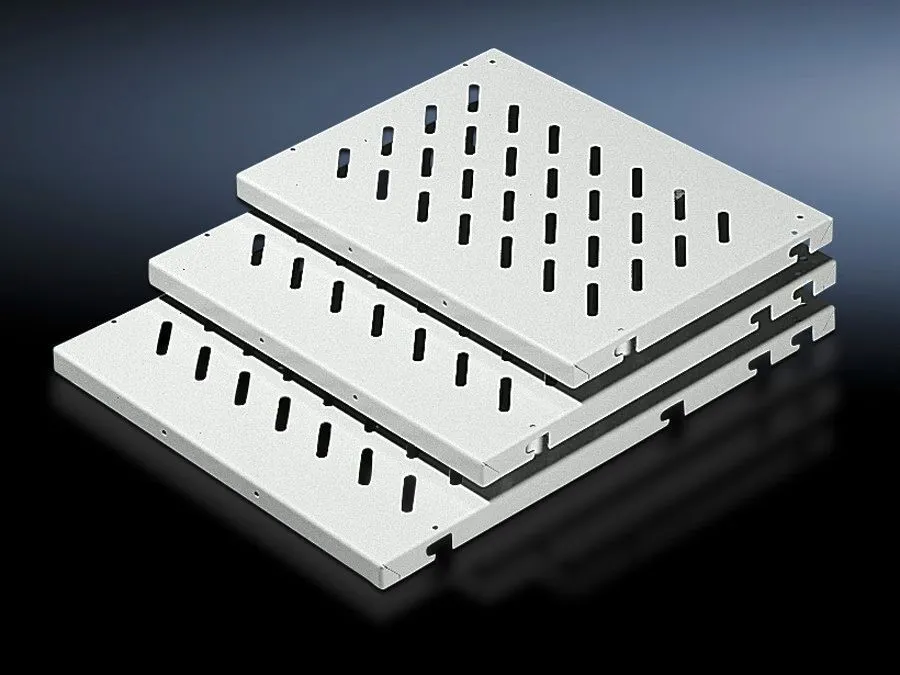

Rittal DK 7185.035 Component Shelf - Slotted, 50 kg capacity
Part Number: 7185035
Manufacturer
Rittal
Part number
7185035
Alt Part Number
DK 7185.035
Quick Summary
Rittal DK 7185.035 Component Shelf is a slotted mounting solution that enables frame attachment inside enclosures lacking 19 inch accommodation. This helps technicians streamline retrofits and upgrades without relocating existing gear. While many cabinets demand extra mounting hardware or inner levels, this shelf supports 25 mm pitch mounting and offers a robust 50 kg area load, aligning with ETIM 7.0 EC002620 and ECLASS 8.0 27189261 classifications. For installers and procurement teams, it translates to faster installs, consistent aesthetics (RAL 7035), and predictable planning in VX, VX IT, and TS IT families—minimizing space waste and simplifying component stocking.
Product Information
Extended Description
7185035 Rittal: DK Component shelf, WHD: 671x29x500 mm, 50 kg, Slotted, For W: 800 mm, RAL 7035
Article number
DK 7185.035
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 4 pc(s). fixing bolts
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
50 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 671 mm | Height: 29 mm | Depth: 500 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 800 mm
Packs of
1 pc(s).
Weight/pack
4.144 kg
PCF per pack (cradle-to-gate)
15.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177165854
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 671x29x500 mm, 50 kg, Slotted, For W: 800 mm, RAL 7035
Feature → Business Impact → Application: The DK 7185.035 uses a slotted design that allows mounting bolts or rails on a 25 mm pitch pattern within the enclosure depth, reducing install time and enabling flexible layout planning for mixed equipment. This translates to faster commissioning in VX and VX IT enclosures and lowers labor costs during upgrades. Application: Ideal for 800 mm wide enclosures where internal space is at a premium, such as control panels in process or factory automation lines. Feature → Business Impact → Application: A 50 kg area load supports typical control modules, drives, and small power supplies, delivering reliable support without reinforcing the cabinet. Application: Suitable for mid-size panels in machine builders and system integrators seeking durable, compliant mounting solutions. Feature → Business Impact → Application: The component shelf is sheet steel, spray-finished in RAL 7035, which yields durable aesthetics and corrosion resistance in harsh environments. Application: Suitable for long-term installations in factory floors and maintenance bays. Feature → Business Impact → Application: Supplied as 1 pack with 4 fixing bolts and designed for static installation on punched sections without mounting flanges, decreasing BOM complexity. Application: Streamlined procurement for new builds or upgrades in VX/TS IT series. Feature → Business Impact → Application: The defined dimensions (671x29x500 mm) and maximum shelf depth rule (enclosure depth minus 100 mm) help designers optimize space, avoid clashes, and ensure clear cable routing. Application: Critical for precise layout planning in compact panels. Feature → Business Impact → Application: PCF 15.8 kg CO2 eq (Cat B) reflects a quantified environmental footprint, enabling sustainability reporting for industrial projects. Application: Useful in green-building or eco-conscious manufacturing programs.
Get a Quick Quote for a Rittal 7185035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7185035?
Enquire Now
FAQs
Install with static mounting using four fixing bolts on a punched section; you will need two punched sections with mounting flanges for the inner mounting level if required. The shelf is designed for 25 mm pitch mounting within the enclosure depth and fits VX, VX IT, and TS IT cabinets with 800 mm width. This simplifies retrofits and reduces downtime.
Yes. The shelf is specified for VX, VX IT, and TS IT enclosure types and is designed to fit 800 mm wide configurations. With dimensions of 671x29x500 mm and a maximum shelf depth defined as enclosure depth minus 100 mm, it integrates cleanly into these families while preserving internal clearance for cabling and components.
The component shelf provides a 50 kg area load capacity, suitable for mounting small to mid-size equipment. Dimensions are 671 mm width, 29 mm height, and 500 mm depth. For installation planning, the maximum component shelf depth is the enclosure depth minus 100 mm, ensuring proper cable management and airflow.
The DK 7185.035 aligns with ETIM 7.0 EC002620 and ECLASS 8.0 27189261. It is finished in RAL 7035 and includes a 4028177165854 EAN. While ETIM and ECLASS provide classification guidance, confirm any regulatory certifications such as CE or IP relevant to your region with Rittal before deployment.
By enabling 25 mm pitch mounting and simplifying installation, labor time is reduced, and cabinet space is used efficiently, lowering project labor costs. The 50 kg rating covers typical control modules, and the spray-finished sheet steel resists wear in industrial environments, reducing replacement frequency. Environmental data like PCF (15.8 kg CO2 eq) supports sustainability reporting for ongoing maintenance planning.
