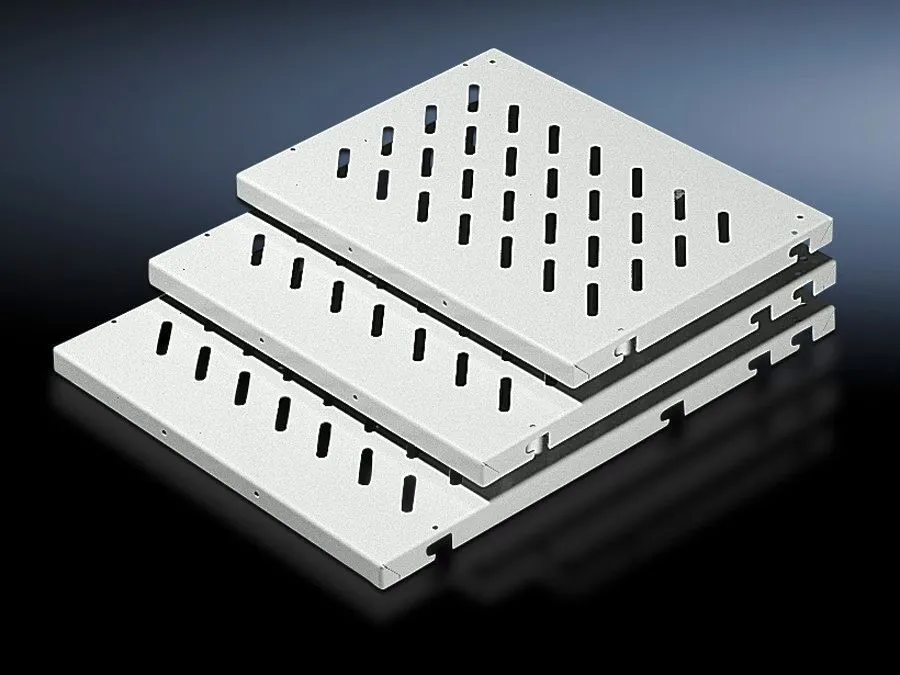

Rittal 7186035 DK Component shelf - Slotted, 50 kg
Part Number: 7186035
Manufacturer
Rittal
Part number
7186035
Alt Part Number
DK 7186.035
Quick Summary
DK Component shelf from Rittal is a versatile mounting solution for frame attachment inside enclosures lacking 19 inch accommodation. This design helps avoid costly enclosure modifications or custom frames by providing a ready-to-fit mounting surface. It aligns with industry data standards such as ETIM EC002620 and ECLASS 27189261, supporting consistent procurement data and interoperability. The product’s static installation option, 50 kg load rating, and its spray-finished sheet steel construction in RAL 7035 deliver reliable performance and long-term value for panel builders and integrators, while reducing installation time. For projects requiring VX, VX IT, or TS IT enclosures with 800 mm widths, this shelf offers predictable fit and straightforward mounting as part of a scalable infrastructure.
Product Information
Extended Description
7186035 Rittal: DK Component shelf, WHD: 671x29x600 mm, 50 kg, Slotted, For W: 800 mm, RAL 7035
Article number
DK 7186.035
Design
Slotted
Product description
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation.
Benefits
Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth.
Applications
For installation in enclosures without 482.6 mm (19") accommodation
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035
Supply includes
Component shelf, slotted | 4 pc(s). fixing bolts
Installation options
Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange
Load capacity
50 kg area load
Assembly instruction
Additionally, two punched sections with mounting flanges are required for the inner mounting level
Note
Max. depth of component shelves = Enclosure depth - 100 mm.
Dimensions
Width: 671 mm | Height: 29 mm | Depth: 600 mm
To fit
Enclosure type: VX | VX IT | TS IT | Width: 800 mm
Packs of
1 pc(s).
Weight/pack
5.047 kg
PCF per pack (cradle-to-gate)
19.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177165861
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Component shelf, WHD: 671x29x600 mm, 50 kg, Slotted, For W: 800 mm, RAL 7035
Feature: Slotted mounting surface with a precise WHD of 671x29x600 mm designed for W 800 mm enclosures. Business Impact: Allows mounting bolts or rails on a 25 mm pitch, reducing setup time and improving shelf stability. Application: Ideal for VX family enclosures lacking standard 19 inch accommodation. Feature: Static installation option with fixing bolts included. Business Impact: Simplifies retrofits and minimizes additional hardware requirements, shortening project timelines. Application: Use with punched sections without mounting flanges for rapid deployment. Feature: Sheet steel, spray-finished surface in RAL 7035. Business Impact: Delivers durable corrosion resistance and consistent appearance in harsh industrial environments. Application: Suitable for high-visibility electrical infrastructure in manufacturing facilities. Feature: Load capacity of 50 kg area load. Business Impact: Supports common controllers, relays, and modular components without overloading enclosure levels. Application: Enables reliable primary mounting inside VX, VX IT, TS IT enclosures. Feature: Complete packaging and clear documentation. Business Impact: Reduces procurement ambiguity with 1 component shelf and 4 fixing bolts included; clear installation notes prevent misassembly. Application: Fits standard factory workflows and supports scalable enclosure configurations.
Get a Quick Quote for a Rittal 7186035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7186035?
Enquire Now
FAQs
The shelf is designed for static installation and ships with four fixing bolts. For inner mounting, two punched sections with mounting flanges are recommended. It fits VX, VX IT, and TS IT enclosures with 800 mm width, enabling a reliable, ready-to-use mounting surface without modifying the enclosure.
The DK 7186035 is specified for 50 kg area load with static installation. For dynamic or vibration-heavy applications, consult Rittal support to assess belt-and-bolt mounting strategies or additional fastening to ensure long-term stability.
This component shelf is intended for VX, VX IT, and TS IT enclosures with an 800 mm width. It provides mounting for frames inside enclosures that do not offer standard 19 inch accommodation, helping standardize installations across the VX family.
The DK 7186035 aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, ensuring consistent data for procurement systems. It also includes PCF data (19.2 kg CO2 eq, Cat B) to support sustainability reporting and lifecycle assessments.
Included: component shelf, slotted configuration, and four fixing bolts. For inner mounting, two punched sections with mounting flanges are required. Installation notes specify static mounting on a punched section without a mounting flange for the main shelf.
