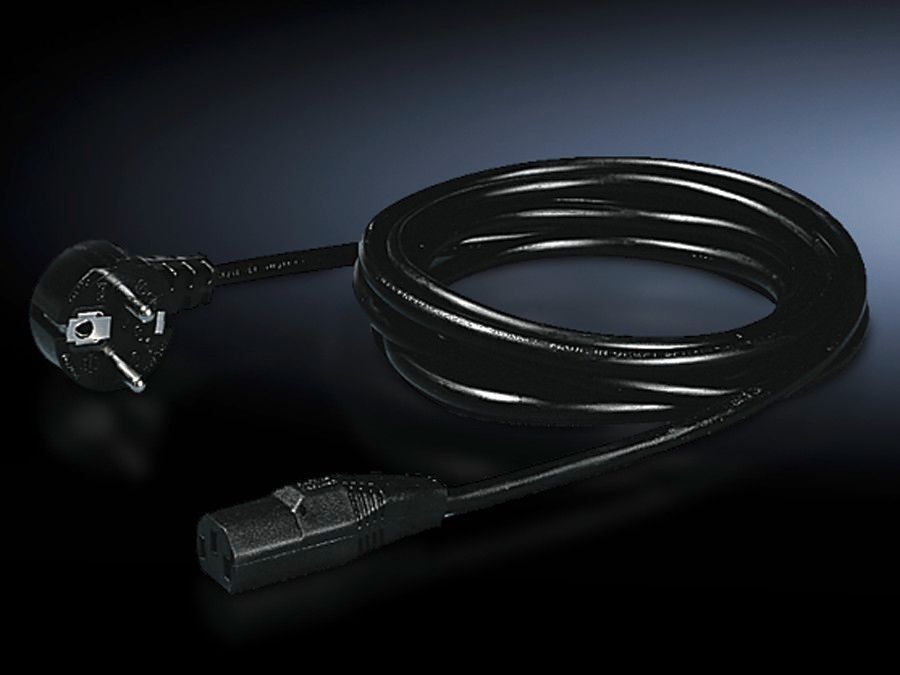

Rittal 7200210 Connection Cable - IEC 320 C13
Part Number: 7200210
Quick Summary
Rittal 7200210 is a connection cable that powers CMC III power packs in European and international mains environments. OEMs often struggle with mismatched connectors or non-standard lengths, causing delays and wiring errors during installation. The cable is backed by CE/conformity declarations and recognized classifications (ETIM EC001576 and ECLASS 27060402) for reliable procurement. This ensures straightforward sourcing and predictable performance in panel cabinets and field installations, a key business value for engineering teams. Designed for cross-border use, the DK 7200.210 supports a 1.8 m PVC line, 1 mm² conductor, 230 V rating, and a C13 outlet, reducing rework and carrying costs. In practice, teams appreciate the preserved compatibility with CMC power packs, straightforward installation in Rittal enclosures, and leverage of existing stock to accelerate project timelines.
Product Information
Extended Description
7200210 Rittal: DK Connection cable, L: 1,8 m, 230 V, Connector: CEE 7/4 (type F), CEE 7/5 (type F), Jack: IEC 320 socket C13, For CMC
Article number
DK 7200.210
Design
Connection cable
Product description
Connection and extension cable with various connector/jack types (earthing-pin/C13/C14/C19/C20). PVC line, 3-pole.
Applications
CMC III power pack
Cross-section
1 mm²
Length of connection cable
1.8 m
Connector (type)
D, earthing-pin (type F, CEE 7/4)
Rated voltage
230 V
Sockets
IEC 320 socket C13
Packs of
1 pc(s).
Weight/pack
0.213 kg
Customs tariff number
85444290
EAN
4028177164314
ETIM 9
EC001576
ECLASS 8.0
27060402
Product description
DK Connection cable, L: 1,8 m, 230 V, Connector: CEE 7/4 (type F), CEE 7/5 (type F), Jack: IEC 320 socket C13, For CMC
Global compatibility with country designs is a core feature of 7200210. The cable uses D earthing-pin (type F, CEE 7/4) and CEE 7/5 (type F) connectors together with an IEC 320 C13 socket, all on a 1.8 m PVC lead rated for 230 V and 3-pole operation. This combination minimizes mis-wiring across regions and accelerates multi-site deployments in CMC III power-pack applications. Standardized length and 1 mm² cross-section enable compact routing within control cabinets, reducing bundle complexity and wiring time for new builds and refurbishments alike. A light 0.213 kg weight per pack and a PVC-insulated, 3-pole design simplify handling during installation and servicing, lowering on-site fatigue and risk. Documentation and compliance assets, including a Declaration of Conformity and ETIM/ECLASS classifications, reduce procurement risk and streamline supplier audits. The design aligns with CMC III power packs and Rittal enclosure systems, delivering reliable performance across regional mains and installation scenarios.
Get a Quick Quote for a Rittal 7200210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7200210?
Enquire Now
FAQs
The DK 7200.210 uses a D earthing-pin (type F, CEE 7/4) connector together with CEE 7/5 (type F) and an IEC 320 C13 socket on a 1.8 m PVC lead. It is specifically designed for CMC III power packs, offering cross-border compatibility and reducing wiring errors during installation in diverse regional setups.
The cable is rated for 230 V with a 1 mm² conductor cross-section and a 3-pole configuration. This makes it suitable for low to mid-power control circuits inside racks and cabinets, providing adequate current capability while enabling compact, organized wiring and easier component replacement.
Yes. The DK 7200.210 is designed for country-design variations, featuring multiple connector options and a C13 socket, enabling universal compatibility with CMC III power packs in European and international installations. The 1.8 m length also supports flexible routing in various enclosure layouts.
The product provides a Declaration of Conformity (DE_EN) and is classified under ETIM 9 EC001576 and ECLASS 8.0 27060402. These attest to product data accuracy and compatibility with standard industry data models, supporting procurement audits and regulatory alignment.
By offering a single, standardized 1.8 m cable with widely recognized connectors (D earthing-pin type F, IEC 320 C13) and 230 V rating, it minimizes mis-wiring and the need for regional adapters. Its 1 pc packaging and straightforward installation speed up field replacements, contributing to lower downtime and lower total cost of ownership.
