Rittal DK 7220.500 Cable Holder - 25 mm Pitch Pattern
Part Number: 7220600
Quick Summary
DK 7220.500 cable holder is designed to fasten at the rear area of the enclosure or at the side of network enclosures. This accessory keeps cabling organized, reducing maintenance time and improving airflow management in stacked or dense installations. While many projects struggle with loose wires and scattered ties, this solution provides a robust mounting option that aligns with standard 25 mm pitch patterns. It relies on a sheet steel build with zinc plating and a RAL 7035 finish, offering durable, consistent appearance in industrial environments. The product aligns with ETIM EC000322 and ECLASS 27400604 classifications, facilitating procurement workflows. In practice, deploying this part can simplify stocking, speed up installation, and enhance long-term reliability for scalable control panels and enclosure systems.
Product Information
Extended Description

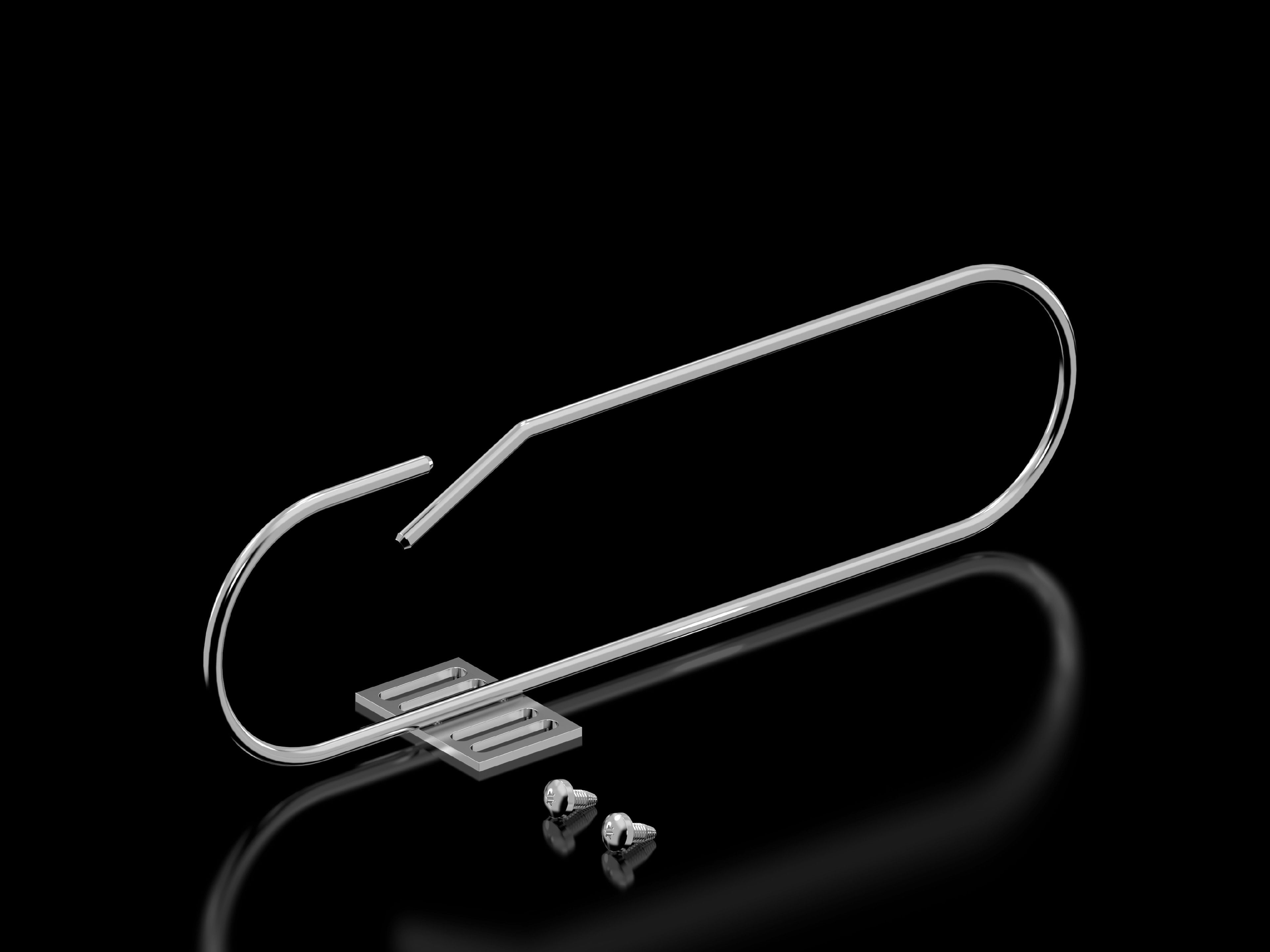

7220600 Rittal: DK Shunting ring
Article number
DK 7220.600
Product description
To accommodate large quantities of cables. Shunting ring for side attachment to 482.6 mm (19") sections and mounting frames in 800 mm wide network enclosures. The ring is attached asymmetrically providing approx. 110 mm free space in front of the 482.6 mm (19") level. This allows even large quantities of cables to be effectively managed.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Dimensions
Height: 90 mm | Depth: 330 mm
Packs of
4 pc(s).
Weight/pack
0.944 kg
PCF per pack (cradle-to-gate)
3.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177305489
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Shunting ring
Feature: 25 mm pitch pattern compatibility. Business Impact: Enables fast, predictable mounting across multiple rails and punched sections, reducing installation time and the risk of misalignment. Application: Ideal for retrofits and new builds in network enclosures where standardized rack spacing is required. Feature: Attachment to depth stays or punched sections and rails. Business Impact: Provides flexible retrofit options and minimizes the need for custom brackets, lowering total cost of ownership. Application: Works with existing Rittal enclosure frameworks to streamline cable management. Feature: Material and finish—sheet steel, zinc-plated, RAL 7035. Business Impact: Delivers corrosion resistance and uniform appearance in factory environments, supporting compliance with visual and environmental standards. Application: Suitable for indoor industrial settings with frequent handling. Feature: Dimensions and weight—WHD 280x151x75 mm; weight 0.869 kg per pack. Business Impact: Compact footprint supports clean rear spaces while maintaining bearing capacity for cables. Application: Fits typical enclosure rear pockets without crowding. Feature: PCF and classifications—PCF 3.3 kg CO2 eq (Cat B); ETIM EC000322; ECLASS 27400604. Business Impact: Supports sustainability reporting and streamlined procurement data, improving lifecycle considerations. Application: Aligns with internal ESG targets and supplier qualification processes.
Get a Quick Quote for a Rittal 7220600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7220600?
Enquire Now
FAQs
The DK 7220.500 is designed for rear mounting or side mounting on network enclosures and can attach to depth stays or punched sections and rails with a 25 mm pitch pattern. Mounting dimension is 150 mm, ensuring alignment with standard enclosure footprints.
By providing a dedicated channel and secure mounting for cables at the rear or side of the enclosure, it reduces wire mess, improves airflow around cables, speeds installation, and lowers maintenance time. The 25 mm pitch compatibility keeps bundles tidy across multiple sections.
Yes. The accessory attaches to existing depth stays or punched sections and rails with a 25 mm pitch, enabling retrofits without custom fabrication. Its compact WHD of 280x151x75 mm fits typical rear spaces while supporting additional cabling as networks grow.
The holder is made from sheet steel and finished zinc-plated in RAL 7035. This combination provides corrosion resistance and a consistent appearance suitable for industrial environments, helping maintain long-term enclosure integrity and easy identification within the system.
The DK 7220.500 carries PCF of 3.3 kg CO2 eq (Cat B) per pack and weighs 0.869 kg per pack. It is classified under ETIM EC000322 and ECLASS 27400604, with GTIN 4028177221659 and Customs tariff 73269098, supporting ESG reporting and streamlined supplier qualification.
