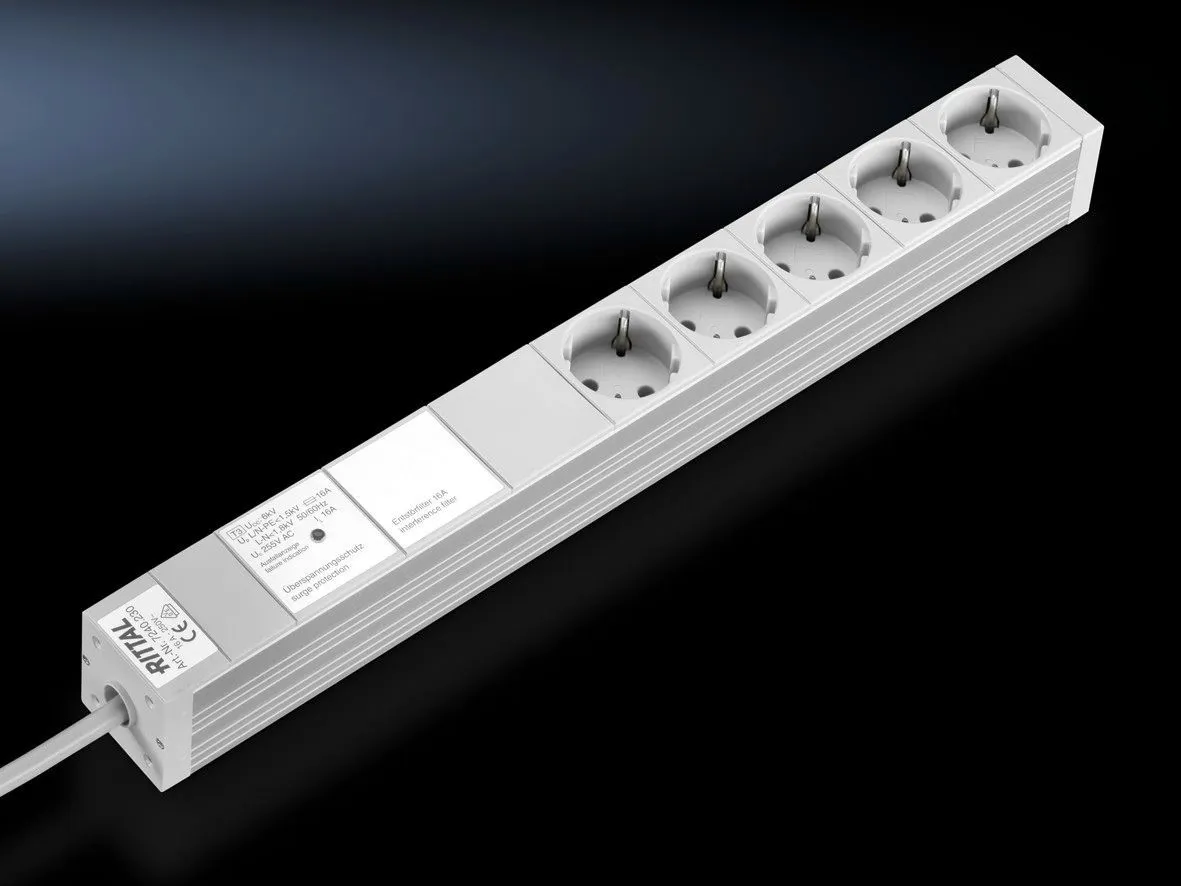

Rittal DK 7240.230 Socket Strip - 5-way 250 V
Part Number: 7240230
Manufacturer
Rittal
Part number
7240230
Category
Alt Part Number
DK 7240.230
Quick Summary
The Rittal DK 7240.230 socket strip provides compact, 5-way power distribution for enclosure installations and control panels. It addresses cramped wiring and limited space by offering universal mounting options, enabling fast, flexible installation across 25 mm pitch patterns and 19-inch mounting frames. This unit complies with DIN 49 440-1 and aligns with ETIM EC000330 and ECLASS 8.0 27142604 standards for consistent procurement. With overvoltage protection and EMI suppression, it safeguards connected loads while delivering reliable, scalable power distribution. By combining modular hardware with safe electrical design, it reduces installation time and maintenance costs, supporting predictable uptime for factory automation and industrial environments.
Product Information
Extended Description
7240230 Rittal: DK Socket strip, with overvoltage protection, earthing-pin (type F, CEE 7/3), 5-way, 250 V, 16 A, LxHxD: 482.6x44x44 mm, connection cable with wire end ferrules, length: 2 m
Article number
DK 7240.230
Design
With overvoltage protection and interference suppression filter
Product description
The socket strips are available in various country-specific variants with different functional elements. Special attention has been devoted to practical, universal fastening: Variable attachment facilities have been created with an angle bracket which may be inserted in four positions. Hence, for example, the 482 mm long socket strips may optionally be mounted on 482.6mm (19") mounting angles, the 482.6 mm (19") mounting frame, on the enclosure frame, or in the rear section of the wall-mounted distributor. Socket strips with a length of more than 482 mm can only be fitted on the enclosure frame. The socket strip may be inserted into all sections with a 25 mm hole pattern, without the need for additional mounting accessories. This makes selection much easier, as well as providing additional flexibility and saving on warehousing. Provision has also been made for cable routing of the infeed, and when mounting in the 482.6 mm (19") section there is adequate space to route the infeed between the socket strip and the profile rail without kinks. The arrangement of the IEC 320 sockets at a 45° angle allows unrestricted use of angular connectors.
Material
Aluminium section, natural anodised | Socket inserts: Polycarbonate
Supply includes
Socket strip | 2 mounting brackets | Assembly parts | Connection cable, without connector, 2 m H05VV- F3G1,5
Design
With overvoltage protection and interference suppression filter
Sockets
5 x D, earthing-pin (type F, CEE 7/3)
Dimensions
Height: 44 mm | Depth: 44 mm | Length: 482.6 mm
Length of connection cable
2 m
Connection cable (type)
H05VV-F3G1.5
Mounting dimensions
452.5 mm
Tolerance of mounting dimensions
± 25 mm
Rated operating voltage
250 V AC, 50 Hz
Rated voltage
250 V AC, 50 Hz
Rated current (max.)
16 A
Type of electrical connection
Wire end ferrules
Installation options
Components with a 25 mm pitch pattern
Note
Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Standards
DIN 49 440-1
Colour of socket
Grey
Packs of
1 pc(s).
Weight/pack
0.95 kg
Customs tariff number
85366990
EAN
4028177221185
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK Socket strip, with overvoltage protection, earthing-pin (type F, CEE 7/3), 5-way, 250 V, 16 A, LxHxD: 482.6x44x44 mm, connection cable with wire end ferrules, length: 2 m
Feature: The socket strip integrates overvoltage protection and an interference suppression filter, reducing the risk of damage from surges and electromagnetic noise. Business Impact: enhances equipment reliability and lowers maintenance costs by minimizing nuisance trips and unexpected shutdowns. Application: ideal for control panels and industrial cabinets where multiple devices share a single supply. Feature: Flexible mounting options with four-position angle brackets and a 482.6 mm length, plus 25 mm pitch. Business Impact: reduces install time, accelerates commissioning, and lowers warehousing needs through adaptable positioning. Application: suitable for enclosure frames, rear sections of wall-mounted distributors, or 19-inch mounting angles. Feature: Five sockets with earthing-pin type F (CEE 7/3) rated at 250 V AC, 16 A, combined with a 2 m H05VV-F3G1.5 connection cable. Business Impact: ensures reliable, safe connectivity with ample headroom for startup surges; Application: panel power distribution with plug-and-play wiring. Feature: Durable aluminium section with natural anodising and polycarbonate socket inserts; plus 45° IEC sockets for easier connector access. Business Impact: improves long-term reliability in harsh environments and supports easy maintenance; Application: industrial power rails and modular distribution in rugged settings. Feature: DIN 49 440-1 compliance and supplier data alignment through ETIM and ECLASS references; Business Impact: simplifies sourcing, improves interoperability, and reduces procurement risk. Application: standardised parts usage in engineering BOMs and MRO planning.
Get a Quick Quote for a Rittal 7240230
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7240230?
Enquire Now
FAQs
The DK socket strip supports mounting on enclosure frames, four-position angle brackets, and 19-inch mounting angles, with a 482.6 mm length and 25 mm pitch. This versatility enables quick relocation or reconfiguration of power distribution within control panels or industrial cabinets, reducing downtime during modification or expansion projects.
It provides 5 x D sockets with earthing-pin type F, rated for 250 V AC at 50 Hz and up to 16 A per channel. The unit ships with a 2 m H05VV-F3G1.5 connection cable and includes overvoltage protection plus an EMI suppression filter to safeguard connected devices and improve EMC performance.
Yes. The 482.6 mm length is designed for 19" mounting frameworks and enclosure frames. The system supports optional mounting frames or angles, plus rear-section integration in wall-mounted distributors, enabling flexible deployment within standard industrial enclosures.
The product references DIN 49 440-1 for electrical and mounting standards, with data alignment in ETIM 9 EC000330 and ECLASS 8.0 27142604. While not listing SIL or IP ratings, these standards support consistent procurement and interoperability in European automation environments.
By reducing wiring complexity and enabling modular mounting, maintenance becomes easier and faster, lowering labor costs during modifications. Overvoltage protection and EMI filtering decrease unexpected failures, contributing to higher uptime and a favorable return on investment in medium to large-scale panel installations.
