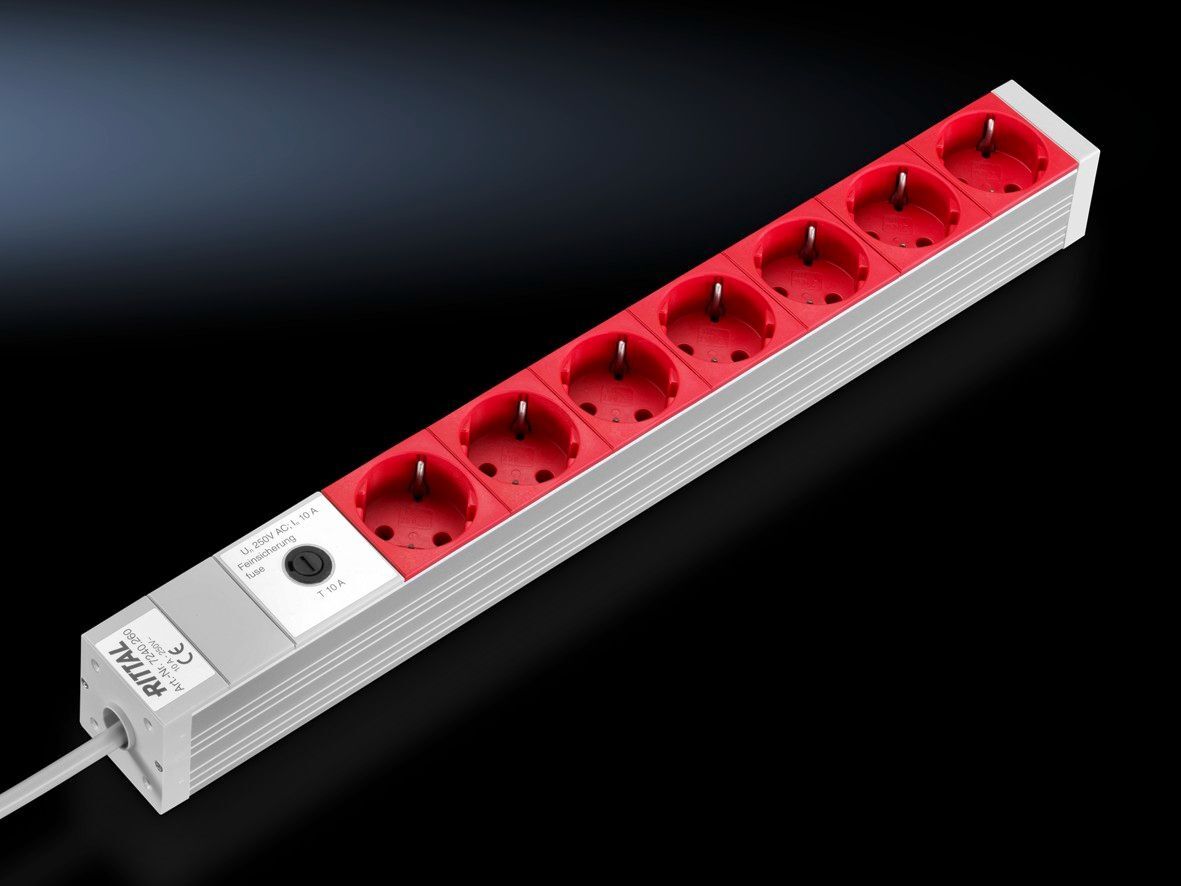

Rittal 7240260 Socket Strip - DK 7-way DIN 49 440-1
Part Number: 7240260
Manufacturer
Rittal
Part number
7240260
Category
Alt Part Number
DK 7240.260
Quick Summary
Socket strip DK 7240.260 from Rittal delivers distributed power for control panels and industrial enclosures. This design addresses the common challenge of flexible, space-efficient mounting in tight cabinet environments by offering multiple 25 mm pitch installation options and easy cable routing. In line with industry expectations, the product aligns with stringent standards to support safe operation in demanding applications. For system integrators and procurement teams, this solution translates to reduced warehousing complexity and faster panel assembly, while maintaining robust electrical performance with a 250 V AC, 50 Hz supply and 10 A rated current. The combination of high-quality aluminium construction and universal fastening makes this a versatile, future-proof component for power management and distribution.
Product Information
Extended Description
7240260 Rittal: DK Socket strip, CEE 7/3 (type F), 7-way, 250 V, 10 A, LHD: 482,6x44x44 mm, UPS strip, connection cable: 10 A, IEC 320 connector type E, with 10 A G-fuse
Article number
DK 7240.260
Design
Without switch
Product description
The socket strips are available in various country-specific variants with different functional elements. Special attention has been devoted to practical, universal fastening: Variable attachment facilities have been created with an angle bracket which may be inserted in four positions. Hence, for example, the 482 mm long socket strips may optionally be mounted on 482.6mm (19") mounting angles, the 482.6 mm (19") mounting frame, on the enclosure frame, or in the rear section of the wall-mounted distributor. Socket strips with a length of more than 482 mm can only be fitted on the enclosure frame. The socket strip may be inserted into all sections with a 25 mm hole pattern, without the need for additional mounting accessories. This makes selection much easier, as well as providing additional flexibility and saving on warehousing. Provision has also been made for cable routing of the infeed, and when mounting in the 482.6 mm (19") section there is adequate space to route the infeed between the socket strip and the profile rail without kinks. The arrangement of the IEC 320 sockets at a 45° angle allows unrestricted use of angular connectors.
Material
Aluminium section, natural anodised | Socket inserts: Polycarbonate
Supply includes
Socket strip | 2 mounting brackets | Assembly parts | Connection cable, with connector, 2 m, H05VV-F3G1,5
Design
UPS strip, connection cable with 10 A IEC 320 connector, type E, with G fuse, 10 A
Sockets
7 x D, earthing-pin (type F, CEE 7/3)
Dimensions
Height: 44 mm | Depth: 44 mm | Length: 482.6 mm
Length of connection cable
2 m
Connection cable (type)
H05VV-F3G1.0
Mounting dimensions
452.5 mm
Tolerance of mounting dimensions
± 25 mm
Rated operating voltage
250 V AC, 50 Hz
Rated voltage
250 V AC, 50 Hz
Rated current (max.)
10 A
Type of electrical connection
IEC 60320: C14
Installation options
Components with a 25 mm pitch pattern
Note
Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Standards
DIN 49 440-1
Colour of socket
Red
Packs of
1 pc(s).
Weight/pack
0.868 kg
Customs tariff number
85366990
EAN
4028177221215
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK Socket strip, CEE 7/3 (type F), 7-way, 250 V, 10 A, LHD: 482,6x44x44 mm, UPS strip, connection cable: 10 A, IEC 320 connector type E, with 10 A G-fuse
Feature → Business Impact → Application: The socket strip features an aluminium natural anodised section with polycarbonate sockets, delivering a durable footprint that supports long-term reliability in harsh environments, reducing maintenance and replacement costs. This translates to measurable uptime improvements in manufacturing lines and data centers requiring dependable power distribution. Application: Control panels and enclosure frames where a 482.6 mm length and 4-position angle bracket mounting provide flexible integration across 19" racking and wall-mounted distributors. Feature → Business Impact → Application: The 7 × D (CEE 7/3) sockets with a 45° orientation enable unrestricted use of angular connectors, simplifying cabling layouts and minimizing connector strain in compact enclosures. Application: Industrial automation cabinets that demand neat, scalable wiring schemes. Feature → Business Impact → Application: The 2 m H05VV-F3G1.0 connection cable and IEC 60320 C14 type E inlet with 10 A G fuse deliver plug-and-play safety and quick commissioning, reducing installation time and field wiring errors. Application: UPS strips and distribution nodes that require fast, safe connection to mains. Feature → Business Impact → Application: Variable attachment facilities support mounting on enclosure frames, rear sections of wall-mounted distributors, or 482 mm framed sections, enabling flexible deployment without extra accessories. Application: New-build or retrofit projects seeking modular power distribution that adapts to evolving panel layouts. Feature → Business Impact → Application: Comprehensive packaging includes mounting brackets and assembly parts, ensuring immediate installation readiness and minimizing part tracking in the warehouse. Application: Routine installations across multiple sites with consistent hardware inclusion.
Get a Quick Quote for a Rittal 7240260
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7240260?
Enquire Now
FAQs
The DK 7240.260 offers variable attachment with an angle bracket insertable in four positions, allowing mounting on 19" mounting angles, 19" mounting frames, enclosure frames, or in rear wall-distributor sections. This enables rapid adaptation to different cabinet designs without additional hardware, improving installation speed and reducing stock diversity.
This socket strip is rated for 250 V AC at 50 Hz and a maximum current of 10 A. It includes seven CEE 7/3 (type F) sockets, a 2 m H05VV-F3G1.0 connection cable, IEC 60320 C14 inlet (type E), and a 10 A protective fuse to support safe operation within standard enclosure power distribution requirements.
Yes. The design supports mounting on enclosure frames and is compatible with 482.6 mm (19") sections. In longer variants, mounting on the enclosure frame is preferred, while shorter variants offer flexible placement with the built-in four-position angle brackets. This ensures seamless integration into existing 19" racks and wall-mounted distributors.
The supply includes the socket strip itself, two mounting brackets, assembly parts, and a 2 m connection cable (H05VV-F3G1.0) with a C14 inlet and a 10 A G fuse. Additional hardware is not required for standard installations, enabling faster deployment and reducing the risk of missing components during installation.
A charging current reserve is recommended to prevent incorrect activation from starting-current spikes. This guidance helps ensure reliable startup of connected loads, particularly for units with embedded UPS functionality or when multiple sockets are energised simultaneously. Plan the power distribution layout to provide adequate headroom for startup currents in critical applications.
