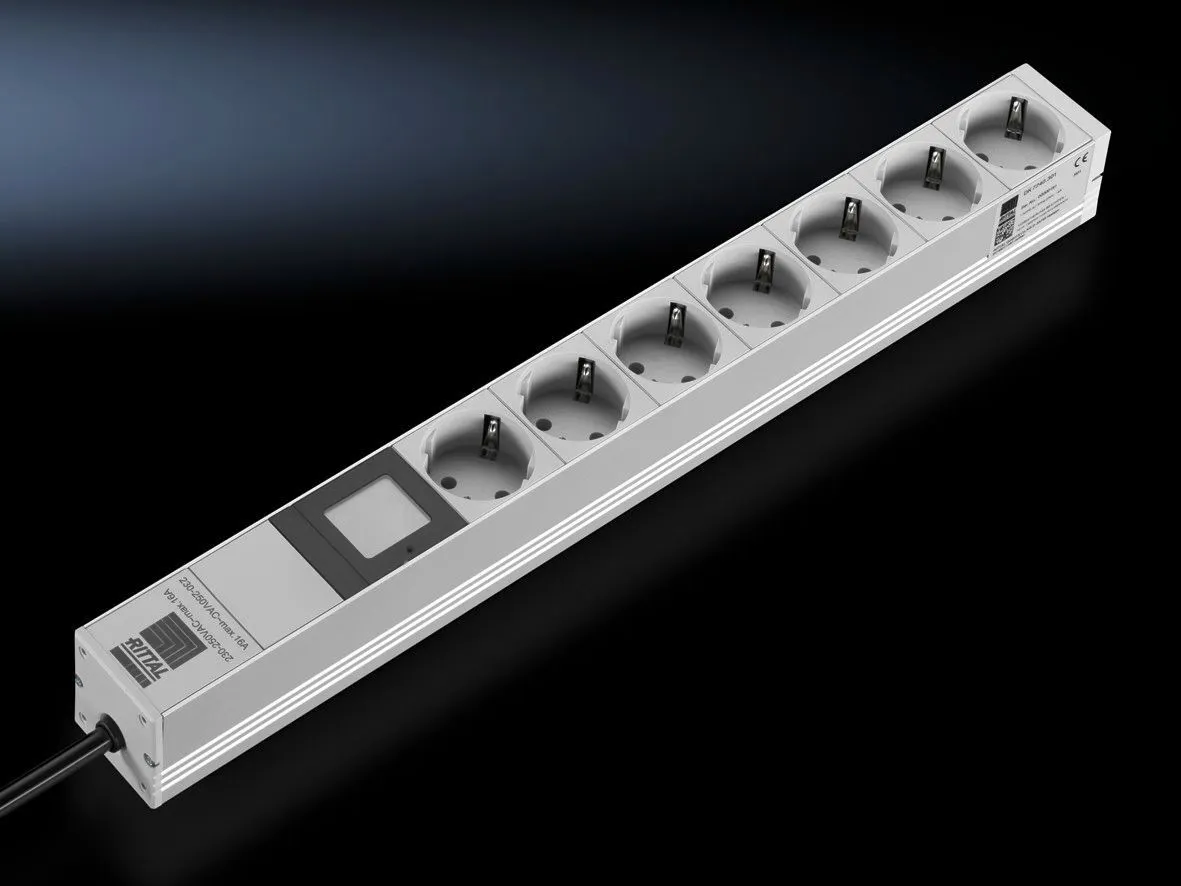

Rittal DK 7240.301 Socket Strip - 7-Way with Display
Part Number: 7240301
Manufacturer
Rittal
Part number
7240301
Category
Alt Part Number
DK 7240.301
Quick Summary
Rittal DK 7240.301 socket strip measures the power consumption of connected equipment in 230 V systems, featuring a 7-way CEE 7/3 (type F) configuration with an integrated display. It supports flexible installation: 19-inch mounting frame, enclosure frame, or rear-section mounting, with four bracket positions and compatibility with 25 mm hole patterns. This addresses common pain points of space constraints and unreliable metering during commissioning. CE certified, it operates at 230 V AC, up to 16 A, and within a 5 °C to 45 °C range with 10–80% non-condensing humidity. The device delivers real-time energy data including current, voltage, frequency, active power, energy, and phase shift, enabling precise monitoring, cost control, and informed load balancing across distributed enclosures.
Product Information
Extended Description
7240301 Rittal: DK Socket strip, CEE 7/3 (type F), 7-way, 230 V (AC), 16 A, LHD: 482,6x45x50 mm, with display
Article number
DK 7240.301
Product description
The socket strip 7x CEE 7/3 (type F - earthing-pin socket) with integrated display measures the power consumed by the connected equipment. The 482.6 mm (19") long socket strip may optionally be mounted on the 482.6 mm (19") mounting frame, on the enclosure frame or in the rear section of wall-mounted distributors. The installation bracket may be mounted in four different positions for variable mounting. Without additional mounting accessories, the socket strip may be inserted into all sections with a 25 mm hole pattern.
Benefits
Measurement accuracy of ± 5%
Function principle
Measurement of current, voltage, frequency, active power, active energy and phase shift
Material
Aluminium section, natural anodised | Socket inserts: Polycarbonate
Supply includes
Socket strip | 2 mounting brackets | Assembly parts | Operating manual | With 3 m connection cable (wire end ferrules)
Design
Mit Display
Sockets
7 x D, earthing-pin (type F, CEE 7/3)
Dimensions
Height: 45 mm | Depth: 50 mm | Length: 482.6 mm
Length of connection cable
3 m
Connection cable (type)
H05VV-F3G1.5 with wire end ferrules
Mounting dimensions
464.1 mm
Rated operating voltage
230 V AC, 50 Hz
Rated voltage
230 V AC, 50 Hz
Rated current (max.)
16 A
Installation options
Components with a 25 mm pitch pattern
Colour of socket
RAL 7035
Operating temperature range
5 °C...45 °C
Relative humidity (non-condensing)
10 %...80 %
Storage temperature range
-15 °C...60 °C
Packs of
1 pc(s).
Weight/pack
1.08 kg
Customs tariff number
85366990
EAN
4028177709416
ETIM 7.0
EC000330
ECLASS 8.0
27142604
Product description
DK Socket strip, CEE 7/3 (type F), 7-way, 230 V (AC), 16 A, LHD: 482,6x45x50 mm, with display
Feature: Integrated display and energy measurement that captures current, voltage, frequency, active power, energy and phase shift. Business Impact: Real-time visibility into power usage enables accurate energy management and faster fault detection. Application: Ideal for enclosure power distribution in manufacturing lines, bringing transparency to consumption and supporting cost reduction. Feature: 7 outlets with CEE 7/3 (type F) earthing-pin sockets rated at 16 A. Business Impact: Standard European interface reduces wiring complexity and simplifies replacement in European facilities. Application: End-user compatibility for European 230 V networks in control panels and distribution boards. Feature: Flexible mounting options with four positions and compatibility with 25 mm pitch patterns. Business Impact: Quick, tool-free integration into 19" frames, enclosure frames, or rear-wall layouts. Application: Space-constrained installations in compact industrial cabinets and wall-distributed systems. Feature: 3 m connection cable (H05VV-F3G1.5) with wire-end ferrules and inclusive mounting parts. Business Impact: Accelerated installation and reliable field connections, reducing commissioning time and wiring errors. Application: Prefabricated power strips in new builds or retrofit projects. Feature: Robust materials and environmental specs (aluminium anodised body, polycarbonate sockets; 5 °C to 45 °C, 10–80% RH). Business Impact: Durable performance in standard industrial environments, minimizing maintenance and downtime. Application: Enclosures in manufacturing floors, warehouses, and automated lines. Feature: Certifications and standards alignment (CE compliant; ETIM EC000330; ECLASS 27142604). Business Impact: Streamlined procurement and compliance with industry data standards for MRO and system integrators. Application: Suitable for compliant European installations and ERP-driven procurement processes.
Get a Quick Quote for a Rittal 7240301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7240301?
Enquire Now
FAQs
The DK 7240.301 is designed for flexible mounting in 19-inch frames, enclosure frames, or rear sections. Use the four mounting bracket positions to align with a 25 mm pitch pattern, then secure the unit with the provided assembly parts. The 3 m connection cable can reach power sources without excessive bending, reducing field wiring time and errors.
This model measures current, voltage, frequency, active power, energy, and phase shift, offering measurement accuracy of ±5%. The integrated display presents real-time data for quick assessment of load conditions, enabling efficient energy management and optimization of distribution across enclosures.
Yes. The socket strip uses 7 x CEE 7/3 (type F) outlets, operates at 230 V AC, 50 Hz, and is designed for European power infrastructure. It supports safe distribution within enclosure cabinets, with a 16 A rating suitable for common industrial loads.
The DK 7240.301 is CE certified, aligning with European safety and electrical standards. It also aligns with ETIM 7.0 EC000330 and ECLASS 8.0 27142604 data standards, facilitating procurement and system integration processes.
The unit provides precise energy metering, enabling better load balancing and energy cost control, which can reduce waste and downtime in distributed enclosures. With robust materials and a 5 °C to 45 °C operating range, maintenance is typically low, limited to routine inspections and cable integrity checks during scheduled preventive maintenance.
