Rittal 7240.330 Socket strip - Overvoltage protection
Part Number: 7240330
Manufacturer
Rittal
Part number
7240330
Category
Alt Part Number
DK 7240.330
Quick Summary
Socket strip DK 7240.330 from Rittal delivers a compact, 9‑way power distribution module for control panels and wall-mounted distributors. Engineers often struggle with flexible mounting and clean cable routing in tight enclosures; this solution addresses those pains with four-position adjustable mounting brackets and 25 mm mounting pitch for versatile installation. It complies with DIN 49 440-1 and aligns with widely used classifications such as ETIM EC000330 and ECLASS 27142604, helping engineers and buyers specify and source accurately. Designed to simplify wiring, enable quick swaps, and support modular enclosure layouts, it also supports efficient warehouse handling and standardized procurement alongside existing power management strategies.
Product Information
Extended Description

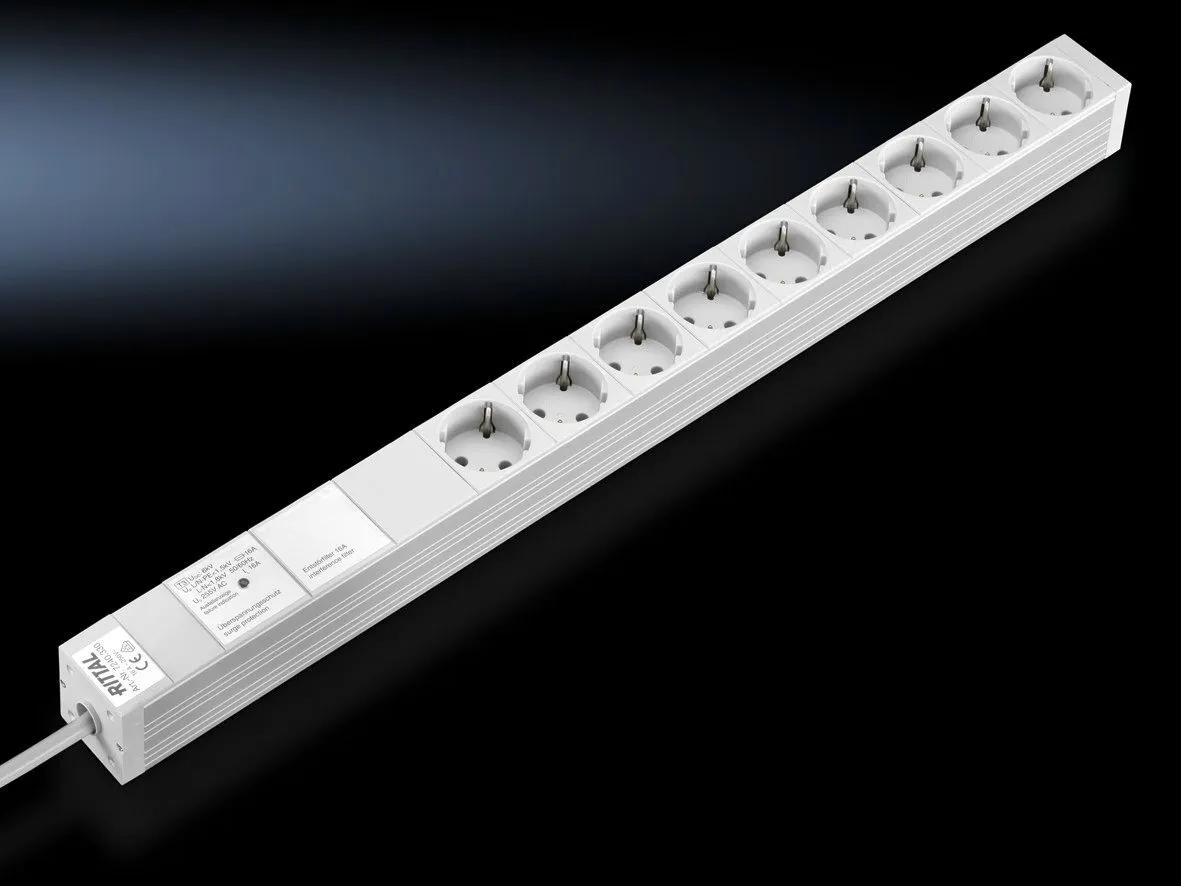

7240330 Rittal: DK Socket strip, with overvoltage protection, earthing-pin (type F, CEE 7/3), 9-way, 250 V, 16 A, LxHxD: 658.6x44x44 mm, connection cable with wire end ferrules, length: 2 m
Article number
DK 7240.330
Design
With overvoltage protection and interference suppression filter
Product description
The socket strips are available in various country-specific variants with different functional elements. Special attention has been devoted to practical, universal fastening: Variable attachment facilities have been created with an angle bracket which may be inserted in four positions. Hence, for example, the 482 mm long socket strips may optionally be mounted on 482.6mm (19") mounting angles, the 482.6 mm (19") mounting frame, on the enclosure frame, or in the rear section of the wall-mounted distributor. Socket strips with a length of more than 482 mm can only be fitted on the enclosure frame. The socket strip may be inserted into all sections with a 25 mm hole pattern, without the need for additional mounting accessories. This makes selection much easier, as well as providing additional flexibility and saving on warehousing. Provision has also been made for cable routing of the infeed, and when mounting in the 482.6 mm (19") section there is adequate space to route the infeed between the socket strip and the profile rail without kinks. The arrangement of the IEC 320 sockets at a 45° angle allows unrestricted use of angular connectors.
Material
Aluminium section, natural anodised | Socket inserts: Polycarbonate
Supply includes
Socket strip | 2 mounting brackets | Assembly parts | Connection cable, without connector, 2 m H05VV- F3G1,5
Design
With overvoltage protection and interference suppression filter
Sockets
9 x D, earthing-pin (type F, CEE 7/3)
Dimensions
Height: 44 mm | Depth: 44 mm | Length: 658.6 mm
Length of connection cable
2 m
Connection cable (type)
H05VV-F3G1.5
Mounting dimensions
628.5 mm
Tolerance of mounting dimensions
± 25 mm
Rated operating voltage
250 V AC, 50 Hz
Rated voltage
250 V AC, 50 Hz
Rated current (max.)
16 A
Type of electrical connection
Wire end ferrules
Installation options
Components with a 25 mm pitch pattern
Note
Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Standards
DIN 49 440-1
Colour of socket
Grey
Packs of
1 pc(s).
Weight/pack
1.2 kg
Customs tariff number
85366990
EAN
4028177221246
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK Socket strip, with overvoltage protection, earthing-pin (type F, CEE 7/3), 9-way, 250 V, 16 A, LxHxD: 658.6x44x44 mm, connection cable with wire end ferrules, length: 2 m
Feature → Business Impact → Application: The socket strip integrates overvoltage protection and an interference suppression filter, reducing risk of equipment damage and minimizing downtime in electrical installations. This protection translates into improved system reliability for automated machinery and production lines, particularly in environments with variable supply conditions. Application-wise, the 9‑way IEC 320 sockets with earthing-pin (type F, CEE 7/3) provide a robust, easy-to-wire power distribution solution for control panels and switchgear housings. Feature → Business Impact → Application: Aluminium section with natural anodising and polycarbonate socket inserts deliver a durable, lightweight chassis and durable interfaces ideal for harsh industrial environments. This supports long service life and lower maintenance costs when deployed in 482 mm (19”) sections and enclosure frames. Feature → Business Impact → Application: Flexible mounting options, including four-position angle brackets and compatibility with 482.6 mm (19”) mounting angles or frames, decrease install time and reduce inventory complexity, enabling rapid deployment in modular enclosures. Feature → Business Impact → Application: A 2 m H05VV-F3G1.5 connection cable with wire end ferrules simplifies field wiring and reduces the risk of connection errors, delivering faster commissioning and greater reliability in panel builds. Feature → Business Impact → Application: 25 mm pitch pattern installation and a 658.6 mm length enable scalable distribution along enclosure frames, allowing incremental expansion without rework and supporting future PCI or I/O expansion plans. Feature → Business Impact → Application: The product’s material composition, weight, and packaging (1.2 kg per pack) balance robustness and logistics, supporting efficient warehouse handling and straightforward stock management for procurement teams.
Get a Quick Quote for a Rittal 7240330
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7240330?
Enquire Now
FAQs
The DK 7240.330 supports four-position angle brackets and can be mounted in 482.6 mm (19 inch) frames or enclosure frames. It fits into 25 mm hole patterns and allows routing of the infeed between the strip and the profile rail. Longer strips (> 482 mm) must be mounted on the enclosure frame for stability and accessibility.
Overvoltage protection mitigates voltage spikes that can damage sockets and connected devices, reducing unplanned downtime and extending the life of power distribution components. Combined with EMI suppression, it helps maintain consistent performance in industrial environments and supports safer, more reliable control panel operation.
Yes. The socket strip is designed for 19-inch (482.6 mm) mounting, using dedicated 19-inch angles or frames. For lengths beyond 482 mm, mounting is limited to the enclosure frame to ensure structural integrity and proper cable routing in rack environments.
The strip provides 9 sockets (D-type) with earthing-pin F, CEE 7/3, rated for 250 V AC, 50 Hz and up to 16 A. It includes overvoltage protection and a dedicated interference suppression filter, and it uses a 2 m H05VV-F3G1.5 connection cable with wire end ferrules for secure field connections.
The unit ships with 2 mounting brackets and assembly parts, enabling rapid installation. Its 25 mm pitch pattern and flexible mounting options reduce warehousing diversity and simplify replacement planning. The aluminium frame and polycarbonate sockets deliver durable performance, while the included 2 m cable aids quick commissioning in new builds or retrofits.
