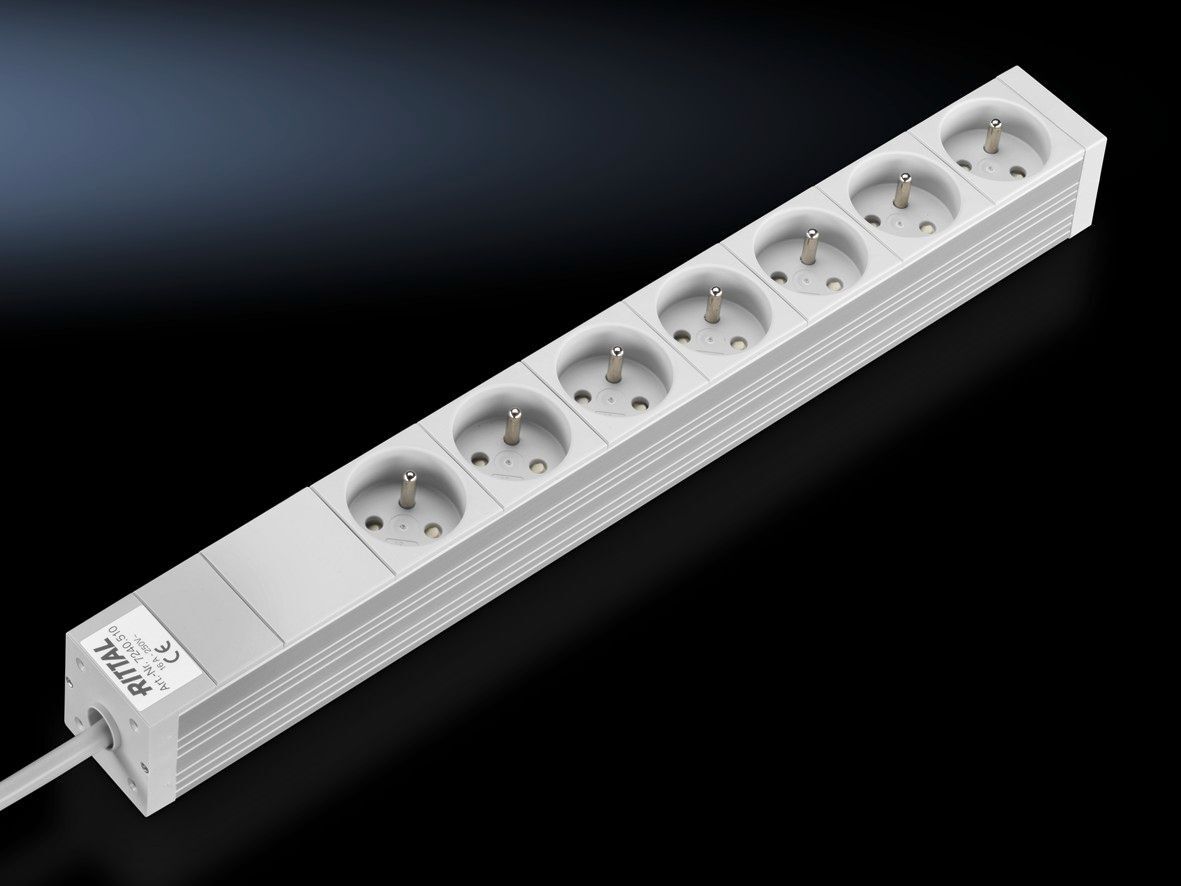

Rittal 7240.510 Socket strip - DIN VDE 0620-1
Part Number: 7240510
Manufacturer
Rittal
Part number
7240510
Category
Alt Part Number
DK 7240.510
Quick Summary
Socket strip from Rittal enables modular IEC socket mounting inside standard 19-inch enclosures. Too often, engineers face rigid fastening, inaccessible cabling, and limited mounting options that slow deployment. This DK socket strip is DIN VDE 0620-1 compliant and aligned with ETIM EC000330 and ECLASS 27142604 for streamlined data integration. Its design offers four-position adjustable mounting brackets and multiple 25 mm pitch options, enabling flexible installation in enclosures, frames, or rear sections. With a 2 m supply cable and a 482.6 mm length, it supports tidy routing and reduces installation time. The 7 sockets use CEE 7/5 variants with wire-end ferrules, designed for safe, compliant operation at up to 250 V AC and 16 A. Overall, it reduces warehousing complexity and supports scalable expansion in growing control panel ecosystems.
Product Information
Extended Description
7240510 Rittal: DK Socket strip, CEE 7/5 (type E), 7-way, 250 V, 16 A, LHD: 482,6x44x44 mm, Without switch
Article number
DK 7240.510
Design
Without switch
Product description
The socket strips are available in various country-specific variants with different functional elements. Special attention has been devoted to practical, universal fastening: Variable attachment facilities have been created with an angle bracket which may be inserted in four positions. Hence, for example, the 482 mm long socket strips may optionally be mounted on 482.6mm (19") mounting angles, the 482.6 mm (19") mounting frame, on the enclosure frame, or in the rear section of the wall-mounted distributor. Socket strips with a length of more than 482 mm can only be fitted on the enclosure frame. The socket strip may be inserted into all sections with a 25 mm hole pattern, without the need for additional mounting accessories. This makes selection much easier, as well as providing additional flexibility and saving on warehousing. Provision has also been made for cable routing of the infeed, and when mounting in the 482.6 mm (19") section there is adequate space to route the infeed between the socket strip and the profile rail without kinks. The arrangement of the IEC 320 sockets at a 45° angle allows unrestricted use of angular connectors.
Material
Aluminium section, natural anodised | Socket inserts: Polycarbonate
Supply includes
Socket strip | 2 mounting brackets | Assembly parts | Connection cable, without connector, 2 m H05VV- F3G1,5
Design
Without switch
Sockets
7 x F/B (type E, CEE 7/5)
Dimensions
Height: 44 mm | Depth: 44 mm | Length: 482.6 mm
Length of connection cable
2 m
Connection cable (type)
H05VV-F3G1.5
Mounting dimensions
452.5 mm
Tolerance of mounting dimensions
± 25 mm
Rated operating voltage
250 V AC, 50 Hz
Rated voltage
250 V AC, 50 Hz
Rated current (max.)
16 A
Type of electrical connection
Wire end ferrules
Installation options
Components with a 25 mm pitch pattern
Note
Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Standards
Sockets: DIN VDE 0620-1
Colour of socket
Grey
Packs of
1 pc(s).
Weight/pack
0.84 kg
Customs tariff number
85366990
EAN
4028177237575
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK Socket strip, CEE 7/5 (type E), 7-way, 250 V, 16 A, LHD: 482,6x44x44 mm, Without switch
Feature: Universal mounting with four-position brackets and four 25 mm pitch options. Business impact: Enables rapid relocation during project changes and reduces stocking variants, cutting lead times and warehousing costs. Application: Ideal for 19-inch enclosures, enclosure frames, and rear wall distributors, where flexibility and speed matter. Feature: Seven IEC sockets (CE 7/5 type E) arranged with a 45-degree orientation. Business impact: Improves access to angular connectors and minimizes cable strain, enhancing safety and maintaining compliance. Application: Common in tight control panels and energy-distribution cabinets where space is at a premium. Feature: 482.6 mm length and 2 m H05VV-F3G1.5 supply cable with wire-end ferrules. Business impact: Streamlines in-field wiring and reduces the need for extra adapters, lowering installation time and material cost. Application: Suitable for wall-mounted distributors and modular frame systems. Feature: Aluminium section with natural anodising and polycarbonate socket inserts. Business impact: Delivers robust, corrosion-resistant housing and durable contacts, improving long-term reliability. Application: Harsh or demanding environments within automation cabinets. Feature: Compatible with DIN VDE 0620-1 standards and supports 25 mm hole patterns. Business impact: Ensures regulatory compliance and straightforward integration with existing DIN rail and mounting infrastructure. Application: Broad applicability across European control panels and industrial fixtures. Feature: No integrated switch. Business impact: Reduces complexity and maintenance points, lowering lifecycle costs for simple power distribution tasks. Application: Suitable for dedicated power distribution nodes where switching is managed upstream.
Get a Quick Quote for a Rittal 7240510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7240510?
Enquire Now
FAQs
The DK 7240.510 is designed for 19-inch mounting with four-position angle brackets and 25 mm pitch compatibility. Install by choosing the appropriate mounting frame or enclosure frame, route the 2 m H05VV-F3G1.5 cable neatly, and connect the 7 CEE 7/5 sockets while ensuring a clean 25 mm hole pattern fit for secure, vibration-free operation.
The strip features seven CEE 7/5 (type E) sockets, rated for 250 V AC at up to 16 A. It uses a 2 m H05VV-F3G1.5 connection cable with wire-end ferrules and conforms to DIN VDE 0620-1 standards, ensuring safe, compliant power distribution within industrial control panels.
Best suited for 19-inch enclosures, enclosure frames, and rear wall distributors in automation cabinets. Its 482.6 mm length, 44x44 mm cross-section, and 25 mm pitch pattern support modular, scalable power distribution in factory floors, machines, and energy distribution cabinets while preserving space and cleanup efficiency.
This DK socket strip adheres to DIN VDE 0620-1 for sockets, and is cross-referenced with ETIM 9 EC000330 and ECLASS 8.0 27142604. These classifications assist with data management and procurement processes, while maintaining compliance essential for European industrial installations.
Modular mounting and universal attachment reduce installation time and spare-part diversity, lowering labor costs and inventory. With durable aluminium framing, polycarbonate socket inserts, and no switch, maintenance is simplified while offering scalable expansion for growing control systems, resulting in lower total cost of ownership over the equipment lifecycle.
