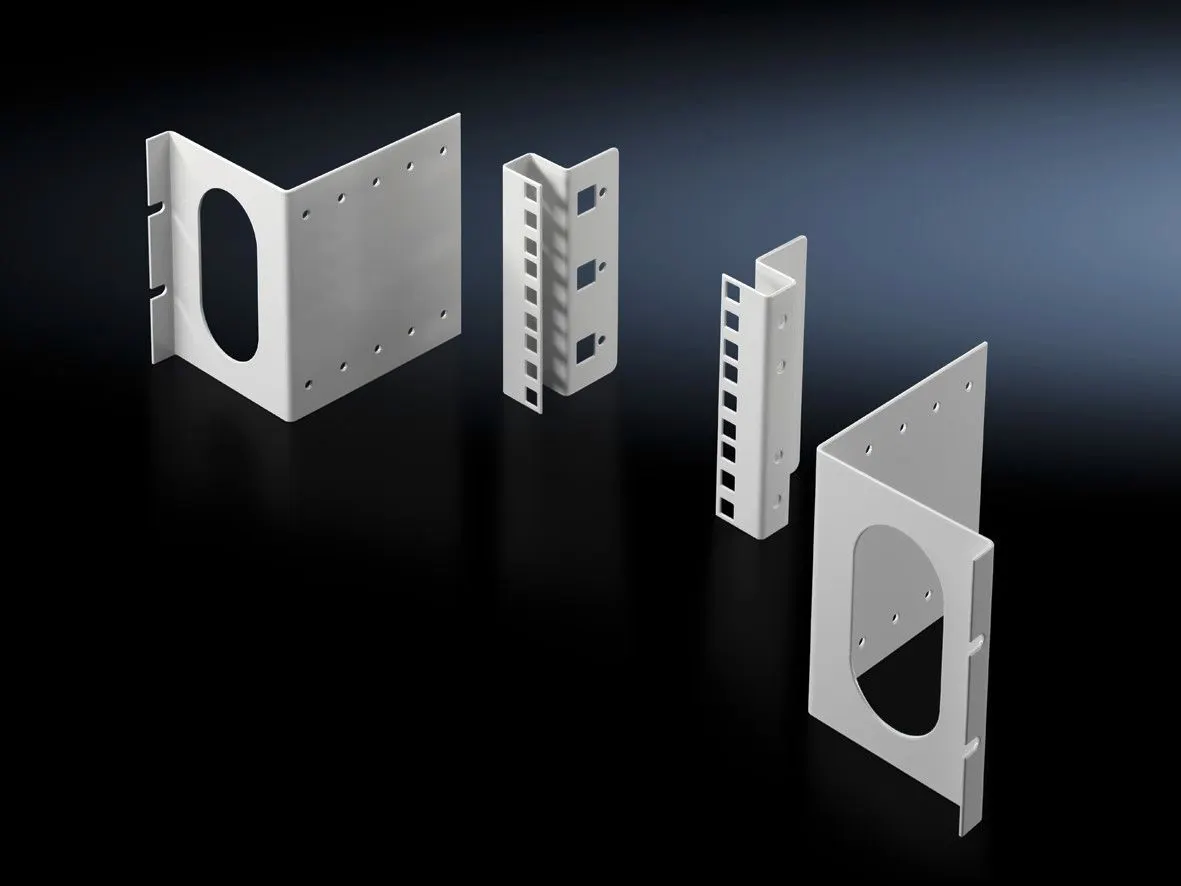

Rittal 7246100 DK Adaptor kit - 3U, 800 mm width
Part Number: 7246100
Quick Summary
Rittal 7246100 DK Adaptor kit enables mounting 19-inch components inside standard enclosures. This solution addresses rear-mounting challenges by preserving baying space for patch panels while maintaining precise alignment. In line with industry classifications ETIM 9 EC002625 and ECLASS 8.0 27189234, the adaptor supports interoperable procurement workflows, even though explicit CE, SIL, or IP ratings are not listed in the provided data. With a 3 U height, a 482.6 mm installation depth, and an 800 mm width, it delivers scalable, repeatable mounting for 19-inch assemblies across 800 mm wide enclosures. For engineers and buyers, this enables faster project kickoff, lower risk of misfit components, and clearer BOMs across multiple enclosure builds.
Product Information
Extended Description
7246100 Rittal: DK Adaptor kit, 3 U, For W: 800 mm
Article number
DK 7246.100
Design
Installation position, centre
Product description
For fastening individual 482.6 mm (19") components, or as an additional mounting facility at the rear of the enclosure. The mounting level in the adaptor angle can be adjusted in 25 mm increments by up to 100 mm in the depth, leaving sufficient space for baying where patch panels or splicing boxes are used. Attachment is on the inner mounting level of the frame section or a suitable chassis in the enclosure depth.
Material
Sheet steel
Colour
RAL 7035
Units
3 U
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Packs of
2 pc(s).
Weight/pack
1.304 kg
PCF per pack (cradle-to-gate)
5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177186798
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
DK Adaptor kit, 3 U, For W: 800 mm
The DK Adaptor kit provides adjustable mounting capability from the inner frame level, enabling 25 mm incremental depth shifts up to 100 mm. Business impact: improved flexibility for side-by-side baying and patch panel integration, reducing rework and allowing quick reconfiguration for changing rack needs. Application: rear mounting inside standard 800 mm wide enclosures, simplifying cable management while keeping 19-inch equipment correctly spaced. The kit attaches on the inner mounting level of the frame or suitable chassis, which streamlines installation and minimizes intrusion into the enclosure depth. This reduces installation time and improves alignment accuracy for 19-inch components. Material consistency with sheet steel and RAL 7035 finish ensures durable, uniform appearance across fleet deployments. The 3 U unit and defined 482.6 mm depth support standard 19-inch equipment, while the 800 mm width aligns with common enclosure footprints, enabling predictable component placement. Packaging consists of two packs per order, each weight 1.304 kg, supporting efficient logistics and BOM planning. Sustainability metrics are favorable, with a PCF of 5 kg CO2 eq per pack (Category B), aiding greener procurement decisions. ETIM 9 EC002625 and ECLASS 8.0 27189234 compatibility further streamline cataloging and cross-reference with your MRP systems. Overall, the adaptor kit enables faster commissioning, consistent mounting standards, and reduced total cost of ownership across projects.
Get a Quick Quote for a Rittal 7246100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7246100?
Enquire Now
FAQs
Begin by confirming enclosure compatibility with 19" components and the 800 mm width. Mount the adaptor to the inner frame level or suitable chassis, then align the 482.6 mm installation depth. Use the 25 mm incremental adjustments to position the mounting level within the depth range, ensuring space for baying and rear cable management. Secure with standard hardware and verify alignment with 19" components before finalizing.
Yes. The adaptor kit is designed for 19-inch (482.6 mm) components and provides a centre installation design that accommodates typical 3 U rack-mounted devices. The installation width matches 19" mounting rails, facilitating straightforward integration with common 800 mm wide enclosures and enabling consistent component alignment.
The adaptor kit is manufactured from sheet steel and finished in RAL 7035. This combination provides durable mechanical strength and a consistent, professional appearance across enclosure interiors, aiding in maintenance visibility and aesthetic uniformity in modular systems.
The kit is supplied in packs of two, with a weight of 1.304 kg per pack. Sustainability data indicate a cradle-to-gate PCF of 5 kg CO2 eq per pack (Category B). These details support efficient logistics, shipping planning, and environmental impact assessments for larger projects.
The DK Adaptor kit aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, which support cataloging and interoperability in procurement systems. The data provided does not list explicit CE, SIL, or IP certifications, so verify local regulatory requirements separately if CE marking or IP performance is essential for your application.
