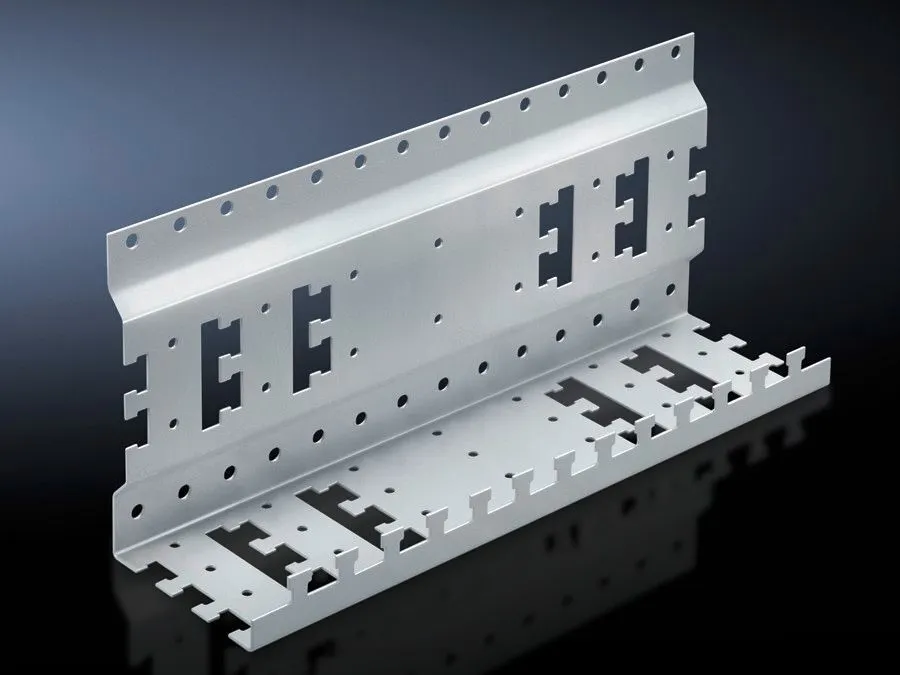

Rittal 7246500 DK Support - Zinc-plated Sheet Steel
Part Number: 7246500
Quick Summary
Rittal 7246500 DK Support securely attaches non-482.6 mm (19”) equipment inside enclosures. Engineers often struggle with cluttered side-space mounting and cable management in compact 19-inch cabinets. This accessory references ETIM 9 EC002620 and ECLASS 8.0 27189261 to support interoperability across products. With a 350×150×97 mm footprint and zinc-plated sheet steel construction, installation is quick and durable, reducing field adjustments. The design is optimized for mounting in the free space between the 482.6 mm level and the side panel on mounting angles or punched sections, using nylon tape or cable ties to secure cables and simplify routing. The assembly parts included streamline setup and ensure repeatable installations, delivering faster deployments and improved reliability for modems, routers, and power packs in industrial cabinets. This DK Support also supports cable routing within enclosure depth, helping maintain air flow and organization.
Product Information
Extended Description
7246500 Rittal: DK Support for small appliances, WHD: 350x150x97 mm
Article number
DK 7246.500
Product description
For secure attachment of non-482.6 mm (19")-conforming small appliances such as modems, power packs, routers etc. Angular support for mounting in the free space at the side between the 482.6 mm (19") level and the side panel on mounting angles or punched sections. Attachment of the components and connection cables can be achieved quickly and easily using nylon tape or cable ties. Also suitable for cable routing in the enclosure depth.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Dimensions
Width: 350 mm | Height: 150 mm | Depth: 97 mm
Packs of
1 pc(s).
Weight/pack
1.229 kg
PCF per pack (cradle-to-gate)
4.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177625464
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Support for small appliances, WHD: 350x150x97 mm
Feature side-mount capability aligns with the 482.6 mm (19”) framework while using mounting angles or punched sections. Business Impact this creates is a reliable, secure platform for small devices like modems, power packs, and routers, reducing vibration, loose connections, and field rework. Application in compact enclosures becomes straightforward, freeing rear space for cabling and improving airflow. Feature zinc-plated sheet steel construction offers corrosion resistance in industrial environments, translating to lower maintenance costs and longer service life. Business Impact is less downtime and extended equipment life, especially in harsh or humidity-prone installations. Application extends to cable routing within enclosure depth, enabling neater organization and easier diagnostics. Feature assembly parts included cuts installation time and minimizes on-site part hunting, producing faster deployments and consistent results. Business Impact is improved project throughput and predictable mounting across multiple cabinets. Application suits mounting in side panels and between levels, enhancing modularity for 19” equipment. Feature PCF per pack of 4.7 kg CO2 eq (Cat B) aligns with sustainability goals, reducing cradle-to-gate environmental impact while supporting compliant procurement.
Get a Quick Quote for a Rittal 7246500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7246500?
Enquire Now
FAQs
DK 7246.500 is designed for side mounting in 19-inch cabinets, fitting between the 482.6 mm levels and the side panel using mounting angles or punched sections. It accepts small appliances like modems and routers, with assembly parts included to simplify installation. This alignment reduces rear clearance conflicts and streamlines cabling routes.
Suitable devices are small, non-482.6 mm equipment such as modems, power packs, routers, and similar devices. The 350×150×97 mm footprint provides a compact mounting footprint, keeping rear cabling organized and ensuring secure attachment within standard 19-inch enclosures.
Yes. The product supports cable routing in the enclosure depth, and cables can be secured with nylon tape or cable ties. This helps reduce clutter, improves airflow, and simplifies future maintenance or diagnostics.
The DK 7246.500 references ETIM 9 EC002620 and ECLASS 8.0 27189261 for interoperability. While specific CE or IP ratings are not listed in the provided data, the zinc-plated sheet steel construction offers robust protection suitable for typical enclosure environments.
Each pack contains 1 piece and weighs 1.229 kg. The packaging includes assembly parts, enabling straightforward installation and consistent field performance across multiple cabinets.
