Rittal DK 7257.005 Cable Management Panel - 1U
Part Number: 7257005
Quick Summary
The Rittal DK 7257.005 Cable Management Panel enables horizontal patch cable organization in 1U rack installations. Engineers often wrestle with tangled cables and limited routing space, leading to longer maintenance windows and higher risk of signal interference. This solution aligns with ETIM EC000322 and ECLASS 27400604 classifications, and supports PCF Category B sustainability metrics. By combining durable steel construction, clear routing paths, and 1U compatibility, it reduces downtime and streamlines installation budgets. Customers in data centers and control cabinets benefit from repeatable cable layouts and faster fault isolation. The panel’s spray-finished body and zinc-plated rings offer durable, maintenance-friendly performance in industrial environments.
Product Information
Extended Description

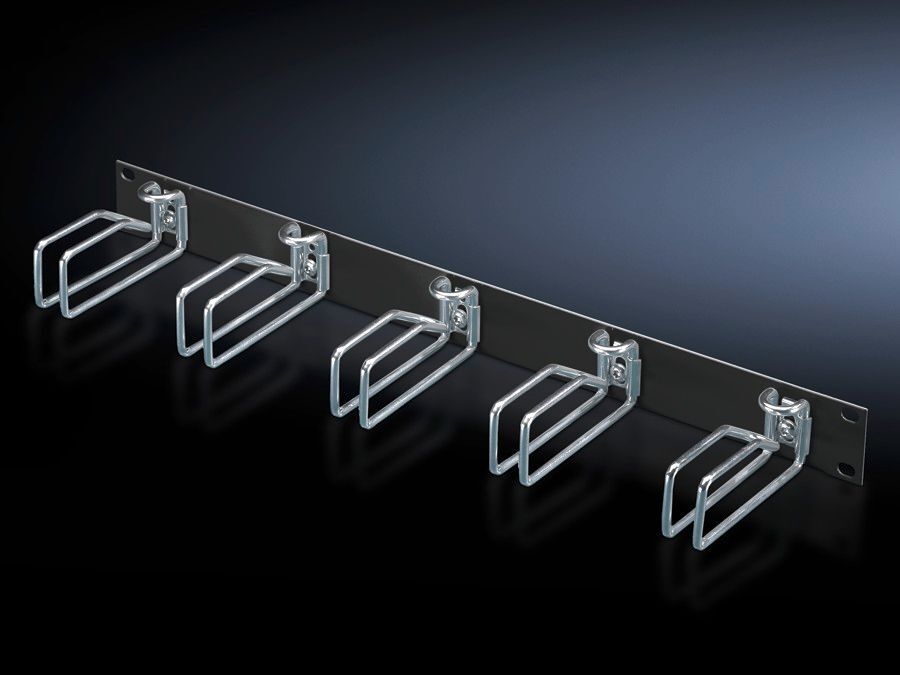

7257005 Rittal: DK Cable management panel, 1 U, with steel rings
Article number
DK 7257.005
Product description
For horizontal management of the patch cables, with 5 cable shunting rings.
Material
Panel: Sheet steel | Ring: Steel
Surface finish
Panel: Spray-finished | Ring: Zinc-plated
Colour
RALÂ 9005
Note
The sizes given are external dimensions.
Dimensions
Width:Â 482.6 mm
Units
1 U
Ring dimensions
Ring depth:Â 105 mm | Ring height:Â 43 mm
Packs of
1 pc(s).
Weight/pack
0.918 kg
PCF per pack (cradle-to-gate)
3.5Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177492080
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable management panel, 1 U, with steel rings
Feature: The 1U height with a 482.6 mm width fits standard 19-inch cabinets, enabling predictable integration in new or retrofit projects. Business Impact: Simplified mounting reduces installation time and helps maintain consistent cable density across cabinets. Application: Ideal for data centers and control rooms seeking repeatable, scalable cabling layouts. Feature: Five steel cable shunting rings provide dedicated routing points with ring depth of 105 mm and ring height of 43 mm. Business Impact: Improves patch cable organization, minimizes tangling, and eases fault isolation during maintenance. Application: Horizontal management in backplanes and distribution panels. Feature: Panel made from sheet steel with a spray-finished surface and rings that are zinc-plated. Business Impact: Delivers durable resistance to industrial environments and extended service life with minimal corrosion. Application: Indoor use in rugged facility cabinets. Feature: External dimensions are the stated sizes, ensuring accurate fit and ordering. Business Impact: Reduces out-of-spec procurement and returns, smoothing project timelines. Application: Precise integration into existing rack infrastructures. Feature: Pack weight 0.918 kg and PCF 3.5 kg CO2 eq (Cat B). Business Impact: Supports lighter shipping weight and sustainability accounting for green procurement. Application: Responsible sourcing and lifecycle assessment. These features collectively enable faster upgrades, lower maintenance overhead, and reliable performance in demanding environments.
Get a Quick Quote for a Rittal 7257005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7257005?
Enquire Now
FAQs
The DK 7257.005 is a 1U high, 482.6 mm wide panel designed for standard 19-inch racks and control cabinets. This footprint ensures easy integration with existing cabinet layouts and supports uniform cable density across enclosures, simplifying installation, replacements, and future scalability.
The panel includes five steel cable shunting rings with a ring depth of 105 mm and ring height of 43 mm, providing dedicated routing points for patch cables. This design minimizes tangling, improves accessibility for maintenance, and reduces cross-talk risk by clearly separating bundles in the horizontal plane.
Yes. The panel uses a sheet steel panel with a spray-finished surface and zinc-plated rings, offering durable resistance to typical indoor industrial conditions. Its RAL 9005 finish provides a robust appearance and visibility while maintaining compatibility with standard control cabinets and data-center enclosures.
Key details include the EAN 4028177492080, article number DK 7257.005, customs tariff 94039910, and packaging of 1 piece per pack. The item weighs 0.918 kg per pack, and its PCF is 3.5 kg CO2 eq (Cat B), supporting environmental accounting during sourcing.
Expect reduced maintenance time due to faster fault isolation and easier cable tracing, along with more predictable cable routing that minimizes damage during service. The 1U, standard-rack compatibility and durable finishes also lower replacement costs and extend cabinet usability, delivering measurable lifecycle value over equipment upgrades.
